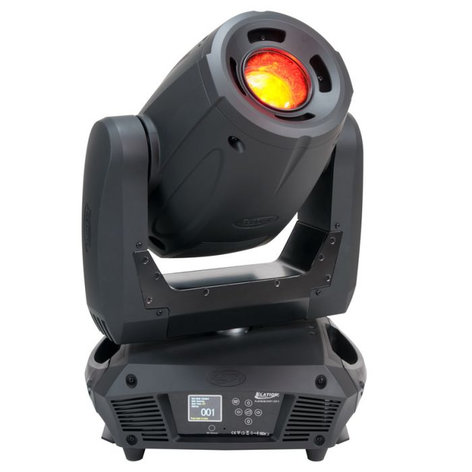

Elation Pro Lighting Platinum Spot LED II
240W DMX LED Fixture


The Elation Pro Lighting Platinum Spot LED II™ features a 135W Cool White LED engine, 17° beam, 8 dichroic colors plus white...
Learn More
Our Price: $1,600.00
List Price: $2,000.00
You save 20%!
Write the first review.
Elation Pro Lighting Platinum Spot LED II
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Elation Pro Lighting Platinum Spot LED II™ features a 135W Cool White LED engine, 17° beam, 8 dichroic colors plus white, 7 rotating, interchangeable, glass and 7 static metal gobos, frost filter hybrid wash effect, 3-facet rotating prism with 16 prism macros, motorized iris, focus, and dimming, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for TV and FILM.

Elation Pro Lighting Platinum Spot LED II Features:

  • 60,000 hour solid state LED lamp source
  • Extremely bright led up to 10368 lux 2.5m
  • 14 gobos 7x stat./ 7x rot.
  • Prism / iris / focus / 8 colors
  • Very quiet operation
  • Very low heat emission

Elation Pro Lighting Platinum Spot LED II Specifications:

  • 1 x LED 135w cold white led
  • 60,000 hour rated LED source
  • Up to 10368 lux 2.5m 16°
  • 16° fix beam angle
  • 1 color wheel with total 8 dichroic colors + white + uv
  • 2 gobo wheels = 14 gobos, all interchangeable quick out
  • First wheel: 7 indexable, interchangeable, rotating gobos plus open
  • Second wheel: 7 static gobos plus open
  • Gobo size: outside 27mm / image 22 mm
  • 3 facet, 5 facet, 3D rotating prism
  • Variable speed iris with macros 5 100%
  • Variable frost filter hybrid effect for wash
  • Dual flag mechanical dimming system
  • Variable speed strobe effect
  • Preset variable/random strobe and dimming pulse effects
  • Motor driven focus from near to far
  • Automatic pan / tilt position correction
  • Maximum pan movement 630° or 540° / 16 bit
  • Maximum tilt movement 265° / 16 bit
  • 16/14/20 channel usitt DMX 512 16 bit resolution
  • 3 phase motors for fast, accurate pan / tilt positioning
  • Vector mode with blackout MIB function
  • Battery powered and colored LCD display
  • Customizable DMX channel assignment
  • DMX, stand alone, master/slave, sound activated mode
  • DMX recorder and edit function integrated
  • 3-pin and 5-pin XLR serial input/output
  • Fan cooled: fans regulated automatic or DMX
  • 2 x 1/4 turn fastening omega clamps
  • Electronic power supply
  • Max. Power consumption: 230w
  • Voltage: ac 120v ~ 240v 50/60hz
  • Dimensions: 357x335x468mm
  • Weight: 16kg
