Countryman H6DW6TSL H6 Directional Headset Microphone with TA4F Connector, Tan

OUR PART #: H6DW6T-SL

Copied to clipboard

The Countryman model H6DW6TSL is an H6 headset, featuring a W6 directional capsule with sensitivity designed for loud speaking and vocals... ...Read more

Countryman H6DW6TSL H6 Directional Headset Microphone With TA4F Connector, Tan Image 1
Countryman H6DW6TSL H6 Directional Headset Microphone With TA4F Connector, Tan Image 2
Countryman H6DW6TSL H6 Directional Headset Microphone With TA4F Connector, Tan
Our Price: $598.00
List Price: $809.00
You save 26%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$17/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Countryman model H6DW6TSL is an H6 headset, featuring a W6 directional capsule with sensitivity designed for loud speaking and vocals, is made for use with Shure transmitters that feature the TA4F (Tiny QG) Connector, including: AXT100+, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, QLXD1, SLX1, UC1, ULX1, ULXD1, UR1, UR1M.

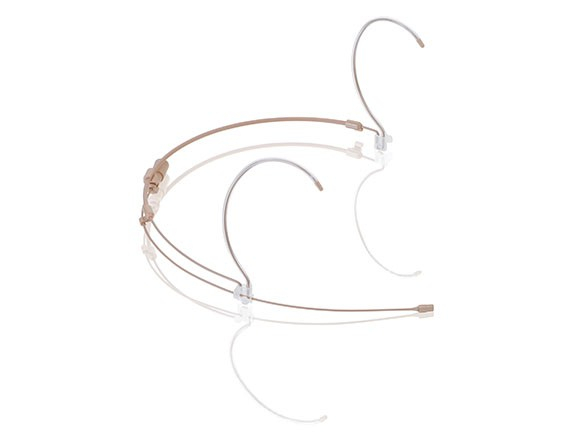

Countryman H6 Headset

The lowest profile headset microphone in the world, the H6 Headset combines the transparent sound quality and moisture-resistant capsule design of the E6 Earset with a comfortable, lightweight, and easily adjustable headframe. The H6 Headset is great for houses-of-worship, theaters, Broadcasters, and presenters. Available in both omnidirectional or directional versions, it features a sealed connector with exceptional moisture resistance, a slim and nearly indestructable cable, plus 3 sensitivity options.

Countryman H6DW6TSL Features:

  • Lowest profile headset mic in the world with 0.1" (2.5mm) diameter capsule
  • Exceptional audio quality, clear, and transparent
  • Comfortable and lightweight adjustable headframe
  • Interfaces to nearly all wireless transmitters, digital recorders, or XLR mic inputs with phantom power
  • Field replaceable detachable cables
  • Sealed moisture-resistant connector
  • High-strength 1.2mm diameter cable

Countryman H6DW6TSL Specifications:

  • Color: Tan
  • Frequency Response: 30 Hz to 15 kHz
  • Operating Current: 500 µA
  • Operating Voltage: 1 to 2 Volts
  • Power Supply Voltage:
    • +3V with 2.7 kOhm Load
    • +5V with 6.8 kOhm Load
    • +9V with 15 kOhm Load
  • Weight: 0.23 oz (6.5 grams)
  • Cable Break Strength: > 44 lbs (20 kg)
  • Sensitivity: 1.9 mV/Pascal
  • Equivalent Acoustic Noise: 29 dBA SPL
  • Overload Sound Level: 135 dB SPL
