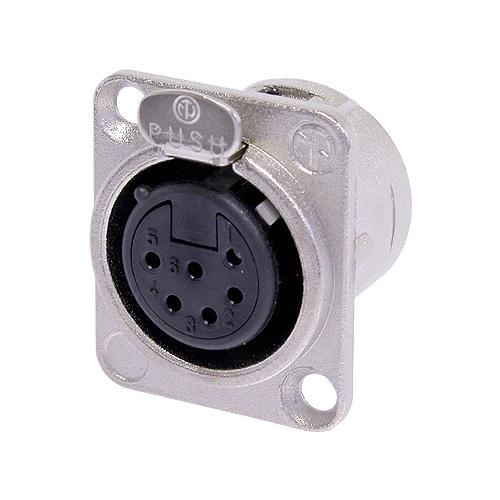

Neutrik NC6FSD-L-1 6-pin XLRF Panel Jack in Switchcraft Style

Neutrik's NC6FSD-L-1 is a 6-pole female receptacle with solder cups, Nickel housing, and silver contacts. It is equivalent to Switchcraft's pin layout. Universal D-size metal body XLR panel mount series. UL recognized component.

Features:

• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout
• Solder cups on 3 - 7 pole version

Specifications:

• Electrical :
  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 5 mO (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GO (initial)
  • Rated current per contact: 7,5 A
  • Rated voltage: 50 V
• Mechanical :
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wire size: max. 1.0 mm²
  • Wire size: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Chassis shape: D
  • Equivalent: Switchcraft pin arrangement
• Material :
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Stahl Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
• Environmental :
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
