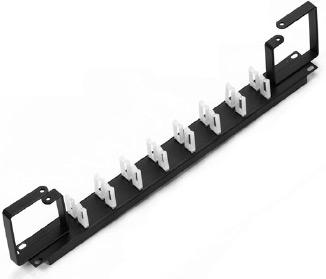

Lowell CMCD-1HV Cable Manager with Clips and D-rings

The 19" EIA rackmount panels provide solutions for organizing wire and cable in rackmount telecommunications, audio-visual and broadcast applications. The CMC-series cable manager is a 1U rackmount panel of 16-gauge steel, formed on two sides and finished in black powder epoxy paint. It includes plastic flex-clips that rotate individually for versatile horizontal or vertical wire management. Model No. CMCD-1HV also includes D-rings on each end (extending beyond 19"W) for routing medium to large cable bundles vertically along an open frame style data rack only (i.e. LRR-series). The D-rings (1.63"H or 3.25"H x 3.75"D) are formed from 0.125" thick steel and welded for stability.

Features:

• Made in the USA
• 1U panel made from 16-gauge steel with black powder epoxy finish
• Plastic flex-clips rotate individually
• Model No. CMCD-1HV includes 0.125" thick steel D-rings, welded for stability in vertical orientation. For use with openframe data racks only (LRR-series). Not for gangable or enclosed racks.

Specifications:

• Width: 19"
• Rack Units: 1
• Flex-Clips: 2 rows of 8
• D-rings: 2 vertical
