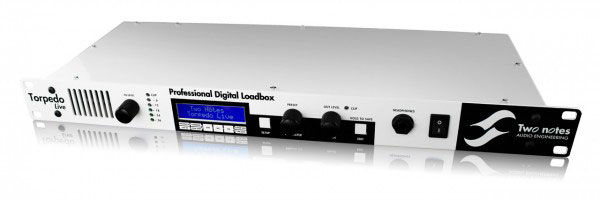

Two Notes Audio TORPEDO LIVE
Digital Loadbox with Speaker Simulation and Digital Miking, 100W RMS


Our Price: $995.00
List Price: $1,295.00
You save 23%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TORPEDO LIVE is a combination of an analog REACTIVE 100W RMS loadbox and a powerful 32-bit DSP. The Torpedo Live was directly inspired by the critically acclaimed Torpedo VB-101, the first-ever digital loadbox to have hit the market.

Want more focus? Get closer to the cone. Two Notes’ exclusive proprietary cabinet and microphone measurement technology, accurately emulates the sound and process of miking a guitar or bass cabinet in a professional recording studio.

Up to 32 cabs to choose from with Two Notes' ever growing cab collection (currently more than 45 cabs are available) in a single rack space unit.

For those playing with guitar preamps, Two Notes has included all the fantastic sounding tube power amp emulations originally developed for the Torpedo VM-202. Keep your setup simple, light and more versatile thanks to MIDI control.

8 carefully selected microphones ready to capture your best guitar riffs. Whether you need a classic dynamic, a sweet ribbon or a high fidelity condenser mic, you have them all inside the box.

Load up to 512 IR’s inside the unit (3rd party or your own files). The "Quick Preview" feature of the Torpedo Remote software (Mac/PC) allows you to browse your library on your computer while playing with the Torpedo LIVE.

Torpedo technology
Many parameters influence the sound of your guitar or bass rig when it comes to recording. Taking good care of the cabinet selection and miking will dramatically improve the sound of your takes. The Torpedo simulation reproduces the tiniest variations of a cabinet behavior such as frequency response and distortion (*). Move the microphone in the virtual studio room thanks to the Torpedo IR synthesis, control the phase with the Variphi (*): all the settings you need to achieve great recordings are here.
(*) VB-101, VM-202 and PI-101 only

High-quality electronic design
The best simulation is nothing without a perfectly designed analog and digital circuit. Two Notes focus on the whole signal chain, from your amp or preamp output to the PA, monitor, headphones or recorder to ensure the best performance. Guitar and bass players deserve studio quality gear !



  • Input impedance : 8 ohms fixed
  • Max input power : 100W RMS
  • Controlled ventilation and thermal security : amp and musician are perfectly safe


  • Power input
  • Speaker output
  • Unbalanced line input
  • Balanced line output
  • Front panel stereo headphone output
  • S/PDIF output (48/96 kHz)
  • MIDI Input
  • USB

Digital Audio

  • 24 bits / 96 kHz AD/DA convertors
  • S/N ratio : 100dB
  • 32 bits float internal processing
  • Latency = 3 ms

Power amp emulation

  • Connect your preamp or stompbox to your Torpedo Live, C.A.B. or PI-101. They embed our component-based tube power amp simulation. Simply choose the amp design, characteristics, and select the tube type.
  • Dimensions
    Width x depth x height : 19 x 7.5 x 1.7 (in.) / 483 x 189 x 44 (mm)
  • Weight
    4.4 lb (2 kg)
