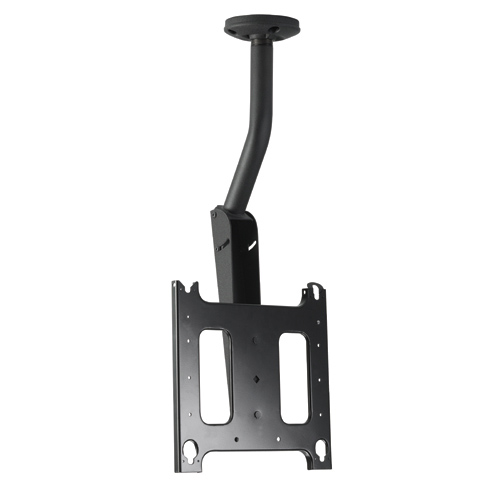

Chief Manufacturing PCM2242
Ceiling Mount, for Display

OUR PART #:

This ceiling mount uses a TV's natural center of gravity to provide a stable, durable installation.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

This ceiling mount uses a TV's natural center of gravity to provide a stable, durable installation.

Features:

  • Great for digital signage applications
  • Ceiling plate is required and must be ordered separately; vertical extension column may also be required for your installation
  • Centris Technology provides fingertip tilt for effortless screen adjustment
  • ClickConnect Technology provides simplified tool-free latching with an audible click
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Full line of accessories available to accommodate almost any type of ceiling
  • Through-pipe cabling can be accomplished with the appropriate accessory (see CMA330 and CMS115)
  • PAC140 Q-Clamp accessory included

Specifications:

  • Certifications:  UL Listed
  • Color:  Black
  • Manual Height Adjustment:  5
  • Mounting Pattern Compatibility (Universal Versions):  200 x 200mm - 862 x 517mm
  • Orientation:  Landscape, Portrait
  • Overall Dimensions (H x W x D):  34.4" x 16.3" x 6.2" (875 x 414 x 158mm)
  • Post-Installation Leveling (Roll):  Yes
  • Shipping Weight:  30.00 lbs
  • Tilt:  + 5┬░ , - 25┬░
  • Typical Screen Sizes:  42 - 60"
  • Weight Capacity:  200 lbs (90.7kg)
