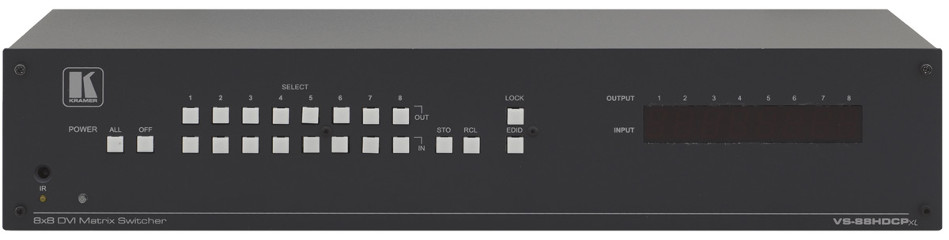

Kramer VS-88HDCPXL
8x8 HDCP Compliant DVI Matrix Switcher


The Kramer VS-88HDCPxl is a high-performance matrix switcher for DVI and HDMI signals on a DVI-D connector.
Learn More
Our Price: $3,596.00
List Price: $4,495.00
You save 20%!
Write the first review.
Kramer VS-88HDCPXL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Kramer VS-88HDCPxl is a high-performance matrix switcher for DVI and HDMI signals on a DVI-D connector. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Kramer VS-88HDCPxl Features:

  • Max. Data Rate:  6.75Gbps (2.25Gbps per graphic channel).
  • HDCP Compatible.
  • HDTV Compatible.
  • HDMI Support:  Deep Color, x.v.Color™, 3D Pass-Through, HDMI Compressed Audio Channels.
  • EDID PassThru:  Passes EDID signals from source to display.
  • Output Disconnect:  Each output.
  • Front Panel Control Lockout.
  • Memory Locations:  Stores multiple switches as presets to be recalled and executed when needed.
  • Flexible Control Options:  Front panel, IR remote, RS-232 (K-Router™ Windows®-based software is included), Ethernet (Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Worldwide Power Supply:  100-240V AC.
  • Standard 19” Rack Mount Size:  1U. Rack "ears" included.

Kramer VS-88HDCPxl Specifications:

  • Inputs: 8 HDMI connectors.
  • Outputs: 8 HDMI connectors.
  • Bandwidth: 6.75Gbps (2.25Gbps per graphic channel).
  • Compliance with HDMI Standard: Supports DVI and HDCP.
  • Resolution: Up to UXGA; 1080p.
  • Power Consumption: 100-240V AC, 50/60Hz, 33VA.
  • Controls: Front panel buttons, infrared remote control transmitter, RS-232, Ethernet.
  • Dimensions: 19" x 7" x 1U W, D, H, rack mountable.
  • Weight: 5.5 lbs (2.5 kg) approx.
  • Accessories: Power cord, IR transmitter, rack ”ears”.
