Tripp Lite B126-110 HDMI over CAT5/CAT6 Active Extender

OUR PART #: B126-110 MFR #: B126-110

Copied to clipboard

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. ...Read more

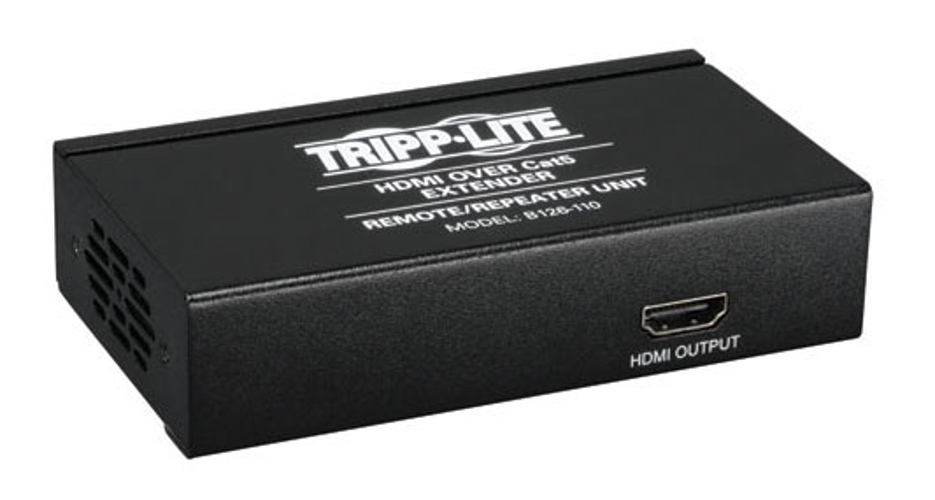

Tripp Lite B126-110 HDMI Over CAT5/CAT6 Active Extender Image 1
Tripp Lite B126-110 HDMI Over CAT5/CAT6 Active Extender Image 2
Tripp Lite B126-110 HDMI Over CAT5/CAT6 Active Extender
Our Price: $247.64
List Price: $313.60
You save 21%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included).

Tripp Lite B126-110 Features:

  • Insert into your Tripp Lite B126-Series HDMI overCat5 installation to increase the extension distance and/or add additionalmonitors
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite'sN202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect toHDMI source and monitor.
  • Connect up to three repeaters, with a receiver unitlocated at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for eachrepeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 3D signal can be extended up to 400 ft..
  • Features a built-in Equalization control foradjustment of the video image
  • Supports 24-bit True Color (8-bits per channel)
  • Compatible with both stereo audio and 7.1 channelsurround sound audio (7.1 channel surround sound signal will be Multi-Channelor PCM).
  • HDCP compatible
  • Mounting hardware is included that allows the B126-110to be rackmounted, wall mounted or pole mounted
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B126-110 Specifications:

  • Cable Type: HDMI
  • Display Style: Splitter
  • Shipping weight (lbs): 1.50
  • Unit Dimensions (HxWxD): 1.0" x 4.50" x 2.50"
  • Mounting accessories included: Yes
  • Color: Black
