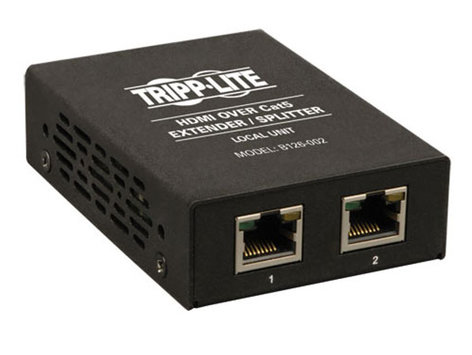

Tripp Lite B126-002
HDMI over Cat5 Extender/Splitter, 2-Port Local Transmitter Unit

OUR PART #  B126-002

Our Price: $154.70
List Price: $208.00
You save 26%!
In Stock

The Tripp Lite B126-002 transmits a 1080p (60Hz) signal to two monitors up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the B126-002 transmitter to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect a Tripp Lite B126-series receiver (not included) to each display using a Tripp Lite P568-Series HDMI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B126-002 using a single Cat5e/6 cable.

Tripp Lite B126-002 Features:

  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • Extends a 1080p (60Hz) signal up to 150 ft. when used with a B126-1A0 or B126-1A0-WP-1 active remote receiver unit.
  • Extends a 1080p (60Hz) signal up to 50 ft. when used with a B126-1P0 or B126-1P0-WP passive remote receiver unit.
  • Extends a 3D signal up to 125 ft. when used with an active remote receiver unit. A 3D signal cannot be extended using a passive remote receiver unit.
  • Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit.
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 active receiver), with a monitor at each location.
  • Extends a 1080p (60Hz) signal up to 125 ft., or a 3D signal up to 100 ft., from the B126-002 transmitter to the first repeater unit in the installation
  • Extends a 1080p (60Hz) signal up to an additional 125ft., or a 3D signal up to an additional 100 ft., from each repeater unit to the next unit in the installation
  • Supports 24-bit True Color (8-bits per channel)
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
  • HDCP compatible
  • Mounting hardware is included that allows the B126-002 to be rack mounted, wall mounted or pole mounted
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B126-002 Specifications:

  • Cable Type: HDMI
  • Display Style: Splitter
  • Physical:
    • Unit Dimensions (HxWxD): 1" x 2.5" x 3.6"
    • Mounting accessories included: Yes
    • Color: Black
  • Connections:
    • Connector A: (x2) RJ45(Female)
    • Connector B: HDMI (Female)

Tripp Lite B126-002
HDMI over Cat5 Extender/Splitter, 2-Port Local Transmitter Unit

OUR PART #  B126-002

Product Information:

The Tripp Lite B126-002 transmits a 1080p (60Hz) signal to two monitors up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the B126-002 transmitter to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect a Tripp Lite B126-series receiver (not included) to each display using a Tripp Lite P568-Series HDMI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B126-002 using a single Cat5e/6 cable.

Tripp Lite B126-002 Features:

  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • Extends a 1080p (60Hz) signal up to 150 ft. when used with a B126-1A0 or B126-1A0-WP-1 active remote receiver unit.
  • Extends a 1080p (60Hz) signal up to 50 ft. when used with a B126-1P0 or B126-1P0-WP passive remote receiver unit.
  • Extends a 3D signal up to 125 ft. when used with an active remote receiver unit. A 3D signal cannot be extended using a passive remote receiver unit.
  • Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit.
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 active receiver), with a monitor at each location.
  • Extends a 1080p (60Hz) signal up to 125 ft., or a 3D signal up to 100 ft., from the B126-002 transmitter to the first repeater unit in the installation
  • Extends a 1080p (60Hz) signal up to an additional 125ft., or a 3D signal up to an additional 100 ft., from each repeater unit to the next unit in the installation
  • Supports 24-bit True Color (8-bits per channel)
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
  • HDCP compatible
  • Mounting hardware is included that allows the B126-002 to be rack mounted, wall mounted or pole mounted
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B126-002 Specifications:

  • Cable Type: HDMI
  • Display Style: Splitter
  • Physical:
    • Unit Dimensions (HxWxD): 1" x 2.5" x 3.6"
    • Mounting accessories included: Yes
    • Color: Black
  • Connections:
    • Connector A: (x2) RJ45(Female)
    • Connector B: HDMI (Female)
