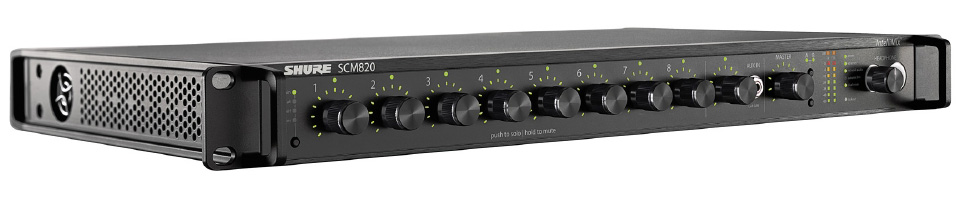

Shure SCM820-DAN
8 Ch Intellimix Digital Mixer with Dante RJ45

OUR PART #  SCM820-DAN

Our Price: $2,099.00
List Price: $3,124.00
You save 33%! (Low Price Guarantee)
In Stock

The Shure SCM820 is an 8-channel digital automatic mixer designed for use in speech applications, including sound reinforcement, broadcasting and audio recording. It uses patented Intellimix technology to dramatically improve audio quality in any application where multiple microphones are required.

Multiple I/O configurations and networking options ensure analog and digital connectivity between devices.

Features:

IntelliMix technology

  • Delivers seamless automatic mixing and reduced background noise through dynamic channel gating and attenuation
  • NAT (Noise Adaptive Threshold) continuously adjusts the activation threshold for opening a channel
  • Number of Open Microphones Attenuation (NOMA) determines the amount of gain attenuation for a mix output when the number of active microphones changes
  • Last Mic Lock-On (LMLO) keeps the most recently activated microphone open until another microphone is activated
  • MaxBus ensures that only one channel is opened per sound source, reducing comb filtering for clear and intelligible speech
  • IntelliMix Modes offer five different mixer mode presets of reliable automixing styles (Classic, Smooth, Extreme, Custom, or Manual) to quickly tailor the mix for a particular application

Enhanced I/O support for greater application flexibility and digital connectivity

  • DB25 or logic-enabled block connector models available, each with 8 inputs
  • Per-channel direct outputs allow the SCM820 to be used as an insert processor
  • Mix A and B outputs with selectable mic or line level connect to a sound reinforcement system, mixing console, or recording device
  • Dual mixer operation enables routing of independent automixes to the mix A and B outputs, allowing two entirely different mixes to result from the same set of inputs
  • Aux inputs on both the front and back panel easily connect to media players
  • 1/4" (6.35 mm) stereo headphone output for channel solo and mix monitoring

Comprehensive control

  • Channel control knobs allow quick adjustment of gain, limiter, and EQ settings, and solo/mute functions on input channels
  • Output mix controls and meters enable front-panel master gain and limiter control as well as signal monitoring
  • LED meter rings display input audio or IntelliMix gain levels for each channel
  • Browser-based control software delivers comprehensive software control, monitoring, routing, and configuration of all signals and settings and adds a parametric 8-band EQ

Advanced networking

  • Standard Ethernet or Dante™ digital networked audio configurations available
  • Dante-equipped models enable multi-channel audio networking over Ethernet
  • Dante upgrade card available for standard Ethernet models
  • Dante virtual soundcard license included to connect a computer to a Dante network for recording, playback, and internet calling between Dante-equipped devices
  • Link Dante-equipped SCM820 mixers to form large automixes of up to 12 units (96 channels of audio)
  • Control system compatible (AMX, Crestron)
