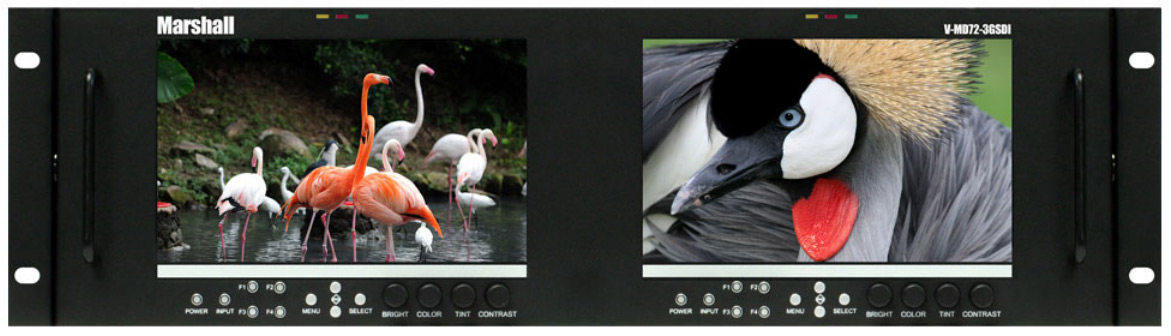

Marshall Electronics V-MD72-3GSDI
Dual 7" 3RU High Resolution LCD Rack Mount Monitor with 3G-SDI Modules and Loop-Through

OUR PART #:  V-MD72-3GSDI

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration.
Learn More
Our Price: $2,316.25
List Price: $2,725.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-MD72-3GSDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

The V-MD72-3GSDI offers two 800 x 480 LED-backlit LCDs in one single configuration, along with excellent viewing angles. The V-MD72-3GSDI feature list includes Status Display, False Color Filter, IMD (In-Monitor Display), Network Control, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, user-definable function buttons, and more. A variety of modules will become available including the availability of HDMI with loop-through, Fiber-Optic input/output modules, and more.

Marshall's MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD-SDI transmission input/output modules. These fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.

Specifications:

Display (Viewing Area) 7" x 2
Resolution (Pixels) 800 x 480
Aspect Ratio 16:10
Pixel Pitch (h x v) 0.1905mm x 0.1905mm
Brightness (in cd/m²) 450
Included Inputs 3G-SDI
Optional Input Modules HDMI, DVI, Dual HD-SDI, FIBER-OPTIC
Dimensions 18.9"W x 5.2"H x 1.2"D
Weight 5 lbs.
Power Consumption 3 Amp @ 12VDC
