Philips Color Kinetics ColorBlast 6
LED Fixture with 10° Beam Angle Frosted Glass Lens in Black

OUR PART #:  116-000026-03

High-performance ColorBlast® 6 LED fixtures generate rich, saturated colors and color-changing effects for a range of wall-washing and floodlighting applications.
Learn More
Similar Products

High-performance ColorBlast® 6 LED fixtures generate rich, saturated colors and color-changing effects for a range of wall-washing and floodlighting applications. Designed with the needs of lighting designers, architects, and retail window directors in mind, ColorBlast 6 can be used in both indoor and outdoor installations. High-intensity LEDs produce superior light output in a compact, low-profile housing. ColorBlast 6 also offers full pan and tilt rotation, flexible mounting options, two beam angles, and superior control through Philips or third-party DMX controllers.

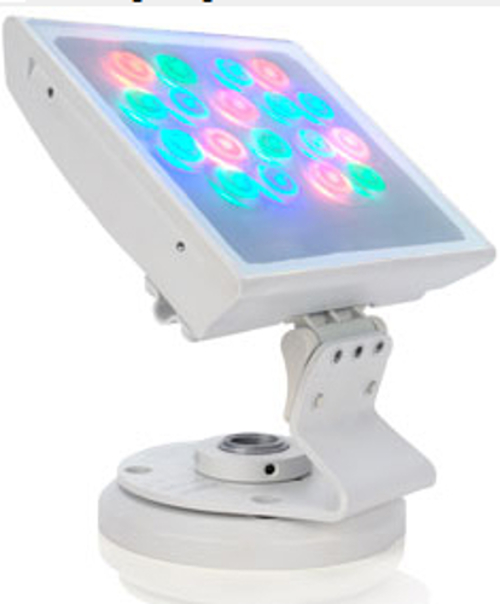

NOTE: Shown above in white, comes in BLACK.

Philips Color Kinetics ColorBlast 6 Features:

  • Outdoor rated – Fully sealed for maximum fixture life and IP66 rated for outdoor applications, ColorBlast 6 fixtures meet or exceed specifications foruse in wet locations.  Rugged, die-cast aluminum housing in black powder-coated finish.
  • Flexible mounting options – The versatile fixture canopy base can be mounted to a junction box or directly to a wall, ceiling, or floor. A liquid-tight cable fitting seals the canopy opening for use in damp or wet environments.
  • Versatile light positioning – The locking canopy base offers friction-free rotation of up to 350°, and 110° fixture tilting lets installers quickly aim the fixture without special tools.
  • Unified power and data cable – Each ColorBlast 6 fixture comes with a 60ft (18.3 m) unified power and data cable to minimize wiring. ColorBlast 6 is intended for use with PDS-150e and PDS-60 24V power / data supplies.
  • Additional options for controlling and dispersing light– Designed specifically for the family of ColorBlast fixtures by City Theatrical, Inc.,accessories include top hats, half top hats, egg crate louvers, barndoors, and horizontal and vertical spread lenses. (All accessories sold separately.)

Philips Color Kinetics ColorBlast 6 Specifications:

  • Output:
    • Beam Angle: 10°
    • Lumens*: 584
      *Lumen measurement complies with IES LM-79-08
    • LED Channels: Red / Green / Blue
    • MixingDistance: 6" (152 mm) to uniform light
    • Lumen Maintenance† 50,000+ hoursL50 @ 50° C (full output)
      †L50 = 50% maintenance of lumen output (when light output drops below 50% of initial output). Ambient temperature specified.
  • Electrical:
    • Input Voltage: 24 VDC via PDS-150e or PDS-60
    • Power Consumption: 25 W maximum at full output, steady state
  • Control:
    • Interface: PDS-150e 24V (DMX / Ethernet), PDS-60 24V (Pre-programmed or DMX / Ethernet)
    • Control System: Philips full range of controllers, including Light System Manager, iPlayer 3, and ColorDial Pro, or third-party DMX controllers
  • Dimensions (HxWxD): 8.4" x 6.3" x 5.1" (213 x 160 x 130 mm)
  • Weight: 3 lbs (1.4 kg)
  • Housing: Die-cast aluminium, black powder-coated finish
  • Lens: Frosted glass
  • Fixture Connections: 60 ft. (18.3 m) unified power/data cable
  • Temperature Ranges:
    • 40° – 122° F (-40° – 50° C) Operating
    • 4° –122° F (-20° – 50° C) Startup
    • 40° – 176° F (-40° – 80° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power/Data Supply:
    • PDS-150e 24V: 6
    • PDS-60 24V:2
  • Certification and Safety:
    • Certification: UL / cUL, CE,PSE
    • Environment: Dry / Damp / Wet Location, IP66
