Liberty AV Solutions 12-2C-EX+WHT

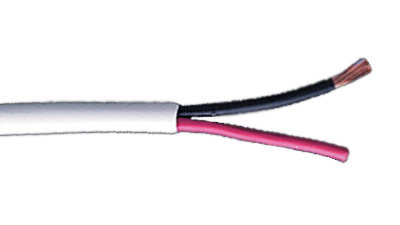

500' Extraflex 12AWG 2 Conductor Heavy Duty Speaker Cable

OUR PART #:  12-2C-EX+WHT

Liberty's ExtraFlex(TM) Line features a pressure extruded PVC Jacket for uniform roundness and very strong pulling capability.
Learn More
Our Price: $928.80
List Price: $1,032.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 12-2C-EX+WHT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Liberty's ExtraFlex(TM) Line features a pressure extruded PVC Jacket for uniform roundness and very strong pulling capability. Tough and resistant to cut through and scraping this product is very forgiving to install. The Speaker cable features Oxygen Free Copper and Semi-Rigid PVC insulation for better electrical performance and durability.  This product is rated CL3 and CMG FT4 and is available in 500 foot spools.

Speaker Cable, Liberty ExtraFlex Plus (EX+) Brand

Features:

  • 105 Strand Oxygen Free Copper Conductors
  • Semi-Rigid PVC Insulation
  • Twisted, unshielded
  • EZ-Strip paper tape binder with optional ripcord
  • Pressure Extruded PVC Jacket for optimal roundness
  • UL13 CL3 and CMG FT4 for in-wall applications
  • RoHS Compliant
  • 500 Foot Spool Standard

Specifications:

Summary 12/2C 105 STR OFC Twisted unshielded CL3 rated speaker cable
Revision Number 0
Last Revision 02/07/06
Print Legend EXTRAFLEX PLUS(TM) BY LIBERTY 12-2C-EX+ E190607-* (UL) 12 AWG OXYGEN FREE TYPE CL3 75°C --- C(UL) TYPE CMG FT4 60°C AUDIO ONLY
Conductor Count 2
Conductor Group Conductor
Conductor Total 2
Conductor Gauge 12 AWG
Strand Count 105
Strand Gauge 32 AWG
Conductor Composition OFC - Oxygen Free Copper
Conductor Diameter 0.093 Inches
Conductor Insulation Composition SR-PVC - Semi-Rigid Polyvinyl Chloride
Conductor Insulation Thickness 0.016 Inches
Conductor Insulation Diameter 0.125 Inches
Conductor Lay 3
Conductor Twist per Foot 4.00
Conductor Color Code Black, Red
Binder Composition Paper Tape
Binder Coverage 100%
Ripcord Present YES
Jacket Composition PPVC - Pressure extruded Polyvinyl Chloride
Jacket Thickness 0.036 Inches
Overall Diameter 0.327 Inches
Jacket Colors Teal, White
Weight 90
Pull Tension 180 lbs
Bend Radius 3.27
Conductor DCR 1.58
MUT Cap 34
Imped 60
VOP 55
Voltage Rate 300
AMP Rate 26 Amps at 25C
Temperature Rating 75 Degrees Celsius
NEC Rating CL3
NEC Art 725
CEC Rating CMG FT4 FOR AUDIO ONLY
ROHS Rate Yes
ROHS Date 3-Feb-2004
Static Print EXTRAFLEX PLUS(TM) BY LIBERTY 12-2C-EX+
Foot Marker YES
