Lowell LWTCR-3R
Recessed Wall-Mount Tilt-Out Rack with Controlled-Release

OUR PART #:  LWTCR-3R

The LWTCR is a tilt-out wall rack ideal for mounting amplifiers, small mixers, PA systems...
Learn More
Our Price: $792.11
List Price: $1,209.54
You save 35%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell LWTCR-3R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

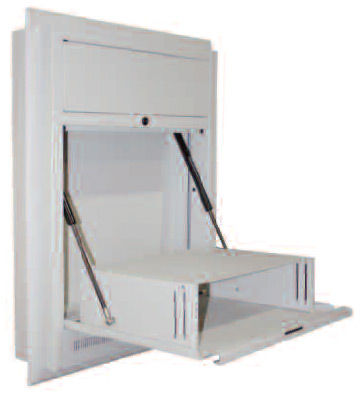

The LWTCR is a tilt-out wall rack ideal for mounting amplifiers, small mixers, PA systems, or consumer electronics in classrooms, boardrooms, healthcare facilities, institutional or house of worship applications.  Model No. LWTCR-3R includes trim plate. Measures 27.375"W x 35.063"H (requires minimum recessed depth of 3.983"). Projects 1.813" from wall.

Features:

  • Oil-filled dampers control the rate of descent when opening to the service position.
  • Bottom section has (3U) E.I.A. mounting rails to mount equipment up to 5.25"H x 15.3"D.
  • Separate top compartment provides additional 5.25"H (3U) x 4.3"D mounting area hidden behind pocket door. Hinge on right side swings open to service field-installed (19"W x 3U) panel (such as microphone connectors, phono jacks, or Decora-style controls like Lowell Model No. D8P-ID-3; order separately).
  • Backbox has rear keyholes on 16" centers and rear knockouts on 13" centers.
  • Removable laptop shelf
  • Top and bottom compartments secure with a single lock.
  • Load capacity: 50 lbs.
  • Vents at bottom and along integral formed handle
  • Knockouts (0.875") at top and bottom
  • Compound knockouts (1.5"-1.0") in rear
  • Includes factory-mounted 1-gang E.O. box in bottom center of backbox for convenient connection to AC power. There are no vents in this center area and a removable cover is included to conceal and protect wiring on the inside.
  • Includes 1" cable raceway on each side for wiring
  • Steel construction with neutral “Network Grey” finish
  • Convenience shelf supports a laptop computer.

Note: some electronics may require rack to be in fully-open (90-degree) service position to operate correctly.

Specifications:

  • Mounting Style:  recessed
  • Overall Width:  27.375"
  • Overal Height:  35.063"
  • Projection from Wall:  1.813"
