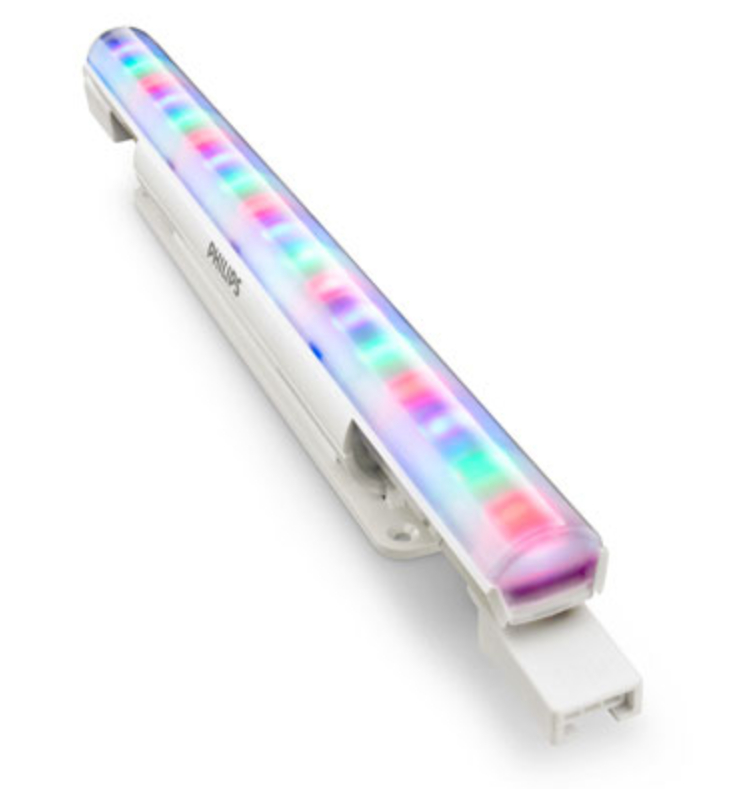

Philips Color Kinetics iColor Cove QLX
6" 100 x 40° Wide Beam LED Fixture

OUR PART #  101-000066-03

Our Price: $71.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Philips Color Kinetics' iColor Cove® QLX is a compact linear LED fixture that generates saturated color and dynamic effects in alcoves, accent areas, and other interior spaces.  An integrated rotating mount provides precise positioning, while optional mounting tracks allow quick project setup in linear applications.  Flexible mounting and positioning options let you install fixtures in virtually any desired configuration.

Philips Color Kinetics iColor Cove QLX Features:

  • Auto-addressing through Chromasic technology simplifies installation, addressing, and programming.  Chromasic integrates power, communication, and control to lower overall system cost.
  • iColor Cove QLX delivers color-changing illumination and lighting effects to alcoves, task and accent spaces, and other confined areas in a wide range of applications, from large-scale commercial installations to simpler residential installations.
  • iColor Cove QLX offers excellent mixing at 2" (51 mm), with no shadowing between fixtures in a long run.
  • iColor Cove QLX works seamlessly with the complete line of Philips Color Kinetics controllers, including iPlayer 3 and Light System Manager, as well as third-party DMX controllers.

Philips Color Kinetics iColor Cove QLX Specifications:

  • Beam Angle: 100º x 40º (wide)
  • Lumens*: 21
    *Lumen measurement complies with IES LM 79-08
  • LED Channels: Red / Green / Blue
  • Mixing Distance: 2" (51 mm) to uniform light
  • Lumen Maintenance**: 50,000 hours L50 @ 25° C (typical application)
    ** L50 = 50% maintenance oflumen output wihen light output drops below 50% of initial output. Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.
  • Input Voltage: 24 VDC via sPDS-60ca, PDS-60ca, and sPDS-480ca (all sold separately)
  • Power Consumption: 2 W maximum at full output, steady state
  • Interface:
    • sPDS-60ca 24V (DMX or Ethernet)
    • sPDS-480ca 24V(Ethernet)
    • PDS-60ca 24V (Pre-programmed, DMX, or Ethernet)
  • Control System: Philips full range of controllers, including Light System Manager, iPlayer 3, and Color Dial Pro, or third-party controllers
  • Dimensions (HxWxD): 1.2" x 6" x 1.4" (30 x 152 x 36 mm)
  • Weight: 85 g (3 oz)
  • Housing: Charcoal gray injection-molded plastic
  • Lens: Clear polycarbonate
  • Fixture Connections: Integral male / female connectors
  • Operating Temperature:
    • 4° – 122° F (-20° – 50° C) Operating
    • 4° –122° F (-20° – 50° C) Startup
  • -40° - 176° F (-20° - 80° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
    • PDS-60ca 24V: 30 total
    • sPDS-60ca 24V: 30 total
    • sPDS-480ca 24V: 240 total, 30 per power port
  • Certifications: UL / cUL, CE, PSE, C-Tick
  • Environment: Dry Location, IP20

Philips Color Kinetics iColor Cove QLX
6" 100 x 40° Wide Beam LED Fixture

OUR PART #  101-000066-03

Product Information:

Philips Color Kinetics' iColor Cove® QLX is a compact linear LED fixture that generates saturated color and dynamic effects in alcoves, accent areas, and other interior spaces.  An integrated rotating mount provides precise positioning, while optional mounting tracks allow quick project setup in linear applications.  Flexible mounting and positioning options let you install fixtures in virtually any desired configuration.

Philips Color Kinetics iColor Cove QLX Features:

  • Auto-addressing through Chromasic technology simplifies installation, addressing, and programming.  Chromasic integrates power, communication, and control to lower overall system cost.
  • iColor Cove QLX delivers color-changing illumination and lighting effects to alcoves, task and accent spaces, and other confined areas in a wide range of applications, from large-scale commercial installations to simpler residential installations.
  • iColor Cove QLX offers excellent mixing at 2" (51 mm), with no shadowing between fixtures in a long run.
  • iColor Cove QLX works seamlessly with the complete line of Philips Color Kinetics controllers, including iPlayer 3 and Light System Manager, as well as third-party DMX controllers.

Philips Color Kinetics iColor Cove QLX Specifications:

  • Beam Angle: 100º x 40º (wide)
  • Lumens*: 21
    *Lumen measurement complies with IES LM 79-08
  • LED Channels: Red / Green / Blue
  • Mixing Distance: 2" (51 mm) to uniform light
  • Lumen Maintenance**: 50,000 hours L50 @ 25° C (typical application)
    ** L50 = 50% maintenance oflumen output wihen light output drops below 50% of initial output. Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.
  • Input Voltage: 24 VDC via sPDS-60ca, PDS-60ca, and sPDS-480ca (all sold separately)
  • Power Consumption: 2 W maximum at full output, steady state
  • Interface:
    • sPDS-60ca 24V (DMX or Ethernet)
    • sPDS-480ca 24V(Ethernet)
    • PDS-60ca 24V (Pre-programmed, DMX, or Ethernet)
  • Control System: Philips full range of controllers, including Light System Manager, iPlayer 3, and Color Dial Pro, or third-party controllers
  • Dimensions (HxWxD): 1.2" x 6" x 1.4" (30 x 152 x 36 mm)
  • Weight: 85 g (3 oz)
  • Housing: Charcoal gray injection-molded plastic
  • Lens: Clear polycarbonate
  • Fixture Connections: Integral male / female connectors
  • Operating Temperature:
    • 4° – 122° F (-20° – 50° C) Operating
    • 4° –122° F (-20° – 50° C) Startup
  • -40° - 176° F (-20° - 80° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
    • PDS-60ca 24V: 30 total
    • sPDS-60ca 24V: 30 total
    • sPDS-480ca 24V: 240 total, 30 per power port
  • Certifications: UL / cUL, CE, PSE, C-Tick
  • Environment: Dry Location, IP20
