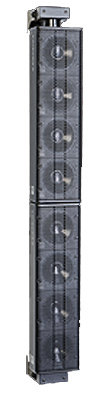

HK Audio E 435 Elements Install Kit
4x 3.5" 150W Passive Mid/High Unit Wall-Mount Array


The HK Audio E 435 Elements Install Kit is designed to facilitate simple and inconspicuous installation.
Learn More
Our Price: $899.99
List Price: $1,260.00
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


HK Audio E 435 Elements Install Kit
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HK Audio E 435 Elements Install Kit is designed to facilitate simple and inconspicuous installation.  It consists of two modified E 435 mid/ high units, including mounting yokes.  Up to six mid/high units (including the Wall-mount Kit) may be combined.

You can adjust an Elements system on mounting yokes 180° horizontally and fix it in place quickly and easily using the two included hex-head screws.

HK Audio E 435 Elements Install Kit Specifications:

  • Power-handling nominal (RMS): 150 W RMS @ 16 Ohms
  • Continous power into 4 ohms: 600W Class D @ 4 Ohms
  • Frequency response: -10 dB 140 Hz – 20 kHz, via active system filter
  • Nominal impedance: 16 Ohms
  • Sensitivity: HF, 1W/1m 97 dB
  • Active protection circuits: RMS limiter, subsonic filter; DC, load, & thermal (temp.- controlled fan)
  • Input Sensitivity: + 4 dBu / -10 dBu (switchable)
  • Connections: 1x XLR Combo In, 1x XLR Through, 1x Speakon Parallel Out
  • Speaker: 4x 3.5" broadband
  • Directivity: 70° horizontal
  • Crossover frequency: 140 Hz, 12 dB/oct.
  • Dimensions: 11cm W x 85 cm H x 13-17 cm D (incl. mounting brackets)
  • Weight: 13.2 lbs (6 kg)
