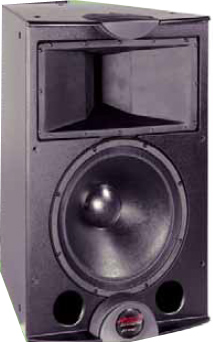

Apogee Sound (Bogen) AFI-8
15" Passive Installation Loundspeaker

OUR PART #:  AFI-8

The Apogee Sound AFI-8 is a fully arrayable loudspeaker capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate full bandwidth sound.
Learn More
Our Price: $1,187.28
List Price: $1,494.65
You save 21%!
Write the first review.
Apogee Sound (Bogen) AFI-8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Apogee Sound AFI-8 is a fully arrayable loudspeaker capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate full bandwidth sound. Available with a 60° x 40°, or 90° x 40°, high frequency horn patterns insuring that the AFI-8 works flawlessly in any room configuration. A bi-amplified version is also available.

Apogee Sound AFI-8 Specifications:

  • Format: Passive/Two-way
  • Drivers:
    • LF: 15" (381mm) driver
    • HF: 3" (76mm) voice coil, 2" (51mm) driver exit
  • Dispersion: H: 60° x V: 40°
  • Frequency Response (1m on axis): 46 Hz to 20 kHz +/- 3dB
  • Max. SPL (@1m): 124 dB cont./130 dB peak
  • PTML (Peak Transient Mechanical Limit): 141 dB; AFI-8B: 142 dB
  • Sensitivity (1W @1m): 98 dB SPL/100 Hz to 4 kHz
    • HF: 104 dBspl/900 Hz to 5 kHz
  • Nominal Impedance: 8O, each driver
  • Max. Power Handling (cont./peak): 400 W cont./1600 W peak
    • HF: 150 W cont./600 W peak
  • Dimensions:
    • Front: 20.25" (515mm) W x 30.25" (769mm) H
    • Rear: 13.3" (338mm) W x 30.25" (769mm) H
    • Depth: 15.1" (384mm)
  • Weight: 77 lb. (35 kg)
