Switchcraft TTP96K1FNX
1RU, 2X48 Bantam TT Patchbay Kit

OUR PART #  TTP96K1FNX

Our Price: $344.54
List Price: $551.25
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

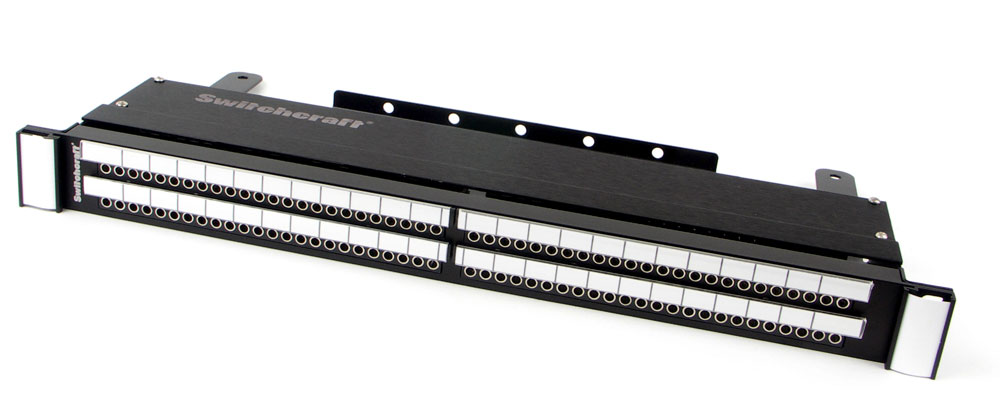

NOTE: The image show above is for illustrative purposes and may not reflect the same specifications as this model.

The TTP96K1FNX is a 1RU, 2X48 Bantam TT Patch Kit Bay, Solder Terminals - Full Normals Brought Out.

All the high quality features of our standard 96 point solder lug TT patchbays plus a semi-enclosed metal chassis that protects the jacks and can easily be removed for installation and modification.

Specifications:

Jacks

  • Frame: Nickel-plated steel
  • Bushing: Nickel-plated brass
  • Tip, Ring and Shunt Springs: Nickel silver with welded contacts
  • Assembly Screws: Nickel-plated steel
  • Welded Contacts: Gold alloy

Panel

  • Front Channel: Black anodized aluminum
  • Frame: C.R.S. black epoxy painted
  • Designation Strips: Black polycarbonate 94V-0
  • Designation Strip Covers: Clear polycarbonate
  • Jack Inserts: Thermoplastic polyester

Mechanical

  • Life: 30,000 cycles
  • Insertion Force: 7 lbs. maximum
  • Withdrawal Force: 1 lb. minimum
  • Operating: 0°C to +50°C

Electrical

  • Contact Resistance: 30 milliohms maximum initial
  • Insulation Resistance: 10,000 megohms maximum
  • Dielectric Withstanding Voltage: 500V at 60 Hz AC
  • Working Voltage: 140 VDC maximum
  • Current Rating: 100 milliamps
