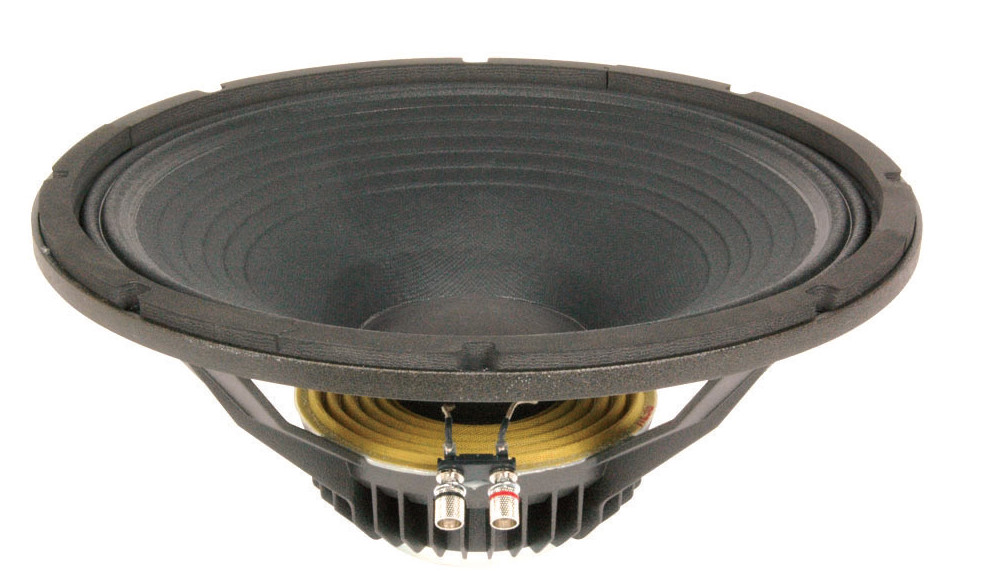

Eminence Speaker KAPPALITE 3015
15" Speaker
OUR PART #: KAPPALITE 3015
Recommended for vented professional audio enclosures for full-range or as mids.
For Parts Assistance, call 800-356-5844 and press "3" or email parts@fullcompass.com
Similar Products
-
Mackie
0027377-00
$172.80 -
JBL
363679-004X
$356.76 -
Yamaha
WD866201
$241.95 -
Electro-Voice
F.01U.174.479
$259.95 -
QSC
XD-000005-00
$151.89 -
Telex
F.01U.110.452
$69.79 -
Mackie
2036314
$353.78 -
JBL
363679-005X
$353.09 -
JBL
124-67001-01X
$112.98 -
Electro-Voice
F.01U.277.658
$299.95 -
Yamaha
WG830301
$430.40 -
JBL
361549-001X
$170.00 -
Sony
426519601
$10.68 -
Yamaha
WG830401
$394.57 -
Electro-Voice
F.01U.174.472
$135.00 -
Avid
9750-56442-00
$40.19 -
JBL
363858-001X
$46.48 -
Alto Professional
HG00602
$28.95 -
Behringer
Q05-A2E01-09453
$109.52 -
Electro-Voice
F.01U.275.618
$467.78 -
Behringer
Q04-AEA00-77000
$118.37 -
Shure
65BA8451
$11.55 -
Avid
4000-32472-00
$271.86 -
Mackie
0015276
$132.58 -
KRK
AMPK00053
$104.15 -
Alto Professional
HK12819
$110.55 -
Electro-Voice
F.01U.286.102
$224.24 -
Electro-Voice
F.01U.278.395
$249.95 -
Electro-Voice
F.01U.286.103
$249.95 -
Electro-Voice
F.01U.174.478
$275.00 -
Electro-Voice
F.01U.174.480
$259.95 -
Mackie
0021521-02
$148.80 -
Yamaha
ZM682700
$41.60 -
Mackie
2046526-00
$262.50 -
QSC
SP-000184-00
$132.00 -
EAW-Eastern Acoustic Wrks
804031
$298.23 -
JBL
140296-6JBL
$237.51 -
Mackie
0021521-04-B
$129.95 -
Beyerdynamic
907.003
$27.95 -
Tannoy
7900 0920
$93.31 -
QSC
WC-000361-GP
$20.85 -
Mackie
2038303
$115.20 -
JBL
D8R2408
$59.53 -
QSC
SP-000182-TS
$77.20 -
Sony
2-115-668-03
$9.99 -
Yamaha
WZ608200
$106.56 -
Mackie
0033092
$452.40 -
KRK
AMPK00055
$183.99 -
Telex
F.01U.154.848
$110.55 -
Avid
9750-57740-00
$40.19
Recommended for vented professional audio enclosures for full-range or as mids.
Specification
Nominal Basket Diameter 15", 381mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 450W
Music Program 900W
Resonance 45Hz
Usable Frequency Range 40Hz - 4kHz
Sensitivity*** 100.8dB
Magnet Weight 11 oz.
Gap Height 0.36", 9.27mm
Voice Coil Diameter 3", 76.2mm
Mounting Information
Recommended Enclosure Volume
Sealed N/a
Vented 51-144 liters / 1.8-5.1 cu.ft.
Driver Volume Displaced 155.2 cu.in. / 2.54 liters
Overall Diameter 15.32", 389.1mm
Baffle Hole Diameter 14", 356.4mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.8", 173mm
Net Weight 7.9 lbs, 3.6 kg
