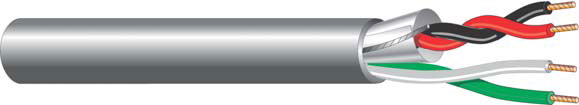

West Penn 356GY0500 500' 4-Conductor Shielded/Unshielded Audio Cable, Gray

This 18 gauge, 4 conductor wire is designed for indoor applications like intercom, security, sound, audio, background music and power limited control circuits.

Specifications

• Conductor: 20, 18 AWG Bare Copper
• Stranding: 7x28, 7x26
• Insulation Material: PVC
• Insulation Thickness: 0.010" Nom.
• Number of Conductors: 4 (2 shielded, 2 unshielded)
• Shield: 100% Aluminum Polyester Foil
• Drain: Drain wire on the outside of the shield, Stranded Tinned Copper
• Jacket Material: PVC
• Jacket Thickness: 0.015" Nom.
• Overall Cable Diameter: 0.200" Nom.
• Approximate Cable Weight: 42.4lbs/1M' Nom.
• Flame Rating: UL 1666 Riser Flame Test
• Temperature Rating: -4°F to 140°F
• Operating Voltage: 300V RMS
• Max. Capacitance Between Conductors @ 1kHz: 60pf/ft Nom.
• Capacitance Between Conductors to Shield @ 1kHz: 108 pf/ft Nom.
• DC Resistance per Conductor @ 68°F: 10.5, 6.6Ohms/1M' Nom.
• Insulation Colors: Shielded; Black, Red / Unshielded; White, Green
• Jacket Color: Gray
• RoHS Compliant: Yes
