Kaltman Creations HF60105
Spectran Handheld RF Analyzer (1MHz-9.4GHz)

OUR PART #:  HF60105

Spectran RF Spectrum Analyzers are sold in complete systems that include the analyzer, both Omni & LOG Periodic antennas, PC software...
Learn More
Our Price: $3,676.26
List Price: $3,998.00
You save 8%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kaltman Creations HF60105
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Spectran RF Spectrum Analyzers are sold in complete systems that include the analyzer, both Omni & LOG Periodic antennas, PC software, USB cable, power adapter/charger, mini-tripod, and carrying case, plus a manufacturer-offered 10 year warranty.

Kaltman Creations has pre-configured the analyzers' 10 Hot Keys to address the more popular North America RF bands: Wi-Fi, Industrial Remotes, Wireless Microphone, Business & Emergency Two-Way, Assisted Listening, Telco / Cellular, Intercom, and Radio/TV Broadcast.  The end user can also reprogram the Hot Keys as they see fit plus manually setup any frequency sweep range they wish.

Features:

  • 1MHz – 9.4GHz
  • Peak Power Detector – 10GHz (Opt)
  • Level Min -120dbm
  • Level Max +10dbm (+30dbm Opt)
  • Attenuation "Auto", 0, 10, 20, 30dB
  • Filter Bandwidth Min 3KHz
  • Filter Bandwidth Max 50MHz
  • 0.5PPM Stability
  • Accuracy +/- 2dB
  • Real-time PC Analysis
  • Unlimited Marker Points
  • Peak, RMS and Hold Functions
  • Internal & PC Logging

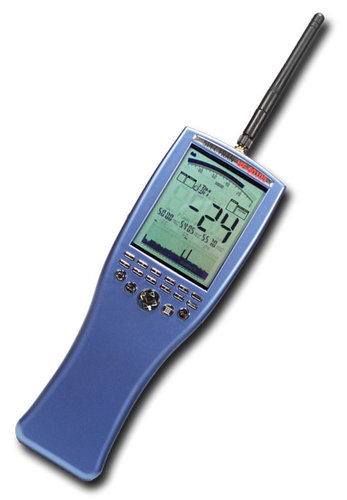

Spectran Analyzers feature a lightweight, sleek design with a large LCD display.  There is a DC power jack to externally power and to charge the unit, an audio-output jack, a Jog Dial for cursor positioning and Zoom functions, a USB port for PC interface, and an SMA RF input connector.  Pre-programmed Hot Keys, menu access, and arrow navigation keys are just a few of the extensive front panel controls.

By initializing the jog dial you can position the cursor anywhere within the viewed frequency spectrum. The cursor position is readout in both frequency and level. By clicking the Jog Dial, you are able to Zoom-in on the cursors position (essentially decreasing the span) all the way down to the maximum resolution. This allows you to isolate unused frequencies ranges, measure the total bandwidth of a given frequency, view inter-modulation and aliasing, and of course have a detailed analysis of occupied RF areas.

Included with every Spectran RF Spectrum Analyzer is PC software. A powerful feature of the software allows you to repeatably zoom in and out through the use of click & drag highlighting techniques. You can also click on any point on the display for an instant reading of the frequency and values. The PC software also provides for data logging, instant screen shot capture, and enhanced graphical display viewing.
