Quam SOLUTION 3
2x C10FX/BU/2WS Ceiling Speakers, 2x ERD8U Back Boxes, 2x SSB-6 Support Bridges, with QMount Brackets

OUR PART #:  SOLUTION-3

Quam's SOLUTION 3 is a complete speaker/transformer/designer baffle solution for ceiling installations.  Each package includes two (2) C10FX/BU/2WS, the 8C10FEPAX - 8" O.D.
Learn More
Our Price: $100.79
List Price: $146.92
You save 31%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Quam SOLUTION 3
Qty:
In Stock
Similar Products

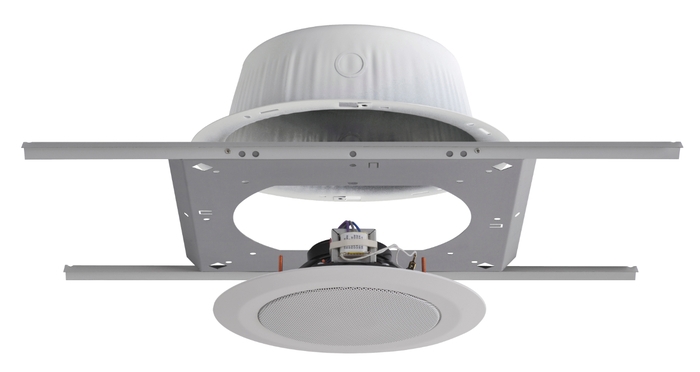

Quam's SOLUTION 3 is a complete speaker/transformer/designer baffle solution for ceiling installations.  Each package includes two (2) C10FX/BU/2WS, the 8C10FEPAX - 8" O.D. foam surround, dual-cone speaker with a TBLU - 5W-25/70V transformer mounted on a BR8-2WS designer baffle.

Ceiling Tile Installation: Use ERD8U back boxes and SSB-6 tile support bridges

Hard Ceiling Install Option: Simply install the included QMount Bracket accessory

NOTE: Ships as a complete pair in one carton

Intended Use:

  • Indoor environment
  • Installation: Downward-firing position in a 24” wide drop-tile ceiling
  • Program Material: Paging, signal tones, and background music

Audio Specifications:

  • Average Sensitivity: 95 dB SPL, 1W/ 1M
  • Loudspeaker Power Rating: 20W RMS, EIA 426A Standard
  • Calculated Output: 105dB SPL, 10W/ 1M
  • Magnet Type & Weight: BeFe Ceramic, 10 oz. Nominal
  • Frequency Response: 40Hz - 18 kHz EIA 426A Standard
  • Nominal Coverage Angle: 100° Included Angle, -6 dB / 2 kHz, Half space
  • Audio Connection: 7" color-coded pigtails, pre-cut

System Components:

  • Loudspeaker: 8C10FEPAX
  • Transformer: 25/70V 5W-5 tap Color Coded Leads (5W, 2.5W, 1.25W, 0.63W, 0.31W)
  • Baffle: BR8-2WS
  • Back Box: ERD8U
  • Hard Ceiling Brackets: QMount
