Radial Engineering StageBug SB-5 Compact Stereo Laptop Direct Box

OUR PART #: STAGEBUG-SB5-LAPTOP MFR #: R800 0150

Copied to clipboard

The StageBug SB-5 is a compact stereo direct box designed to connect laptop computers, smartphones, tablets... ...Read more

Radial Engineering StageBug SB-5 Compact Stereo Laptop Direct Box Image 1
Radial Engineering StageBug SB-5 Compact Stereo Laptop Direct Box Image 2
Radial Engineering StageBug SB-5 Compact Stereo Laptop Direct Box Image 3
Radial Engineering StageBug SB-5 Compact Stereo Laptop Direct Box Image 4
Radial Engineering StageBug SB-5 Compact Stereo Laptop Direct Box
Our Price: $119.99
List Price: $144.00
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

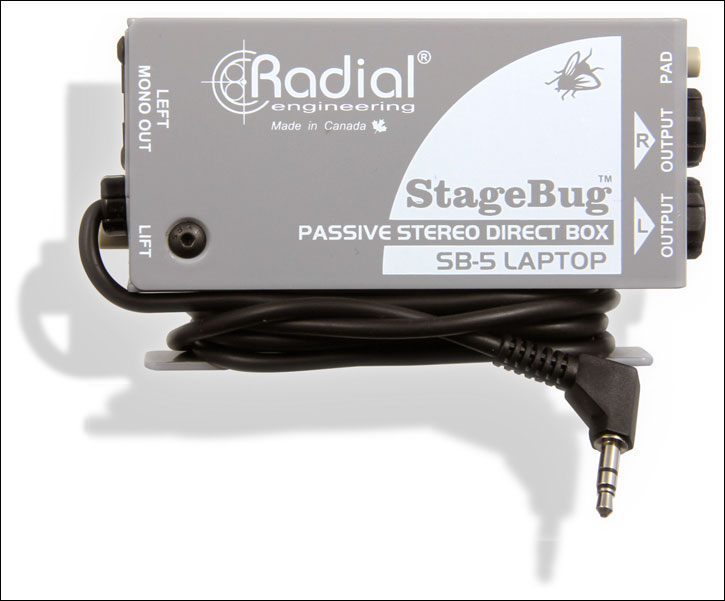

The StageBug SB-5 is a compact stereo direct box designed to connect laptop computers, smartphones, tablets, or any mobile device to pro audio equipment and PA systems.

It has an easy-to-use professional interface, using a built-in cable and 3.5mm stereo plug to connect any mobile playback device (like your laptop, smartphone, or tablet) to a mixer or PA system. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. It provides the option of stereo or mono output; two 1/4" TRS output send separate left and right signals while the XLR out give you a mono signal for saving room on your mixer. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources.

Features

  • Cable with 3.5mm stereo plug to connect to devices
  • Transformer isolation eliminates hum and buzz
  • Plug-and-play, easy-to-use feature set
  • Stereo or mono outputs
  • Ground lift and pad switches
  • Compact design fits in your laptop bag

Specifications

  • Audio Circuit Type: Passive, transformer based
  • # of Channels: 2
  • Frequency Response: 20 Hz to 20 kHz (±1 dB)
  • Dynamic Range: 100 dB
  • Total Harmonic Distortion: 0.01% @ 1 kHz
  • Phase Deviation:
    • 2° @ 100 Hz
    • 5° @ 50 Hz
  • Input Connector: 3.5mm (1/8") TRS
    • Input Impedance: 40 kΩ, unbalanced
    • Maximum Input: +20 dB
  • Output Connectors: 1/4" TRS, XLR
    • Output Impedance: 2.8 kΩ, balanced
  • Construction: 14-gauge steel chassis and outer shell
  • Power: Passive, no power required
  • Conditions: For use in dry locations only, 5-40°C
  • Cable Length: 1.5m (5')
  • Dimensions (H x W x D): 1.35" x 4.5" x 1.85"
  • Weight: 0.55 lbs (250 g)
