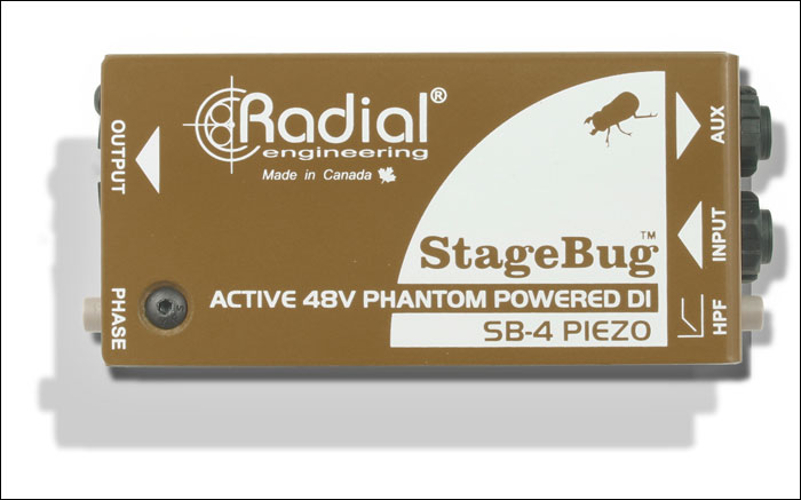

Radial Engineering SB-4 Piezo Compact Active DI For Piezo Pickups, Low-Cut Filter, 48V Phantom Image 1
Radial Engineering SB-4 Piezo Compact Active DI For Piezo Pickups, Low-Cut Filter, 48V Phantom Image 2
Radial Engineering SB-4 Piezo Compact Active DI For Piezo Pickups, Low-Cut Filter, 48V Phantom Image 3
Radial Engineering SB-4 Piezo Compact Active DI For Piezo Pickups, Low-Cut Filter, 48V Phantom Image 4
Radial Engineering SB-4 Piezo Compact Active DI For Piezo Pickups, Low-Cut Filter, 48V Phantom
Our Price: $99.99
List Price: $120.00
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The StageBug SB-4 is a compact active direct box that has been optimized for use with piezo transducers, allowing upright basses, violins, cellos, and other acoustic instruments to be connected to the PA without compromising their tone or frequency response. The StageBug SB-4 allows you to retain the natural tone of your piezo-equipped instrument when amplified through a PA system.

Unlike typical direct boxes, the SB-4 features a very high 5 MΩ impedance that smooths out troublesome peaks that give piezo transducers a bad name. This higher impedance also broadens the frequency response for a more natural and pleasing sound. The active circuit balances the audio signal to enable long runs up to 100 meters without loss, while delivering spectacular linearity and low distortion throughout the audio range. Output connections include an aux out for a stage amplifier plus a standard XLR output to feed the PA.

Features

  • Active DI optimized for piezo transducers
  • Smooths out peaks & eliminates squawk
  • Powered by 48V phantom power
  • Compact design fits in your instrument case
  • High-pass filter reduces excessive bass for more clarity
  • Small enough to fit in an instrument case

Specifications

  • Audio Circuit Type: Piezo-optimized active buffer
  • Frequency Response: 20 Hz to 20 kHz
  • Dynamic Range: 100 dB
  • Gain: +2 dB
  • Total Harmonic Distortion: < 0.006%
  • Intermodulation Distortion: < 0.01%
  • Phase Deviation: 10° @ 50 Hz
  • Input Connectors: 1/4"
    • Input Impedance: 5 MΩ
    • Equivalent Input Noise (EIN): -101 dBu
    • Noise: -97 dBu
    • Maximum Input: +4 dBu
  • Output Connectors: XLR
    • Output Impedance: 330 Ω
  • Features: 180° polarity reverse, ground lift, HPF
  • Construction: 16-gauge steel chassis and outer shell
  • Power: 48V phantom power, 5mA
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions: 1.35" x 1.85" x 4.5"
  • Weight: 0.55 lbs (250 g)
