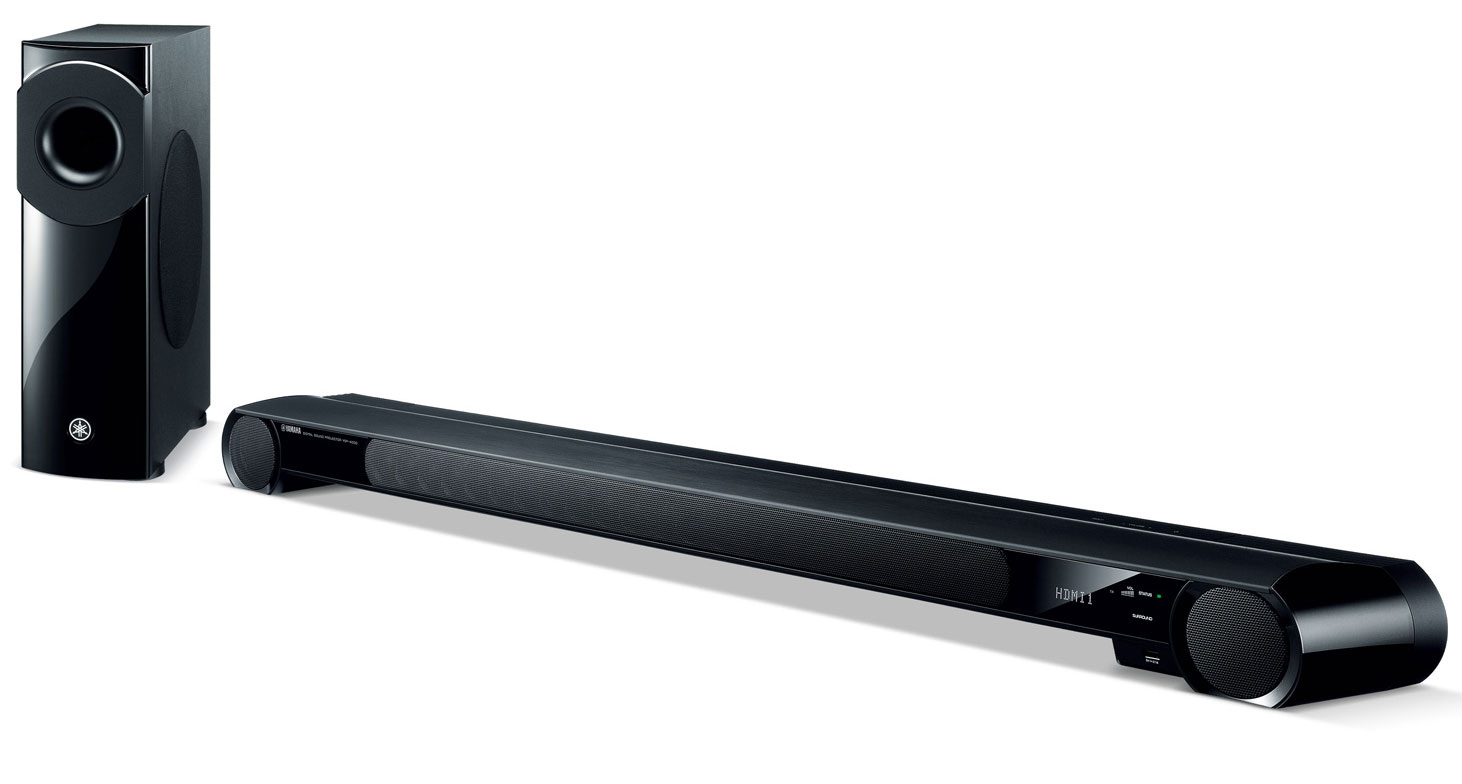

Yamaha YSP-4300BL
Digital Sound Projector Soundbar in Black with 4x HDMI In

OUR PART #  YSP-4300BL

Our Price: $1,799.95
List Price: $1,899.95
You save 5%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The YSP-4300 sound bar uses 22 array speakers controlled by Yamaha's YSP technology to produce powerful beams for extremely high-quality surround sound. Two powerful 2 1/2” (6.5 cm) woofer units in its large cabinet also help to improve sound quality, while its aluminum body dampens unwanted vibrations. The result is a sound field filled with presence for a superior surround sound feeling and outstanding imaging.

Features:

  • Yamaha-exclusive technology provides true (not virtual) 7.1-channelsurround sound
  • Sound bar employs 22 array speakers and two powerful woofers
  • Wireless subwoofer allows flexible placement
  • Advanced YST technology for rich and powerful bass
  • HDMI (4 in/1 out) with 4K pass-through, 3D and CEC functionality
  • Front panel USB digital connection for iPod/iPhone/iPad and USB devices
  • Optional accessory (YIT-W12) lets you enjoy music wirelessly from aniPod/iPhone/iPad or computer
  • Low-profile design for easy positioning in front of a TV
  • TV Remote Repeater for signal transmission
  • IntelliBeam automatically sets the optimal sound field
  • FM tuner with 40 station presets

Wireless Subwoofer with Advanced YST Technology Reproduce Rich and Powerful Bass
The subwoofer has a large 6 1/2” (16 cm) driver and uses Yamaha's exclusive Advanced YST technology to produce clear, powerful bass. The circuit board has an ideal grounding pattern that ensures stable current supply. The Linear Port improves sound dispersion and is designed to minimize unnecessary noise. Both music and movie sound effects are reproduced with an astounding sense of presence.

Wireless Streaming with High Sound Quality from iPod/iPhone/iPad or Mac/PC
The optional YIT-W12 Wireless Transmitter, used with the YSP-4300, lets you enjoy music wirelessly from your iPod/iPhone/iPad or Mac/PC. Yamaha-developed yAired technology provides uncompressed linear PCM transmission for consistently clear, accurate sound output.

Digital Sound Projector Technology Reproduces True Surround Sound
The YSP-4300 achieves true (not virtual) surround sound by producing beams of sound and using advanced processing to control their directions. You hear perfectly realized 7.1-channel surround sound with natural ambience and optimum imaging. Yamaha technology also provides the additional benefits of a wide "sweet-spot" listening area and the elimination of listening fatigue.

HD Audio Format Decoding
The YSP-4300 decodes HD Audio signals to ensure that you hear the best possible sound from Blu-ray Disc players, as well as from all other digital sources.

10 CINEMA DSP Programs
Yamaha’s ultra-sophisticated CINEMA DSP technology creates thrillingly realistic soundscapes in any room. You can select 10 different programs, including three "Movie," three "Music" and four "Entertainment" programs.

Versatile Listening Modes
The YSP-4300 achieves true surround sound by directing sound beams off walls to reach the listener from various angles. The main mode is 5 BeamPlus2 for 7-channel sources. In addition, there are a wide variety of other listening modes. You can select Stereo + 3 BeamPlus2, 5 Beam, Stereo + 3 Beam, 3 Beam, Stereo, Target and My Surround.

IntelliBeam Automatically Sets the Optimum Sound Field
This Yamaha exclusive feature ensures optimum multichannel sound reproduction with accurate image location. By monitoring and analyzing the sound with the microphone included with the YSP-4300, IntelliBeam automatically sets the best beam angles, while optimising the level and frequency response of each beam. This makes initial setup both extremely simple and acoustically perfect.

HDMI (4 in/1 out) with 4K Pass-through and 3D
Four HDMI inputs mean you can connect four high quality digital sources, each with just a single cable. The inputs support 4K pass-through, which allows the transmission of next-generation super high-resolution images, and the transmission of 3D video.

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. This function restores what was lost, so your music always sounds the way it should.

UniVolume Maintains the Same Volume Level
This welcome feature, made possible by Yamaha-developed technology, maintains a consistent volume level between different channels, programs, commercials and input sources. It can be switched on and off.

Easy Positioning in Front of a TV
Only 3 3/8” (86 mm) high, the YSP-4300 can easily be placed in front of your TV without blocking the screen. The height can be adjusted in two levels by adding included spacers. It is also wall mountable with optional brackets.

Design Conveys Luxury and Sophistication
The top surface of the sound bar is made of rigid aluminum with an elegant, brushed-metal finish, for a look that is stylish and imparts a strong feel of luxury. The sides have a mirror finish that harmonizes beautifully with flat-panel TVs.

Wireless Active Subwoofer Allows Flexible Placement
This subwoofer eliminates the need to connect cables, so setup is faster and easier. It can be used in either a horizontal or a vertical position, providing additional flexibility. This is a convenient subwoofer that delivers powerful, high-quality bass sound.

USB Digital Connection for iPod/ iPhone/iPad on the Front Panel
A USB terminal on the front panel makes it quick and easy to plug in your iPod, iPhone or iPad to enjoy stored music. The digital connection ensures that there is no data loss, maintaining optimum sound quality. When connected, the iPod, iPhone or iPad will charge even when the YSP-4300 is in standby mode.

Access to MP3 or WMA Tracks on USB Devices
The USB port also offers direct access to MP3 or WMA tracks on USB devices.

HDMI CEC Functionality
When connected to a CEC-compatible TV, the YSP-4300 will turn on and off together with the TV and you can use the TV remote unit to control the volume. CEC also provides advanced functionality with other components.

TV Remote Repeater
Even if the YSP-4300 blocks the TV’s remote control signal, the TV Remote Repeater on the back transmits the signal to the TV so operation is not affected.

Specifications:

General

  • Output Channel  7.1-channel
  • Output Power  324 W total power: 2 W x 22 beam drivers + 75 W x 2(woofer) + Dynamic 130 W subwoofer
  • Power Consumption  (Center Unit) 60 W, (Subwoofer) 70 W
  • Standby Power Consumption  (Center Unit) 0.5 W (HDMI control off,wireless interlock off)
  • Beam Drivers  1 1/8” (2.8 cm) x 22 beam drivers
  • Woofers  Dual 2 1/2” (6.5 cm) woofers
  • Subwoofer  6 1/2” (16 cm) cone woofer with Advanced YST(vertical/horizontal)
  • Dimensions (W x H x D)  43 3/8” x 3 3/8” (with spacer: 3 7/8”) x 63/8, 1,102 x 86 (with spacer: 99.5) x 161 mm (Center unit), 5 3/4” x 17 1/2” x14 5/8” (Vertical), 145 x 446 x 371 mm (Vertical) (Subwoofer)
  • Weight  15.2 lbs.; 6.9 kg (Center unit), 19.8 lbs.; 9 kg(Subwoofer)

Input / Output

  • HDMI  4 in / 1 out
  • Digital Optical  2 in
  • Digital Coaxial  1 in
  • Analog Audio  1 in

HDMI

  • Deep Color  Yes
  • x.v.Color  Yes
  • 3D Pass-through  Yes
  • ARC  Yes
  • CEC  Yes
  • Auto Lip-Sync  Yes

Sound Technology

  • Surround Technology  Digital Sound Projector™
  • CINEMA DSP Movie  3 (Sci-Fi, Adventure, Spectacle)
  • CINEMA DSP Music  3 (Concert, Jazz Club, Music Video)
  • CINEMA DSP Entertainment  4 (Sports, Talk Show, Drama, Game)
  • Listening Mode  5Beam, 5Beam Plus2, Stereo+3Beam, Stereo+3Beam Plus2,3Beam, Stereo, Target and My Surround
  • UniVolume  Yes
  • Compressed Music Enhancer  Yes

Audio Formats

  • HD Audio Format Decoding  Yes
  • Dolby TrueHD  Yes
  • Dolby Digital Plus  Yes
  • Dolby Digital  Yes
  • Dolby Digital EX  Yes
  • Dolby Pro Logic  Yes
  • Dolby Pro Logic II  Yes
  • Dolby Pro Logic IIx  Yes
  • DTS-HD Master Audio  Yes
  • DTS-HD High Resolution  Yes
  • DTS  Yes
  • DTS-Neo 6  Yes
  • DTS-ES  Yes
  • DTS 96/24  Yes
  • LPCM  Yes

Connectivity

  • Wireless Subwoofer  Yes
  • Wireless Compatibility via Yamaha Wireless Transmitter  Yes(iPod/iPhone/iPad or Mac/PC via optional YIT-W12)
  • yAired  Yes
  • USB  Yes (iPod/iPhone/iPad, USB Memory, Portable Audio Player)

Tuner  FM Tuner  Yes

Other Features

  • IntelliBeam  Yes
  • On-Screen Display  Yes
  • On-Screen Display Languages  English, German, French, Spanish,Italian, Russian, Dutch, Swedish and Japanese
  • ECO Mode  Yes
  • TV Remote Repeater, Learning function

Accessories (Optional)

  •  Wall Mounting Bracket  SPM-K20
  • Wireless Transmitter  YIT-W12

Yamaha YSP-4300BL
Digital Sound Projector Soundbar in Black with 4x HDMI In

OUR PART #  YSP-4300BL

Product Information:

The YSP-4300 sound bar uses 22 array speakers controlled by Yamaha's YSP technology to produce powerful beams for extremely high-quality surround sound. Two powerful 2 1/2” (6.5 cm) woofer units in its large cabinet also help to improve sound quality, while its aluminum body dampens unwanted vibrations. The result is a sound field filled with presence for a superior surround sound feeling and outstanding imaging.

Features:

  • Yamaha-exclusive technology provides true (not virtual) 7.1-channelsurround sound
  • Sound bar employs 22 array speakers and two powerful woofers
  • Wireless subwoofer allows flexible placement
  • Advanced YST technology for rich and powerful bass
  • HDMI (4 in/1 out) with 4K pass-through, 3D and CEC functionality
  • Front panel USB digital connection for iPod/iPhone/iPad and USB devices
  • Optional accessory (YIT-W12) lets you enjoy music wirelessly from aniPod/iPhone/iPad or computer
  • Low-profile design for easy positioning in front of a TV
  • TV Remote Repeater for signal transmission
  • IntelliBeam automatically sets the optimal sound field
  • FM tuner with 40 station presets

Wireless Subwoofer with Advanced YST Technology Reproduce Rich and Powerful Bass
The subwoofer has a large 6 1/2” (16 cm) driver and uses Yamaha's exclusive Advanced YST technology to produce clear, powerful bass. The circuit board has an ideal grounding pattern that ensures stable current supply. The Linear Port improves sound dispersion and is designed to minimize unnecessary noise. Both music and movie sound effects are reproduced with an astounding sense of presence.

Wireless Streaming with High Sound Quality from iPod/iPhone/iPad or Mac/PC
The optional YIT-W12 Wireless Transmitter, used with the YSP-4300, lets you enjoy music wirelessly from your iPod/iPhone/iPad or Mac/PC. Yamaha-developed yAired technology provides uncompressed linear PCM transmission for consistently clear, accurate sound output.

Digital Sound Projector Technology Reproduces True Surround Sound
The YSP-4300 achieves true (not virtual) surround sound by producing beams of sound and using advanced processing to control their directions. You hear perfectly realized 7.1-channel surround sound with natural ambience and optimum imaging. Yamaha technology also provides the additional benefits of a wide "sweet-spot" listening area and the elimination of listening fatigue.

HD Audio Format Decoding
The YSP-4300 decodes HD Audio signals to ensure that you hear the best possible sound from Blu-ray Disc players, as well as from all other digital sources.

10 CINEMA DSP Programs
Yamaha’s ultra-sophisticated CINEMA DSP technology creates thrillingly realistic soundscapes in any room. You can select 10 different programs, including three "Movie," three "Music" and four "Entertainment" programs.

Versatile Listening Modes
The YSP-4300 achieves true surround sound by directing sound beams off walls to reach the listener from various angles. The main mode is 5 BeamPlus2 for 7-channel sources. In addition, there are a wide variety of other listening modes. You can select Stereo + 3 BeamPlus2, 5 Beam, Stereo + 3 Beam, 3 Beam, Stereo, Target and My Surround.

IntelliBeam Automatically Sets the Optimum Sound Field
This Yamaha exclusive feature ensures optimum multichannel sound reproduction with accurate image location. By monitoring and analyzing the sound with the microphone included with the YSP-4300, IntelliBeam automatically sets the best beam angles, while optimising the level and frequency response of each beam. This makes initial setup both extremely simple and acoustically perfect.

HDMI (4 in/1 out) with 4K Pass-through and 3D
Four HDMI inputs mean you can connect four high quality digital sources, each with just a single cable. The inputs support 4K pass-through, which allows the transmission of next-generation super high-resolution images, and the transmission of 3D video.

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. This function restores what was lost, so your music always sounds the way it should.

UniVolume Maintains the Same Volume Level
This welcome feature, made possible by Yamaha-developed technology, maintains a consistent volume level between different channels, programs, commercials and input sources. It can be switched on and off.

Easy Positioning in Front of a TV
Only 3 3/8” (86 mm) high, the YSP-4300 can easily be placed in front of your TV without blocking the screen. The height can be adjusted in two levels by adding included spacers. It is also wall mountable with optional brackets.

Design Conveys Luxury and Sophistication
The top surface of the sound bar is made of rigid aluminum with an elegant, brushed-metal finish, for a look that is stylish and imparts a strong feel of luxury. The sides have a mirror finish that harmonizes beautifully with flat-panel TVs.

Wireless Active Subwoofer Allows Flexible Placement
This subwoofer eliminates the need to connect cables, so setup is faster and easier. It can be used in either a horizontal or a vertical position, providing additional flexibility. This is a convenient subwoofer that delivers powerful, high-quality bass sound.

USB Digital Connection for iPod/ iPhone/iPad on the Front Panel
A USB terminal on the front panel makes it quick and easy to plug in your iPod, iPhone or iPad to enjoy stored music. The digital connection ensures that there is no data loss, maintaining optimum sound quality. When connected, the iPod, iPhone or iPad will charge even when the YSP-4300 is in standby mode.

Access to MP3 or WMA Tracks on USB Devices
The USB port also offers direct access to MP3 or WMA tracks on USB devices.

HDMI CEC Functionality
When connected to a CEC-compatible TV, the YSP-4300 will turn on and off together with the TV and you can use the TV remote unit to control the volume. CEC also provides advanced functionality with other components.

TV Remote Repeater
Even if the YSP-4300 blocks the TV’s remote control signal, the TV Remote Repeater on the back transmits the signal to the TV so operation is not affected.

Specifications:

General

  • Output Channel  7.1-channel
  • Output Power  324 W total power: 2 W x 22 beam drivers + 75 W x 2(woofer) + Dynamic 130 W subwoofer
  • Power Consumption  (Center Unit) 60 W, (Subwoofer) 70 W
  • Standby Power Consumption  (Center Unit) 0.5 W (HDMI control off,wireless interlock off)
  • Beam Drivers  1 1/8” (2.8 cm) x 22 beam drivers
  • Woofers  Dual 2 1/2” (6.5 cm) woofers
  • Subwoofer  6 1/2” (16 cm) cone woofer with Advanced YST(vertical/horizontal)
  • Dimensions (W x H x D)  43 3/8” x 3 3/8” (with spacer: 3 7/8”) x 63/8, 1,102 x 86 (with spacer: 99.5) x 161 mm (Center unit), 5 3/4” x 17 1/2” x14 5/8” (Vertical), 145 x 446 x 371 mm (Vertical) (Subwoofer)
  • Weight  15.2 lbs.; 6.9 kg (Center unit), 19.8 lbs.; 9 kg(Subwoofer)

Input / Output

  • HDMI  4 in / 1 out
  • Digital Optical  2 in
  • Digital Coaxial  1 in
  • Analog Audio  1 in

HDMI

  • Deep Color  Yes
  • x.v.Color  Yes
  • 3D Pass-through  Yes
  • ARC  Yes
  • CEC  Yes
  • Auto Lip-Sync  Yes

Sound Technology

  • Surround Technology  Digital Sound Projector™
  • CINEMA DSP Movie  3 (Sci-Fi, Adventure, Spectacle)
  • CINEMA DSP Music  3 (Concert, Jazz Club, Music Video)
  • CINEMA DSP Entertainment  4 (Sports, Talk Show, Drama, Game)
  • Listening Mode  5Beam, 5Beam Plus2, Stereo+3Beam, Stereo+3Beam Plus2,3Beam, Stereo, Target and My Surround
  • UniVolume  Yes
  • Compressed Music Enhancer  Yes

Audio Formats

  • HD Audio Format Decoding  Yes
  • Dolby TrueHD  Yes
  • Dolby Digital Plus  Yes
  • Dolby Digital  Yes
  • Dolby Digital EX  Yes
  • Dolby Pro Logic  Yes
  • Dolby Pro Logic II  Yes
  • Dolby Pro Logic IIx  Yes
  • DTS-HD Master Audio  Yes
  • DTS-HD High Resolution  Yes
  • DTS  Yes
  • DTS-Neo 6  Yes
  • DTS-ES  Yes
  • DTS 96/24  Yes
  • LPCM  Yes

Connectivity

  • Wireless Subwoofer  Yes
  • Wireless Compatibility via Yamaha Wireless Transmitter  Yes(iPod/iPhone/iPad or Mac/PC via optional YIT-W12)
  • yAired  Yes
  • USB  Yes (iPod/iPhone/iPad, USB Memory, Portable Audio Player)

Tuner  FM Tuner  Yes

Other Features

  • IntelliBeam  Yes
  • On-Screen Display  Yes
  • On-Screen Display Languages  English, German, French, Spanish,Italian, Russian, Dutch, Swedish and Japanese
  • ECO Mode  Yes
  • TV Remote Repeater, Learning function

Accessories (Optional)

  •  Wall Mounting Bracket  SPM-K20
  • Wireless Transmitter  YIT-W12
