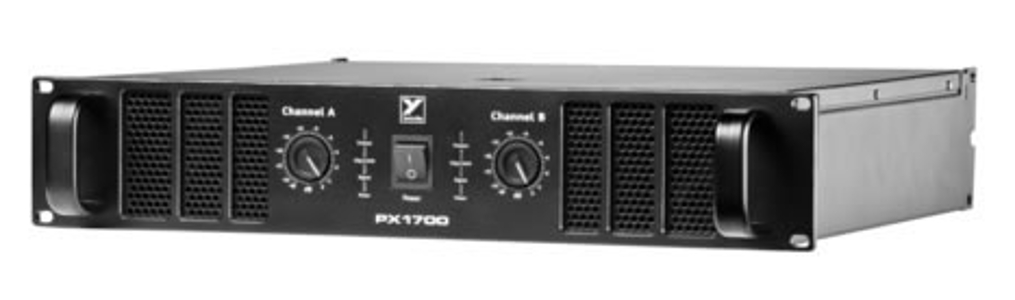

Yorkville PX1700
2x 600 W @ 4 Ohm Power Amplifier - 2RU

OUR PART #  PX1700

Our Price: $399.00
List Price: $549.00
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Perfect for club or concert hall, the Yorkville PX Series PX1700 power amplifier delivers up to 1700 watts (2 x 850 watts @ 2 ohms). XLR and 1/4" inputs, binding post and Speakon™ outputs ensure the PX1700 can be integrated into virtually any high performance sound system or mobile PA.

 Designed in North America to be the most cost effective high-powered amplifiers Yorkville Sound has ever made, the new PX Series deliver rock solid performance at their minimum rated impedances in even the most demanding live sound applications.

Proven Class-H amplifier topography provides wide frequency response, extremely low self-noise and low harmonic distortion making Yorkville PX Series amplifiers some of the best performing audio amplifiers in their class. Built for maximum versatility, all PX Series amplifiers have XLR and ÂĽ-inch inputs, Speakon and binding post outputs and defeatable limiter.

Compact two rack space design, solid steel chassis and highly efficient front to back fan cooling scheme so typical road case or rack installation won’t impede airflow ensures long-term reliability in any touring system or audio install application.

Yorkville PX1700 Features:

  • 400 Watts per Channel @ 8 ohms (Continuous Average)
  • 600 Watts per Channel @ 4 ohms
  • 850 Watts pre Channel @ 2 ohms
  • 1700 Watts Bridged Mono @ 4 ohms
  • Designed for Rock Solid Performance Right Down to and Below the Lowest Impedance Ratings
  • Recessed Front Panel Gain Controls
  • Efficient Front-to-Back Cooling Scheme
  • Advanced Protection Schemes Including DC Current, Load, Thermal and Breaker Protection
  • Front Panel Power, Protect, Activity and Clip LED''s
  • Speakon™ and Binding Post Outputs
  • Balanced XLR & ÂĽ" TRS Inputs
  • Sturdy All-Steel Construction

Yorkville PX1700 Specifications:

  • Amplifier class Class-H
  • Continuous Average Power @ 8 Ohms BCD(Watts) 400
  • Continuous Average Power @ 4 Ohms BCD(Watts) 600
  • Continuous Average Power @ 2 Ohms BCD(Watts) 850
  • Continuous Average Power Bridged BCD(Watts) 1700
  • Burst Average Power @ 8 Ohms BCD (Watts) 600
  • Burst Average Power @ 4 Ohms BCD (Watts) 1000
  • Burst Average Power @ 2 Ohms BCD (Watts) 850
  • Burst Average Power Bridged BCD (Watts) 1700
  • Frequency Response (Hz, +/- 1dB) 30Hz to 20kHz
  • Hum and Noise (un / Aweighted -dB) -100dB
  • THD -1kHz- 4 OHMS 0.03%
  • THD - 20Hz-20kHz, 4 Ohms 0.10%
  • Damping Factor (30 Hz - 400 Hz @ 8 Ohms) Greaterthan 300
  • Crosstalk (1kHz / 20Hz-20kHz) -75dB / -60dB
  • Input Impedance - Bal/Unbal(Ohms) 30kOhms/15kOhms
  • Input Sensitivity (Vrms) For Full Power Out 1.4
  • Max Voltage Gain (dB) 31dB
  • Stereo / Mono / Bridge (S/M/B) Yes
  • Protection DC/Load/Thermal
  • Limiter Defeatable
  • High Pass Filter No
  • Cooling Fan
  • Cooling Path Front to Back
  • Inputs - XLR Yes (x2)
  • Inputs - 1/4" Jacks Yes (x2)
  • Outputs - Speakon 4-pin Yes
  • Outputs - Binding Post Yes
  • Power Consumption (typ/max) 700/1500
  • Rack Spaces Two
  • Transformer Type Toroidal
  • Exterior Finish Black Paint
  • Dimensions (DxWxH): 16" x 19" x3.5" (40.6 x 48.3 x 8.9 cm)
  • Weight: 35 lbs (16 kg)

Yorkville PX1700
2x 600 W @ 4 Ohm Power Amplifier - 2RU

OUR PART #  PX1700

Product Information:

Perfect for club or concert hall, the Yorkville PX Series PX1700 power amplifier delivers up to 1700 watts (2 x 850 watts @ 2 ohms). XLR and 1/4" inputs, binding post and Speakon™ outputs ensure the PX1700 can be integrated into virtually any high performance sound system or mobile PA.

 Designed in North America to be the most cost effective high-powered amplifiers Yorkville Sound has ever made, the new PX Series deliver rock solid performance at their minimum rated impedances in even the most demanding live sound applications.

Proven Class-H amplifier topography provides wide frequency response, extremely low self-noise and low harmonic distortion making Yorkville PX Series amplifiers some of the best performing audio amplifiers in their class. Built for maximum versatility, all PX Series amplifiers have XLR and ÂĽ-inch inputs, Speakon and binding post outputs and defeatable limiter.

Compact two rack space design, solid steel chassis and highly efficient front to back fan cooling scheme so typical road case or rack installation won’t impede airflow ensures long-term reliability in any touring system or audio install application.

Yorkville PX1700 Features:

  • 400 Watts per Channel @ 8 ohms (Continuous Average)
  • 600 Watts per Channel @ 4 ohms
  • 850 Watts pre Channel @ 2 ohms
  • 1700 Watts Bridged Mono @ 4 ohms
  • Designed for Rock Solid Performance Right Down to and Below the Lowest Impedance Ratings
  • Recessed Front Panel Gain Controls
  • Efficient Front-to-Back Cooling Scheme
  • Advanced Protection Schemes Including DC Current, Load, Thermal and Breaker Protection
  • Front Panel Power, Protect, Activity and Clip LED''s
  • Speakon™ and Binding Post Outputs
  • Balanced XLR & ÂĽ" TRS Inputs
  • Sturdy All-Steel Construction

Yorkville PX1700 Specifications:

  • Amplifier class Class-H
  • Continuous Average Power @ 8 Ohms BCD(Watts) 400
  • Continuous Average Power @ 4 Ohms BCD(Watts) 600
  • Continuous Average Power @ 2 Ohms BCD(Watts) 850
  • Continuous Average Power Bridged BCD(Watts) 1700
  • Burst Average Power @ 8 Ohms BCD (Watts) 600
  • Burst Average Power @ 4 Ohms BCD (Watts) 1000
  • Burst Average Power @ 2 Ohms BCD (Watts) 850
  • Burst Average Power Bridged BCD (Watts) 1700
  • Frequency Response (Hz, +/- 1dB) 30Hz to 20kHz
  • Hum and Noise (un / Aweighted -dB) -100dB
  • THD -1kHz- 4 OHMS 0.03%
  • THD - 20Hz-20kHz, 4 Ohms 0.10%
  • Damping Factor (30 Hz - 400 Hz @ 8 Ohms) Greaterthan 300
  • Crosstalk (1kHz / 20Hz-20kHz) -75dB / -60dB
  • Input Impedance - Bal/Unbal(Ohms) 30kOhms/15kOhms
  • Input Sensitivity (Vrms) For Full Power Out 1.4
  • Max Voltage Gain (dB) 31dB
  • Stereo / Mono / Bridge (S/M/B) Yes
  • Protection DC/Load/Thermal
  • Limiter Defeatable
  • High Pass Filter No
  • Cooling Fan
  • Cooling Path Front to Back
  • Inputs - XLR Yes (x2)
  • Inputs - 1/4" Jacks Yes (x2)
  • Outputs - Speakon 4-pin Yes
  • Outputs - Binding Post Yes
  • Power Consumption (typ/max) 700/1500
  • Rack Spaces Two
  • Transformer Type Toroidal
  • Exterior Finish Black Paint
  • Dimensions (DxWxH): 16" x 19" x3.5" (40.6 x 48.3 x 8.9 cm)
  • Weight: 35 lbs (16 kg)
