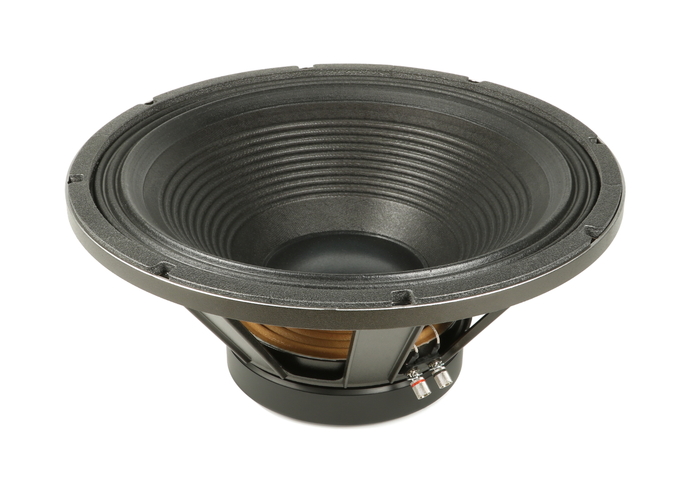

OUR PART #: DEFINIMAX 4018LF
Recommended for professional audio and bass as a high power, low distortion subwoofer in single or multi-driver designs ... Read more
Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.
Email customer service
Recommended for professional audio and bass as a high power, low distortion subwoofer in single or multi-driver designs.
Specification
Nominal Basket Diameter 18", 457.2mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 800W
Music Program 1600W
Resonance 32Hz
Usable Frequency Range 36Hz - 0.2kHz
Sensitivity*** 95dB
Magnet Weight 109 oz.
Gap Height 0.37", 9.53mm
Voice Coil Diameter 4", 101.6mm
Mounting Information
Recommended Enclosure Volume
Sealed N/a
Vented 125-210 liters / 4.4-7.4 cu.ft.
Driver Volume Displaced 403.9 cu.in. / 6.62 liters
Overall Diameter 18", 457.2mm
Baffle Hole Diameter 16.57", 420.9mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 17.25", 438.2mm
Depth 8.13", 206.4mm
Net Weight 24 lbs, 10.9 kg
Shipping Weight 26 lbs, 11.8 kgs
