Product Overview

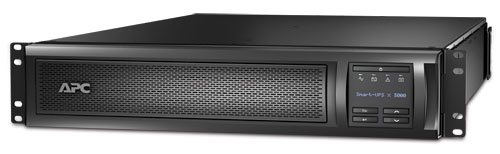

APC Smart-UPS, 2700 Watts / 3000 VA, Input 120V / Output 120V , Interface Port SmartSlot , Extended runtime model , Rack Height 2 U.
What's Included:
- CD with software
- Documentation CD
- Installation guide
- Rack Mounting brackets
- Rack mounting hardware
- Rack Mounting support rails
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
Features:
- Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- High frequency design - Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Auto recognition of external batteries : UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
- Sequenced shutdown and restart - Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Multiple switched outlet groups - Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- StruxureWare Central compatible - Enables centralized management via StruxureWare Central.
- High online efficiency - Reduces utlility costs, generates less heat.
- SmartSlot - Customize UPS capabilities with management cards.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
- Scalable runtime - Allows additional run time to be quickly added as needed.
- Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications:
- Output Power Capacity: 2700 Watts / 3000 VA
- Max Configurable Power: 2700 Watts / 3000 VA
- Nominal Output Voltage: 120V
- Output Voltage Distortion: Less than 5% at full load
- Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
- Topology: Line Interactive
- Waveform Type: Sine wave
- Output Connections:
- (3) NEMA 5-15R
- (3) NEMA 5-20R
- (1) NEMA L5-30R
- Nominal Input Voltage: 120V
- Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
- Input Connections: NEMA L5-30P
- Cord Length: 8 feet (2.44 meters)
- Input voltage range for main operations: 70 - 153V
- Transfer Time: 2-4 ms
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time: 3 hour(s)
- Replacement Battery: APCRBC117
- RBC™ Quantity: 1
- Interface Port(s): SmartSlot
- Available SmartSlot™ Interface Quantity: 1
- Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
- Emergency Power Off (EPO): Yes
- Surge energy rating: 540 Joules
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Data Line Protection: --
- Maximum Height: 3.36 inches (85 mm)
- Maximum Width: 17.00 inches (432 mm)
- Maximum Depth: 26.26 inches (667 mm)
- Rack Height: 2U
- Net Weight: 84.60 lbs. (38.45 kg)
- Shipping Weight: 99.79 lbs. (45.36 kg)
- Shipping Height: 9.58 inches (243 mm)
- Shipping Width: 23.48 inches (596 mm)
- Shipping Depth: 34.23 inches (869 mm)
- Color: Black
- Operating Environment: 32 - 104 °F (0 - 40 °C)
- Operating Relative Humidity: 0 - 95%
- Operating Elevation: 0-10000 feet (0-3000 meters)
- Storage Temperature: 5 - 113 °F (-15 - 45 °C)
- Storage Relative Humidity: 0 - 95%
- Storage Elevation: 0-50000 feet (0-15000 meters)
- Audible noise at 1 meter from surface of unit: 55.00 dBA
- Online Thermal Dissipation: 276.00 BTU/hr
- Regulatory Approvals: BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
- Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
- Equipment protection policy: Lifetime : $150000
- Sustainable Offer Status: RoHS Compliant
- REACH: REACH: Contains No SVHCs
