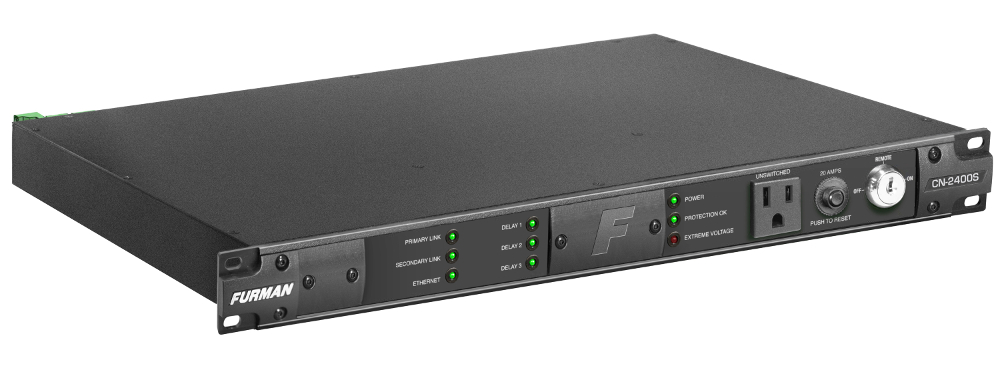

Furman CN2400S
Smart Sequencer 20 Amp

OUR PART #:  CN2400S

Designed for Commercial A/V Installers, the CN-2400S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection...
Learn More
Our Price: $599.00
List Price: $599.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Furman CN2400S
Qty:
In Stock

Similar Products

Designed for Commercial A/V Installers, the CN-2400S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required, sold separately).

The CN-2400S is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the CN-2400S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.

Furman CN2400S Specifications:

  • AC Voltage Input Range: 90-139VAC, 50/60Hz
  • Maximum AC Current Rating: 20 amps (Thermal breaker)
  • AC Cord: 3/12AWG, 10 feet, black, fixed, NEMA 5-15Pplug
  • AC Receptacles:
    • Rear Panel Outlets: 2 Unswitched NEMA 5 20R’s (1 duplex), 6 Sequenced NEMA 5-20R’s (3 duplexes each controlled by separate relay)
    • Front Panel: One NEMA 5-15R Convenience Outlet, Unswitched
  • Surge/Under-Overvoltage Protection:
    • AC Surge Protection: SMP
    • Spike Protection Mode: Line to neutral, zero ground leakage
    • Spike Clamping Voltage: 188VAC peak @ 6,000 volts/3,000 amps
    • Response Time: 1 nanosecond
    • Maximum Surge Current: 6,500 Amps
    • AC Undervoltage Protection: EVS, 77VAC+/-3VAC
    • AC Overvoltage Protection: EVS, 145VAC+/-5VAC
    • AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
  • AC Filtering:
    • LiFT
    • Noise Attenuation: Linear, 10dB @10KHz, 40dB @ 100KHz, 50dB @500KHz
  • Operating Temperature Range: 5C (40F) to 40C (105F)degrees
  • Humidity Range: < 90% rH (Relative Humidity)
  • User Interface:
    • Keyswitch: Front panel, 3-position keyswitch (On, Off, Remote)
    • Keys: Included, 1 pair
    • Pushbutton Switch: Front panel, hidden by security cover
    • Circuit Breaker: Front panel, pushbutton, 20A Thermal Breaker
    • Front panel diagnostic indicators: Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
    • Front Panel DIP Switches: Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force
    • Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
    • Potentiometer: Front panel, hidden by security cover, fine tune delay adjust
  • Control/Status/Triggering (Rear Panel):
    • Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
    • SmartSequencing: Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000’ nominal)
    • Remote Terminal: Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
    • Force Off/Delay 3 Terminal: Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
    • RS-232 Compatible: Yes, DB-9 Connector
    • IP Addressability: Optional, via BB-RS232 Ethernet/RS-232 Adaptor (sold separately) for IP control via Telnet, HTTP BlueBOLT®
    • Voltmeter: Available with RS-232/Ethernet option, +/- 2VAC accuracy
    • Ammeter: Available with RS-232/Ethernet option, +/- 1A accuracy
  • Power Consumption (No Load): 10 Watts
