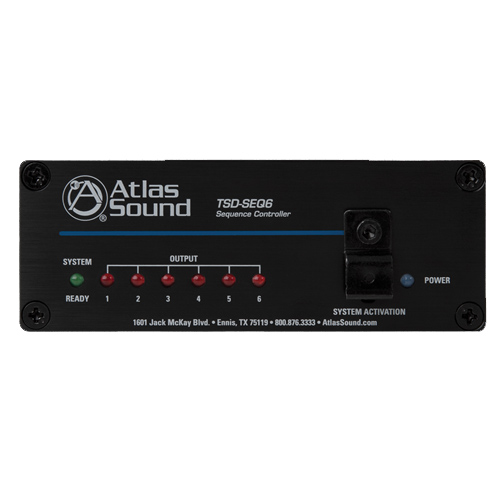

Atlas Sound TSD-SEQ6
AC Sequence Controller

OUR PART #:  TSD-SEQ6

The Atlas Sound TSD-SEQ6 Sequencer Controller features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC).
Learn More
Our Price: $254.99
List Price: $317.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound TSD-SEQ6
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound TSD-SEQ6 Sequencer Controller features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 10 minutes. Activation can be done via the front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two TSD-SEQ6 units together giving you 12 sequenced outputs.

Note: Unit requires power supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.

Features:

  • 6 Sequenced Outputs
  • Assignable 24VDC or Hard Switch Contact Closure (CC) per Output
  • Sequence 1 is Adjustable: Delay Time 1 Second to 10 Minutes
  • Sequences 2 - 6 are Adjustable: Delay Time 1 Second to 1 Minute
  • Remote Activation via 5-24VDC, Momentary Contacts, Hard Switch Contacts
  • Status Indicator for Each Output
  • Emergency Power Down "EPD" Port
  • Link Out for Two TSD-SEQ6 Controllers
  • Voltage Output for Remote LED Status Display
  • Separate Wiring Port for Each I/O
  • Removable Phoenix Style I/O Connectors
  • Power Supply Sold Separately

Specifications:

  • Chassis Construction: Black Aluminum
  • Sequence Status: Indicator Green, Qty 1
  • Output Status: Indicator Red, Qty 6
  • Voltage: 24VDC, 500mA
  • Power Consumption: Current 100mA
  • Power Consumption: VA Watts 2.4W
  • Height: 1.5" (39mm)
  • Width: 4" (101mm)
  • Depth: 2.75" (70mm)
  • Weight: 6oz. (.165kg)
