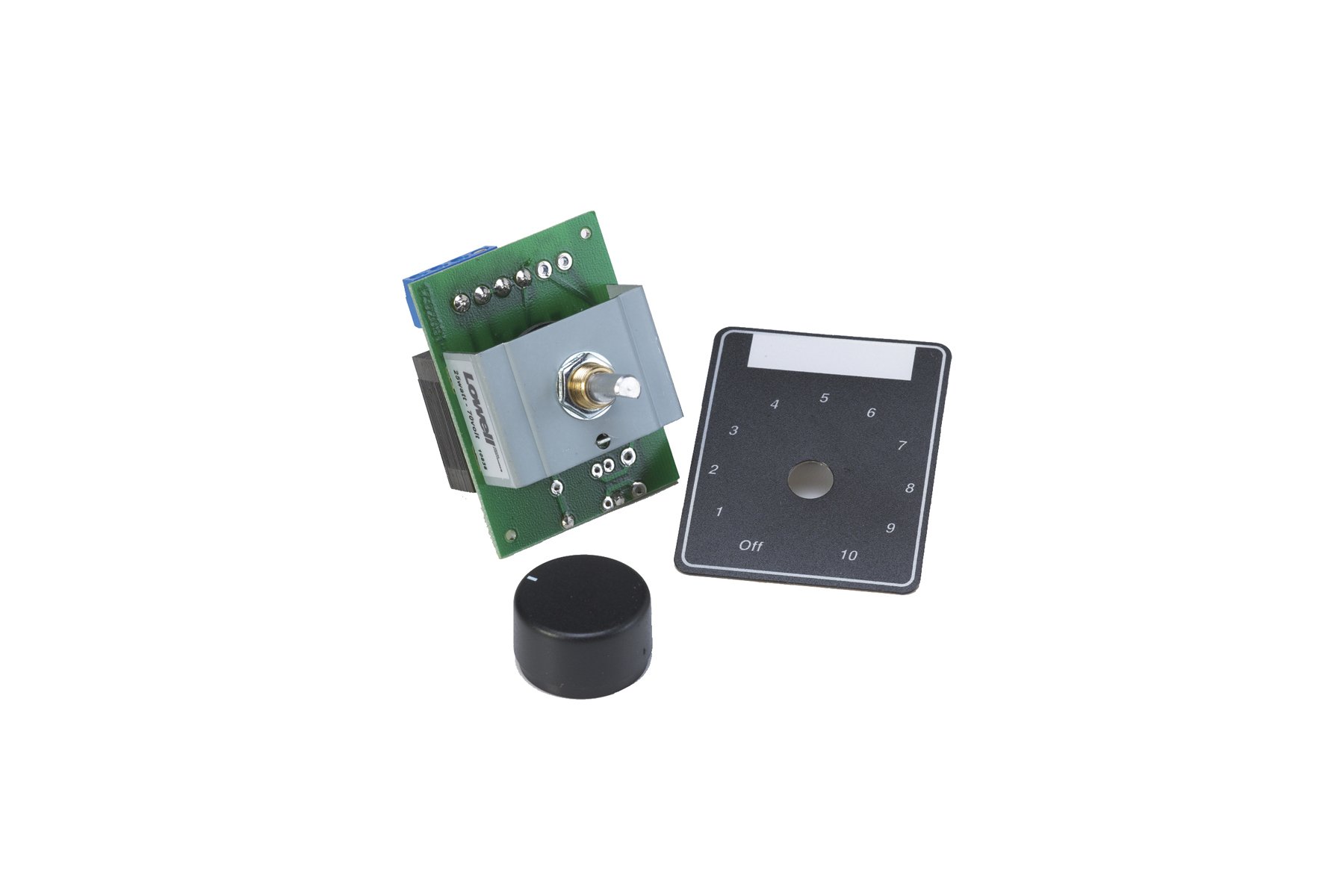

Lowell 25LVC-RM 25W, 70V/25V Rack - Mount Attenuator

The 25LVC-RM is a 25 W MONO attenuator/volume control with rotary switch, designed for rack-mount use.

Lowell's LVC Series

These volume controls are ETL Listed, compact easy-to-install controls that provide precise level adjustment of single or multiple speaker lines. Choose 25 W, 50 W or 100 W models with standard, Decora®-style, or adhesive rack-mount plate. All models (including 100 W versions) mount within a single gang E.O. Box with a minimum depth requirement of 2.125".

Features:

• 25 W power rating.
• ETL Listed
• May be used with RMP Series rack panels
• Rack-mountable
• Attenuation: 3 dB per step (two steps of 6 dB each before off)
• Termination: Phoenix-style
• Wire Capacity: 14-gauge
• Adhesive dial scale with label area
• Volume Positions: 0-10
• Activation: Rotary dial
• Use with: 25/70/100 V speaker line

Specifications:

• Power rating: 25 W
• Type: Auto-trans
• Switch type: Rotary
• Switch Positions: 10-off
• Attenuation: 3 dB/33 dB
• 1-Gang Plate: Standard Stainless Steel
