ikan Corporation D7w-DK-C
D7w Field Monitor Deluxe Kit for Canon

OUR PART #:  D7W-DK-C

The D7w is one of the newest, sturdiest additions to the family of ikan field monitors.
Learn More
Our Price: $1,449.00
List Price: $1,595.00
You save 9%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ikan Corporation D7w-DK-C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The D7w is one of the newest, sturdiest additions to the family of ikan field monitors. The D7w is a 7” (digital only) on camera field monitor devised for the video professional who utilizes various input types and power options. Its sleek yet durable aluminum construction dissipates heat and greatly enhances the D7w’s longevity. The D7w is equipped with peaking and false color features that the VX series is renown for plus it has an IPS (In-plane  switching) panel which puts out vibrant colors and great viewing angles. The D7w’s technological advances give you the features you need at prices you want.

This version of the 7-inch HD-SDI LCD Monitor Deluxe Kit contains the Canon "900" Series (BP5-C) battery plate and accessories.

Features:

  • 1280 x 800 HD IPS panel
  • Waveform, Vector Scope, & RGB Parade
  • HDMI, HD-SDI input with loop-through
  • False color with adjustable under luminance and over luminance warning
  • Clip guide with adjustable threshold
  • Peaking with red outline
  • Underscan
  • Movable pixel-to-pixel
  • DSLR Scaling
  • Aluminum Chassis

Specifications:

  • Diagonal (inch): 7
  • Resolution: 1280 X 800
  • Contrast Ratio: 800:1
  • Viewing angles: 178° horizontal/178° vertical
  • Brightness: 400 NIT
  • Inputs: 3G-SDI, HDMI
  • Operating Volts: 7-24V (DC)
  • Dimension: 7"W x 4.9"H x 1"D
  • Weight : 1 (Monitor)
  • Shipping Weight: 10 lbs

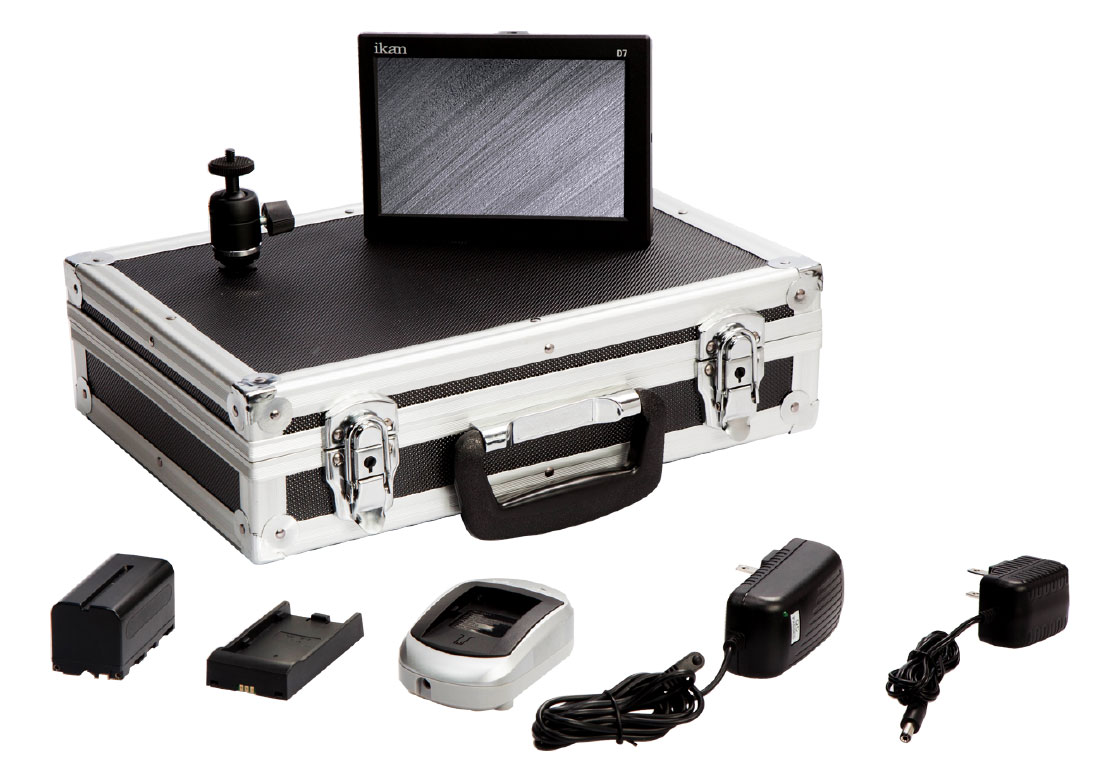

What's in the Box:

  • 7" 3G-SDI LCD Monitor w/ IPS Panel (Waveform) (D7w)
  • DV Battery: IBC950G
  • DV Battery Charger: ICH 945
  • DV Battery Plate: BP5-C
  • Hard Case
  • SM201 (SM201)
