ikan Corporation D7-DK-S
D7 Field Monitor Deluxe Kit for Sony


The D7 is one of the newest, sturdiest additions to the family of ikan field monitors.
Learn More
Our Price: $1,149.00
List Price: $1,265.00
You save 9%!
Write the first review.
ikan Corporation D7-DK-S
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The D7 is one of the newest, sturdiest additions to the family of ikan field monitors. The D7 is a 7” (digital only) on camera field monitor devised for the video professional who utilizes various input types and power options. Its sleek yet durable aluminum construction dissipates heat and greatly enhances the D7’s longevity. The D7 is equipped with peaking and false color features that the VX series is renown for plus it has an IPS (In-plain switching) panel which puts out vibrant colors and great viewing angles. The D7’s technological advances give you the features you need at prices you want.

This version of the Field Monitor Deluxe Kit contains the Sony "L" Series (BP5-S) DV battery adapter and accessories.


  • 1280 x 800 HD IPS panel
  • HDMI, HD-SDI input with loop-through
  • False color with adjustable under luminance and over luminance warning
  • Clip guide with adjustable threshold
  • Peaking with red outline
  • Underscan
  • Movable pixel-to-pixel
  • DSLR Scaling


  • Diagonal (inch): 7
  • Resolution: 1280x800
  • Contrast Ratio: 800:1
  • Viewing angles: 178° horizontal/178° vertical
  • Brightness: 400 NIT
  • Inputs: 3G-SDI, HDMI
  • Operating Volts: 7-24V (DC)
  • Dimension: 7"W x 4.9"H x 1"D
  • Weight : 1 (Monitor)
  • Shipping Weight: 10

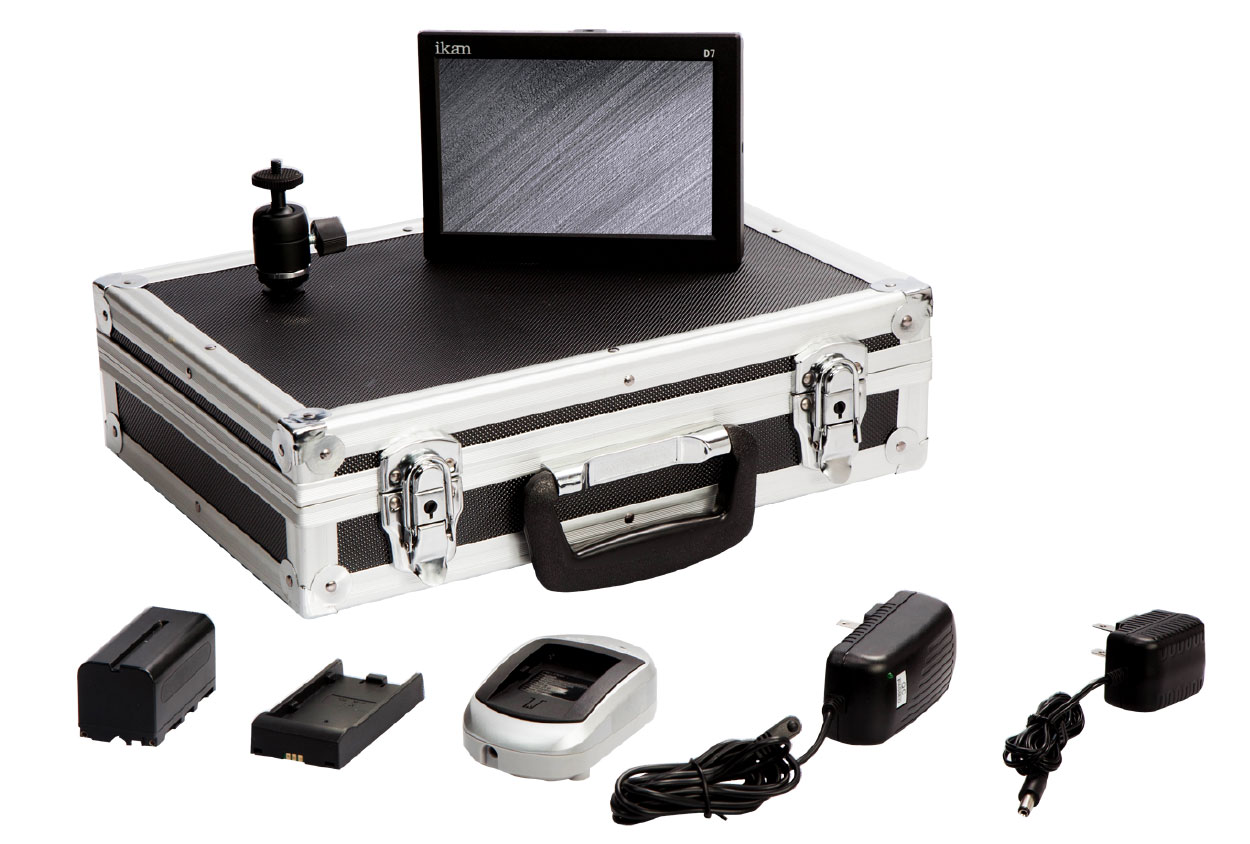

What's in the Box:

  • 7" 3G-SDI LCD Monitor w/ IPS Panel (D7)
  • DV Battery: IBS970
  • DV Battery Charger: ICH 750
  • DV Battery Plate - BP5-S
  • Hard Case
  • SM201 (SM201) Shoe Mount
