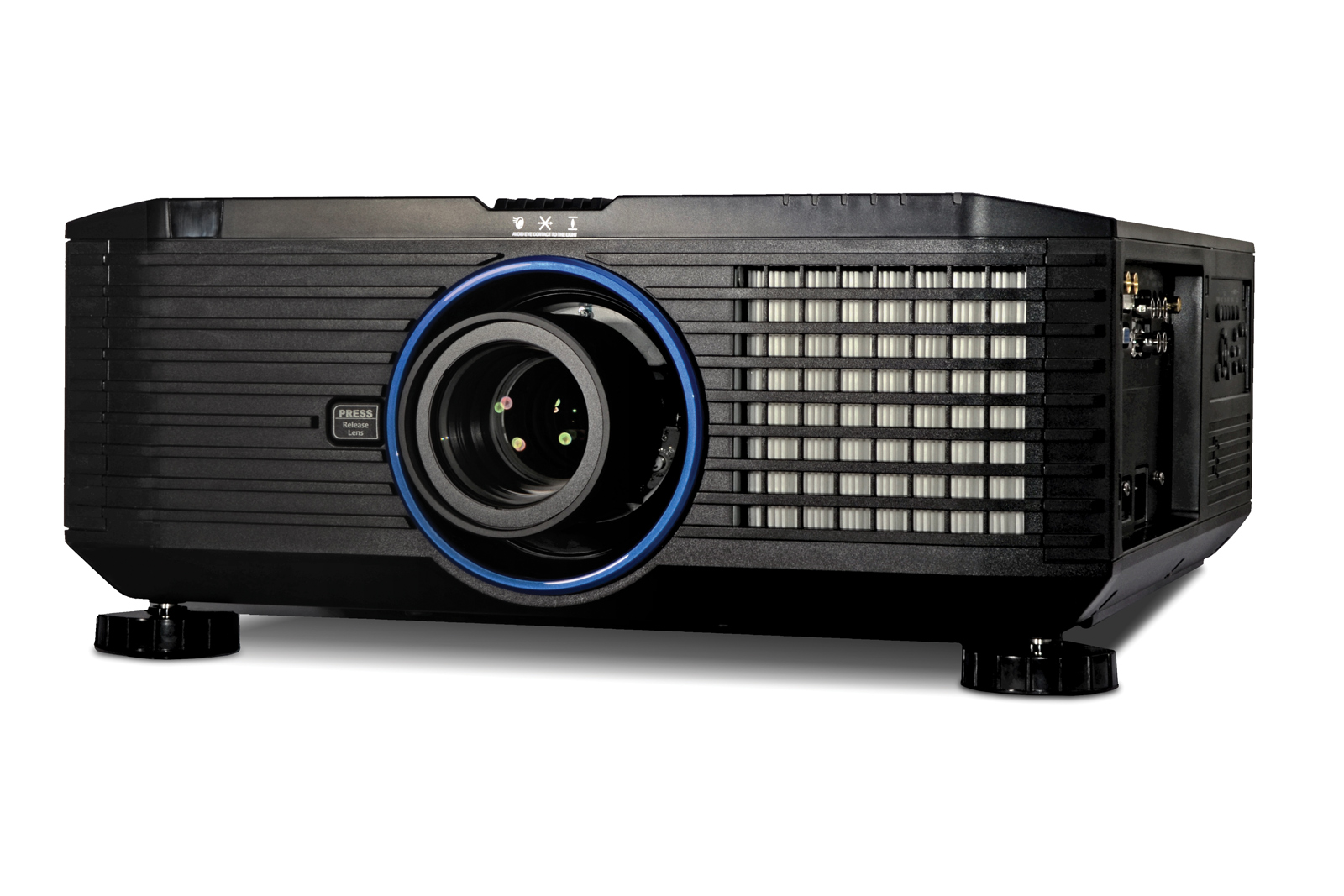

InFocus IN5555L
7000 Lumens DLP WUXGA Large Venue Projector - Body Only

OUR PART #:  IN5555L

NOTE: Some gear shown above are NOT INCLUDED and sold separately . For more information on this and other products, please contact your Sales Pro.
Learn More

Call for price! Not available online.
List Price: $21,847.00

Similar Products

NOTE: Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.

From InFocus comes this versatile DLP large venue projector in WuXGA resolution. The IN5555L DLP projector has the ultimate in native wide resolution at 1920 x 1200 dpi, so all your content will be displayed as it was meant to be seen, and big enough for everyone to see. The IN5555L is versatile enough to install in most any auditorium, convention hall, church or other house of worship -- even when projecting over long distances or in high ambient light.

InFocus IN5555L Includes:

  • Projector with two lamps (no lens )
  • Remote control (no batteries)
  • VGA cable
  • Power cord
  • Documentation

InFocus IN5555L Features:

  • WUXGA (1920 x 1200) native resolution for a wide variety of applications
  • Up to 7000 lumens (with "Presentation" color wheel)
  • Six lens options to suit your complex installation
  • Two user-replaceable 6-segment color wheels for incredible color quality and versatility
  • The latest 3G-SDI input for the highest resolution and picture quality
  • Motorized lens shift, zoom and focus for ease of image placement
  • 24/7 capable with dual liquid-cooled lamps
  • HD Connections to meet the needs of today's digital content and automated room systems
  • Loaded with features to aid in installation and to produce the bright, vivid images needed for large image installations

InFocus IN5555L Specifications:

  • Aspect Ratio (Native): 16:10
  • Aspect Ratio (Supported): 4:3, 5:4, 16:9, 16:10, 1.85:1, 2.35:1
  • Resolution (Native): WUXGA (1920 x 1200)
  • Resolution (Max): WUXGA (1920 x 1200)
  • Contrast Ratio: 2400:1
  • Closed Captioning: Yes
  • Color Wheel: 6-segment "Presentation" (RYGCWB) and 6-segment "CinemaCorrect" (RGBCMY)
  • Computer Compatibility: PC, Mac
  • Display Technology: DLP
  • DMS: Yes
  • Number of Colors: 1.07 billion
  • Projection Presets: User, Presentation,Video, Bright, ISF Day, ISF Night, WhiteBoard, BlackBoard, Beige Wall
  • Projector Placement: Front, Ceiling, Rear
  • Split Screen: Yes
  • Video Compatibility: 480i/p, 576i/p, 720p, 1080i/p, NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM
  • Audio Speakers: None

Connectivity (Input/Output)

  • Composite (3.5 mm): 1
  • DVI: 1
  • 5 BNC: 1
  • HDMI: 1
  • Networking: Wired
  • Networking Features: Control over IP, Status, Embedded Web Page
  • RS232: 1
  • S-Video: 1
  • Screen Trigger: 12V
  • VGA: 1
  • 3G-SDI: 1 (in), 1 (out)
  • Connections: 3G-SDI, HDMI 1.4, DVI-D, VGA, 5 BNC, Composite (3.5 mm),S-Video, LAN (RJ45)

Environmental

  • Audible Noise (Eco, dBA): 39
  • Audible Noise (High, dBA): 43
  • Maximum Altitude: 7500 ft (2286 m)
  • Operating Humidity: 5-95% RH without condensation
  • Operating Temperature: 41° - 104°F (5° - 40°C)

Lamp Specifications

  • Brightness (Eco): 6200 lumens (with "Presentation" color wheel), 5140 lumens (with "Cinema Correct" color wheel)
  • Brightness (High): 7000 lumens (with "Presentation" color wheel), 6400 lumens (with "Cinema Correct" color wheel)
  • Dual Lamps: Yes
  • Lamp Hours (Eco): 2500
  • Lamp Hours (High): 2000
  • Lamp Wattage (High): 400

Lens / Optical Specifications

  • Optional Lens 6 Zoom: 1.55
  • Digital Keystone Correction (Vert.): +/- 30%
  • Focus Type: Motorized
  • H-Sync Max (kHz): 108
  • H-Sync Min (kHz): 15
  • Lens Shift: Motorized
  • Lens Shift: Horz (max): +/- 10%
  • Lens Shift: Horz (min): +/- 10%
  • Lens Shift: Vert (max): 20%
  • Lens Shift: Vert (min): -60%
  • Lens Type: Optional
  • Optional Lenses: Yes
  • Optional Lens 1 Name: Fixed Short Throw
  • Optional Lens 1 Throw Ratio: 0.76
  • Optional Lens 1 Zoom: Fixed
  • Optional Lens 2 Name: Wide Zoom
  • Optional Lens 2 Throw Ratio: 1.25-1.79
  • Optional Lens 2 Zoom: 1.41
  • Optional Lens 3 Name: Standard Lens
  • Optional Lens 3 Throw Ratio: 1.73-2.27
  • Optional Lens 3 Zoom: 1.3
  • Optional Lens 4 Name: Semi-long Zoom
  • Optional Lens 4 Throw Ratio: 2.22-3.67
  • Optional Lens 4 Zoom: 1.65
  • Optional Lens 5 Name: Long Zoom
  • Optional Lens 5 Throw Ratio: 3.58-5.38
  • Optional Lens 5 Zoom: 1.5
  • Maximum Image Size: 300" (762 cm)
  • Minimum Image Size: 50" (127 cm)
  • V-Sync Max (kHz): 120
  • V-Sync Min (kHz): 48
  • Optional Lens 6 Throw Ratio: 5.31-8.26
  • Optional Lens 6 Name: Ultra Long Zoom
  • Digital Keystone Correction (Horiz): +/- 30%

Other

  • Where Available: Worldwide
  • Approvals: Argentina, Australia, Austria, Belgium, Bolivia, Brazil, Brunei, Bulgaria, Canada, China, Columbia, Costa Rica, Cyprus, Czech Republic, Denmark, Ecuador, Egypt, Fiji, Finland, France, Germany, Greece, Hungary, India, Indonesia, Ireland, Italy, Japan, Jama
  • Menu Languages: English, French, German, Spanish, Italian, Norwegian, Dutch, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish, Arabian, Indonesian, Portuguese

Physical Attributes

  • Product Dimensions (WxDxH): 20" x 20.9" x 8.3" (510 x 530 x 210 mm)
  • Product Weight: 44.1 lbs (20 kg)
  • Security: Kensington Lock, User PIN
  • Shipping Dimensions (WxDxH): 28.2" x 25.1" x 14.6" (715 x 638 x 371 mm)
  • Shipping Weight: 61.7 lbs (28 kg)

Power / Electrical

  • Power Supply: 100-240 Volts at 50-60 Hz
  • Power consumption (Eco, Watts): 760 (with both lamps running)
  • Power consumption (High, Watts): 960
  • Power consumption (Standby, Watts): < 0.5

Warranty

  • Product Warranty: 2 years
  • Warranty Details: Terms listed are for the Americas only. Refer toregion-specific data sheets for international warranty terms.
  • Lamp Warranty: 6 months
  • Accessory Warrant 90 days
