InFocus IN5554L
7000 Lumens WXGA Large Venue Projector without Lens

OUR PART #:  IN5554L

From InFocus comes this versatile DLP large venue projector in widescreen resolution.
Learn More

Call for price! Not available online.
List Price: $13,444.00

Similar Products

From InFocus comes this versatile DLP large venue projector in widescreen resolution. The IN5554L DLP projector uses its widescreen WXGA native resolution, flexible color control, and high brightness to beam your content exactly where and how you want it to be seen. Plus, the IN5554L is versatile enough to install in most any auditorium, convention hall, church or other house of worship -- even when projecting over long distances or in high ambient light.

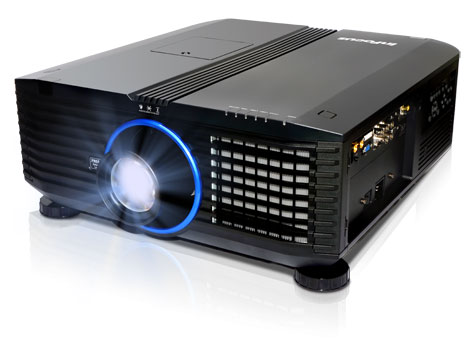

NOTE: Product shown in image is for illustrative purposes only. Actual product comes without a lens.

Includes:

  • Projector with two lamps (no lens )
  • Remote control (no batteries)
  • VGA cable
  • Power cord
  • Documentation

InFocus IN5554L Features:

  • WXGA (1280 x 800) native resolution for a wide variety of applications
  • Up to 7000 lumens (with "Presentation" color wheel)
  • Six lens options to suit your complex installation
  • Two user-replaceable 6-segment color wheels for incredible color quality and versatility
  • The latest 3G-SDI input for the highest resolution and picture quality
  • Motorized lens shift, zoom and focus for ease of image placement
  • 24/7 capable with dual liquid-cooled lamps
  • HD Connections to meet the needs of today's digital content and automated room systems
  • Loaded with features to aid in installation and to produce the bright, vivid images needed for large image installations

InFocus IN5554L Specifications:

  • Aspect Ratio (Native): 16:10
  • Aspect Ratio (Supported): 4:3, 5:4, 16:9, 16:10, 1.85:1, 2.35:1
  • Resolution (Native): WXGA (1280 x 800)
  • Resolution (Max): WUXGA (1920 x 1200)
  • Contrast Ratio: 2400:1
  • Closed Captioning: Yes
  • Color Wheel: 6-segment "Presentation" (RYGCWB) and 6-segment "CinemaCorrect" (RGBCMY)
  • Computer Compatibility: PC, Mac
  • Display Technology: DLP
  • DMS: Yes
  • Number of Colors: 1.07 billion
  • Projection Presets: User, Presentation,Video, Bright, ISF Day, ISF Night,WhiteBoard, BlackBoard, Beige Wall
  • Projector Placement: Front, Ceiling, Rear
  • Split Screen: Yes
  • Video Compatibility: 480i/p, 576i/p, 720p, 1080i/p, NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM
  • Audio Speakers: None

Connectivity (Input/Output)

  • Composite (3.5 mm): 1
  • DVI: 1
  • 5 BNC: 1
  • HDMI: 1
  • Networking: Wired
  • Networking Features: Control over IP, Status, Embedded Web Page
  • RS232: 1
  • S-Video: 1
  • Screen Trigger: 12V
  • VGA: 1
  • 3G-SDI: 1 (in), 1 (out)
  • Connections: 3G-SDI, HDMI 1.4, DVI-D, VGA, 5 BNC, Composite (3.5 mm), S-Video, LAN (RJ45)

Environmental

  • Audible Noise (Eco, dBA): 39
  • Audible Noise (High, dBA): 43
  • Maximum Altitude (feet): 7500
  • Maximum Altitude (meters): 2286
  • Operating Humidity: 5-95% RH without condensation
  • Operating Temperature (C): 5 - 40┬░
  • Operating Temperature (F): 41 - 104┬░

Lamp Specifications

  • Brightness (Eco): 6200 lumens (with "Presentation" color wheel), 5140 lumens (with "Cinema Correct" color wheel)
  • Brightness (High): 7000 lumens (with "Presentation" color wheel), 6400 lumens (with "Cinema Correct" color wheel)
  • Dual Lamps: Yes
  • Lamp Hours (Eco): 2500
  • Lamp Hours (High): 2000
  • Lamp Wattage (High): 400

Lens / Optical Specifications

  • Optional Lens 6 Zoom: 1.55
  • Digital Keystone Correction (Vert.): +/- 30%
  • Focus Type: Motorized
  • H-Sync Max (kHz): 108
  • H-Sync Min (kHz): 15
  • Lens Shift: Motorized
  • Lens Shift: Horz (max): +/- 10%
  • Lens Shift: Horz (min): +/- 10%
  • Lens Shift: Vert (max): 20%
  • Lens Shift: Vert (min): -60%
  • Lens Type: Optional
  • Optional Lenses: Yes
  • Optional Lens 1 Name: Fixed Short Throw
  • Optional Lens 1 Throw Ratio: 0.80
  • Optional Lens 1 Zoom: Fixed
  • Optional Lens 2 Name: Wide Zoom
  • Optional Lens 2 Throw Ratio: 1.31-1.87
  • Optional Lens 2 Zoom: 1.41
  • Optional Lens 3 Name: Standard Lens
  • Optional Lens 3 Throw Ratio: 1.81-2.38
  • Optional Lens 3 Zoom: 1.3
  • Optional Lens 4 Name: Semi-long Zoom
  • Optional Lens 4 Throw Ratio: 2.33-3.86
  • Optional Lens 4 Zoom: 1.65
  • Optional Lens 5 Name: Long Zoom
  • Optional Lens 5 Throw Ratio: 3.76-5.64
  • Optional Lens 5 Zoom: 1.5
  • Maximum Image Size (width, cm): 762
  • Maximum Image Size (width, inches): 300
  • Minimum Image Size (width, cm): 127
  • Minimum Image Size (width, inches): 50
  • V-Sync Max (kHz): 120
  • V-Sync Min (kHz): 48
  • Optional Lens 6 Throw Ratio: 5.56-8.67
  • Optional Lens 6 Name: Ultra Long Zoom
  • Digital Keystone Correction (Horiz): +/- 30%

Other

  • Where Available: Worldwide
  • Approvals: Argentina, Australia, Austria, Belgium, Bolivia, Brazil, Brunei, Bulgaria, Canada, China, Columbia, Costa Rica, Cyprus, Czech Republic, Denmark, Ecuador, Egypt, Fiji, Finland, France, Germany, Greece, Hungary, India, Indonesia, Ireland, Italy, Japan, Jama
  • Menu Languages: English, French, German, Spanish, Italian, Norwegian, Dutch, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish, Arabian, Indonesian, Portuguese

Physical Attributes

  • Product Dimensions (W x D x H) (in.): 20 x 20.9 x 8.3
  • Product Dimensions (W x D x H) (mm): 510 x 530 x 210
  • Product Weight (kg): 20
  • Product Weight (lbs.): 44.1
  • Security: Kensington Lock, User PIN
  • Shipping Dimensions (W x D x H) (in.): 28.2 x 25.1 x 14.6
  • Shipping Dimensions (W x D x H) (mm): 715 x 638 x 371
  • Shipping Weight (kg): 28
  • Shipping Weight (lbs.): 61.7

Power / Electrical

  • Power Supply: 100-240 Volts at 50-60 Hz
  • Power consumption (Eco, Watts): 760 (with both lamps running)
  • Power consumption (High, Watts): 960
  • Power consumption (Standby, Watts): < 0.5

Warranty

  • Product Warranty: 2 years
  • Warranty Details: Terms listed are for the Americas only. Refer toregion-specific data sheets for international warranty terms.
  • Lamp Warranty: 6 months
  • Accessory Warrant 90 days
