InFocus IN5552L
8300 Lumens XGA Large Venue DLP Projector without Lens

OUR PART #:  IN5552L

From InFocus comes this versatile DLP large venue projector with big brightness. IN5552L DLP projector is the brightest projector currently offered by InFocus.
Learn More

Add to Cart to See Price

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

InFocus IN5552L
Qty:
In Stock

Similar Products

From InFocus comes this versatile DLP large venue projector with big brightness. IN5552L DLP projector is the brightest projector currently offered by InFocus. That brightness and its flexible color control will beam your content exactly where and how you want it to be seen. Plus, the IN5552L is versatile enough to install in most any auditorium, convention hall, church or other house of worship -- even when projecting over long distances or in high ambient light.

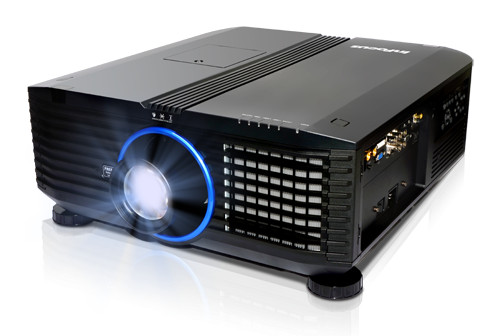

NOTE: Product shown in image is for illustrative purposes only. Actual product comes without a lens.

InFocus IN5552L Includes:

  • Projector with two lamps (no lens)
  • Remote control (no batteries)
  • VGA cable
  • Power cord
  • Documentation

InFocus IN5552L Features:

  • XGA (1024 x 768) native resolution for a wide variety of applications
  • Up to 8300 lumens (with "Presentation" color wheel)
  • Six lens options to suit your complex installation
  • Two user-replaceable 6-segment color wheels for incredible color quality and versatility
  • The latest 3G-SDI input for the highest resolution and picture quality
  • Motorized lens shift, zoom and focus for ease of image placement
  • 24/7 capable with dual liquid-cooled lamps
  • HD Connections to meet the needs of today's digital content and automated room systems
  • Loaded with features to aid in installation and to produce the bright, vivid images needed for large image installations

InFocus IN5552L Specifications:

  • Aspect Ratio (Native): 4:3
  • Aspect Ratio (Supported): 4:3, 5:4, 16:9, 16:10, 1.85:1, 2.35:1
  • Resolution (Native): XGA (1024 x 768)
  • Resolution (Max): WUXGA (1920 x 1200)
  • Contrast Ratio: 2400:1
  • Closed Captioning: Yes
  • Color Wheel: 6-segment "Presentation" (RYGCWB) and 6-segment "CinemaCorrect" (RGBCMY)
  • Computer Compatibility: PC, Mac
  • Display Technology: DLP
  • DMS: Yes
  • Number of Colors: 1.07 billion
  • Projection Presets: User, Presentation,Video, Bright, ISF Day, ISF Night, WhiteBoard, BlackBoard, Beige Wall
  • Projector Placement: Front, Ceiling, Rear
  • Split Screen: Yes
  • Video Compatibility: 480i/p, 576i/p, 720p, 1080i/p, NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM
  • Audio Speakers: None

Connectivity (Input/Output)

  • Composite (3.5 mm): 1
  • DVI: 1
  • 5 BNC: 1
  • HDMI: 1
  • Networking: Wired
  • Networking Features: Control over IP, Status, Embedded Web Page
  • RS232: 1
  • S-Video: 1
  • Screen Trigger: 12V
  • VGA: 1
  • 3G-SDI: 1 (in), 1 (out)
  • Connections: 3G-SDI, HDMI 1.4, DVI-D, VGA, 5 BNC, Composite (3.5 mm), S-Video, LAN (RJ45)

Environmental

  • Audible Noise (Eco, dBA): 39
  • Audible Noise (High, dBA): 43
  • Maximum Altitude: 7500 ft (2286 m)
  • Operating Humidity: 5-95% RH without condensation
  • Operating Temperature: 41° - 104° (5° - 40° C)

Lamp Specifications

  • Brightness (Eco): 6800 lumens (with "Presentation" color wheel), 6080 lumens (with "Cinema Correct" color wheel)
  • Brightness (High): 8300 lumens (with "Presentation" color wheel), 7600 lumens (with "Cinema Correct" color wheel)
  • Dual Lamps: Yes
  • Lamp Hours (Eco): 2500
  • Lamp Hours (High): 2000
  • Lamp Wattage (High): 400

Lens / Optical Specifications

  • Optional Lens 6 Zoom: 1.55
  • Digital Keystone Correction (Vert.): +/- 30%
  • Focus Type: Motorized
  • H-Sync Max (kHz): 108
  • H-Sync Min (kHz): 15
  • Lens Shift: Motorized
  • Lens Shift: Horz (max): +/- 10%
  • Lens Shift: Horz (min): +/- 10%
  • Lens Shift: Vert (max): 20%
  • Lens Shift: Vert (min): -60%
  • Lens Type: Optional
  • Optional Lenses: Yes
  • Optional Lens 1 Name: Fixed Short Throw
  • Optional Lens 1 Throw Ratio: 0.79
  • Optional Lens 1 Zoom: Fixed
  • Optional Lens 2 Name: Wide Zoom
  • Optional Lens 2 Throw Ratio: 1.3-1.85
  • Optional Lens 2 Zoom: 1.41
  • Optional Lens 3 Name: Standard Lens
  • Optional Lens 3 Throw Ratio: 1.75-2.35
  • Optional Lens 3 Zoom: 1.3
  • Optional Lens 4 Name: Semi-long Zoom
  • Optional Lens 4 Throw Ratio: 2.3-3.81
  • Optional Lens 4 Zoom: 1.65
  • Optional Lens 5 Name: Long Zoom
  • Optional Lens 5 Throw Ratio: 3.71-5.57
  • Optional Lens 5 Zoom: 1.5
  • Maximum Image Size: 300" (762 cm)
  • Minimum Image Size: 50" (127 cm)
  • V-Sync Max (kHz): 120
  • V-Sync Min (kHz): 48
  • Optional Lens 6 Throw Ratio: 5.5-8.56
  • Optional Lens 6 Name: Ultra Long Zoom
  • Digital Keystone Correction (Horiz): +/- 30%

Other

  • Where Available: Worldwide
  • Approvals: Argentina, Australia, Austria, Belgium, Bolivia, Brazil, Brunei, Bulgaria, Canada, China, Columbia, Costa Rica, Cyprus, Czech Republic, Denmark, Ecuador, Egypt, Fiji, Finland, France, Germany, Greece, Hungary, India, Indonesia, Ireland, Italy, Japan, Jama
  • Menu Languages: English, French, German, Spanish, Italian, Norwegian, Dutch, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish, Arabian, Indonesian, Portuguese

Physical Attributes

  • Product Dimensions (W x D x H): 20" x 20.9" x 8.3" (510 x 530 x 210 mm)
  • Product Weight: 44.1 lbs (20 kg)
  • Security: Kensington Lock, User PIN
  • Shipping Dimensions (W x D x H): 28.2" x 25.1" x 14.6" (715 x 638 x 371 mm)
  • Shipping Weight: 61.7 lbs (28 kg)

Power / Electrical

  • Power Supply: 100-240 Volts at 50-60 Hz
  • Power consumption (Eco, Watts): 760 (with both lamps running)
  • Power consumption (High, Watts): 960
  • Power consumption (Standby, Watts): < 0.5

Warranty

  • Product Warranty: 2 years
  • Warranty Details: Terms listed are for the Americas only. Refer toregion-specific data sheets for international warranty terms.
  • Lamp Warranty: 6 months
  • Accessory Warranty: 90 days
