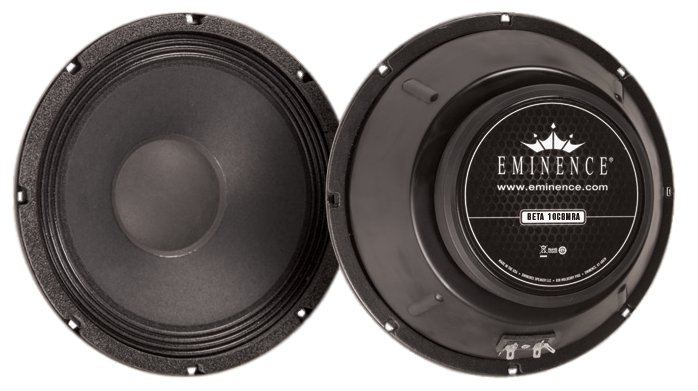

OUR PART #: BETA-10CBMRA MFR #: BETA-10CBMRA
Recommended for high power pro audio and car audio midrange applications. Sealed basket affords this speaker cabinet independence. ...Read more
Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.
Email customer service
Recommended for high power pro audio and car audio midrange applications. Sealed basket affords this speaker cabinet independence.
Specification
Nominal Basket Diameter 10", 254mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 200W
Music Program 400W
Resonance 326.38Hz
Usable Frequency Range 300Hz - 4kHz
Sensitivity*** 99.6dB
Magnet Weight 34 oz.
Gap Height 0.31", 7.95mm
Voice Coil Diameter 2", 50.8mm
Mounting Information
Recommended Enclosure Volume
Sealed - liters / - cu.ft.
Vented - liters / - cu.ft.
Driver Volume Displaced 69.1 cu.in. / 1.1 liters
Overall Diameter 10.09", 256.29mm
Baffle Hole Diameter 9.18", 233.17mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.25", 6.35mm
Mounting Holes B.C.D. 9.66", 245.36mm
Depth 3.56", 90.42mm
Net Weight 7.3 lbs, 3.31 kg
