Electro-Voice ZLX-15 15" 2-Way Passive Loudspeaker

OUR PART #: ZLX-15 MFR #: F.01U.272.256

Copied to clipboard

Enhanced low-end performance in a portable, professional format. Featuring custom drivers housed in a breakthrough new cabinet design... ...Read more

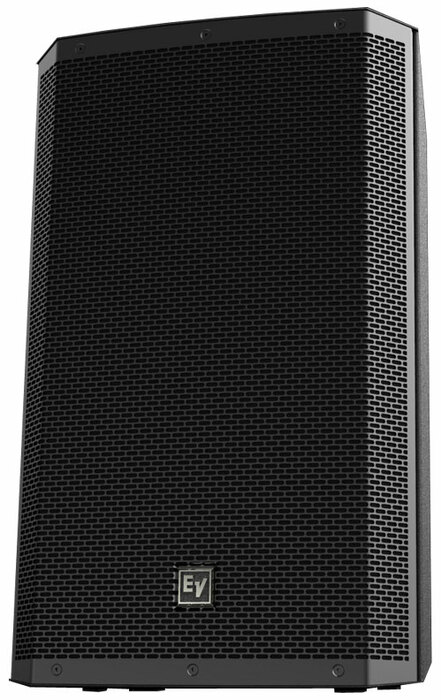

Electro-Voice ZLX-15 15" 2-Way Passive Loudspeaker Image 1
Electro-Voice ZLX-15 15" 2-Way Passive Loudspeaker Image 2
Electro-Voice ZLX-15 15" 2-Way Passive Loudspeaker Image 3
WFcftKsan1k?rel=0
1 Video
Electro-Voice ZLX-15 15" 2-Way Passive Loudspeaker
Our Price: $549.00
List Price: $980.00
You save 44%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$16/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Enhanced low-end performance in a portable, professional format.

Featuring custom drivers housed in a breakthrough new cabinet design, the versatile and compact ZLX-15 makes Electro-Voice’s legendary sound quality and rugged reliability more accessible than ever before. With an extended low-frequency range, the ZLX-15 offers the ultimate combination of performance and portability with a 15” woofer and 1-1/2” high-frequency titanium compression driver. Its wide 44Hz – 20kHz frequency range delivers rich full-range sound, and its 250/1000W continuous/peak power handling means plenty of volume for larger rooms and stages. It boasts lightweight, super-durable composite construction with unique hi-lo grip design for effortless pole mounting and portability. The patented split-baffle design ensures superior driver time alignment and enhanced sonic impact and intelligibility.

Features

  • 250/1000W continuous/peak power handling
  • 90°H x 60°V coverage pattern
  • 44Hz - 20kHz frequency range
  • EVS-15L LF driver, DH-1K titanium HF driver
  • 126dB max SPL

Specifications

  • Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB
  • Frequency Range: 44 Hz - 20 kHz
  • Maximum SPL: 126 dB
  • Nominal Impedance: 8 ohm
  • Power Handling (Continuous / Peak): 250 / 1,000 Watts
  • Frequency Response: 56 Hz - 18 kHz
  • Recommended High-Pass Frequency: 40 Hz
  • Maximum SPL (1% THD): 0 dB
  • Coverage (Nominal -6 dB) H: 90 °
  • Coverage (Nominal -6 dB) V: 60 °
  • LF Transducer: EVS-15L, 380 mm (15 in) Woofer
  • HF Transducer: DH-1K
  • Crossover Frequency: 1,700 Hz
  • Minimum Impedance: 7 ohm
  • Connector Type: Dual NL4
  • Enclosure Material: Polypropylene
  • Grill: 18 Gauge Steel with Black Powder Coat
  • Dimensions (H x W x D): 685 mm x 423 mm x 383 mm (26.97" x 16.65" x 15.08")
  • Weight Net: 16.6 kg (36.6 lbs.)
  • Shipping Weight: 22 kg (48.5 lbs.)
