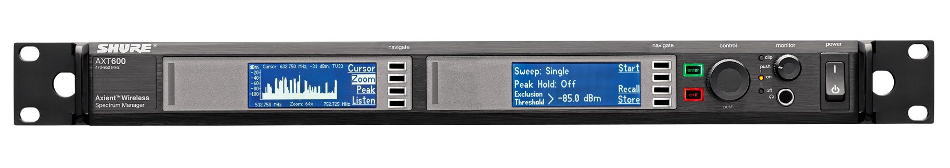

Shure AXT600
Axient Wide-Band Spectrum Manager

OUR PART #  AXT600US

Our Price: $4,999.00
List Price: $6,249.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Shure AXT600 Axient Spectrum Manager delivers wide-band UHF spectrum scanning, spectrum analysis and compatible frequency coordination — all in a single rack unit. By scanning and displaying the RF environment, calculating compatible frequencies and deploying them to Axient receivers easily and efficiently, the Axient Spectrum Manager offers a sophisticated interface and precise information for allocating the best available frequencies to any number of wireless channels. For added flexibility in complex RF environments, the AXT600 also monitors and ranks a live list of backup frequencies — and can deploy them instantly and automatically when an Axient Receiver detects interference. Together with Shure Wireless Workbench 6 software, Axient Spectrum Management tools offer a rich graphical interface for viewing the RF world and choosing the optimal frequencies for all of an event’s wireless channels.

Shure AXT600 Features:

  • Coordination:
    • Wideband Scanning:
      • Scans the global UHF spectrum (470-952) MHz in less than 1 minute
      • Scan data is directly matched to Axient receiver parameters and performance; the scan results are stored for later analysis
    • On board frequency calculator generates compatible frequencies for all networked Shure wireless devices
    • Frequency lists can be exported to the Spectrum Manager from Wireless Workbench 6
    • Networked hardware programming simplifies and streamlines setup of multi-channel Axient and UHF-R systems
  • Advanced User Controls:
    • Adjustable threshold excludes frequencies above a selected noise level
    • Known TV channels or frequency ranges to avoid can be input quickly and easily
    • Viewable and editable frequency list
    • Analysis of a modified frequency list to verify compatibility
  • Analysis:
    • Backup frequency monitoring continuously evaluates backup frequencies in real time
    • Backup frequency ranking evaluates the quality of backup frequencies and determines which are most viable for use
    • Frequency list management maintains knowledge of all devices on the network
    • On-demand frequency server delivers a clean, compatible frequency when a change is required
  • Visibility:
    • Spectrum display provides a front-panel spectrum plot with Cursor, Zoom and Peak Find
    • Backup frequency display quantifies backup frequencies ready for use by Axient channels
    • “Listen” feature demodulates FM signals for headphone monitoring and displays real-time signal strength
  • Connectivity:
    • RF signal cascade connects up to 5 receivers using 1 RF signal source
    • 2 Ethernet ports allow convenient computer and ShowLink® Access Point connection
    • IEC in/out power ports enable daisy-chaining of AC power

Shure AXT600 Specifications:

  • RF Tuning Frequency Range:  470 - 865, 925 - 952 MHz
  • RF Tuning Step Size:  25, 200, 1000 kHz
  • Scan Time:  The spectrum manager scans the entire RF tuning frequency range in 64 seconds using 8 scanning modules in parallel. Scan time per 60 MHz may be less for specified ranges that allow scanning modules to work in parallel.
    • Step Sizes/Scan Times:
      • 25 kHz, 48 seconds maximum scan time per 60 MHz
      • 200 kHz*, 7 seconds maximum scan time per 60 MHz
      • 1000 kHz*, 1 second  maximum scan time per 60 MHz
      • *NOTE:  Available only with WWB6 control
  • Noise Floor:
    • 25 kHz:  -110 dBm
    • 200 kHz:  -100 dBm
    • 1000 kHz:  -90 dBm
  • Image Rejection:  > 110 dB, typical
  • Spurious Response:  < -100 dBm, typical
  • Ultimate Quieting:  > 90 dB, A-weighted
  • Dimensions (HxWxD):  1.7" x 19.0" x 14.4" (44mm x 483mm x 366mm)
  • Weight:  12.0 lbs (5.5 kg)
  • Housing:  Steel; Extruded aluminum
  • Power Requirements:  100 to 240 V AC, 50 - 60 Hz
  • Current Drain:  0.8 A RMS (reference at 120 V AC)
  • Operating Temperature Range:  0°F to 145°F (-18°C to 63°C)
  • RF Input:
    • Connector Type:  BNC
    • Configuration:  Unbalanced, active
    • Maximum Input Level:  -20 dBm
    • Impedance:  50 Ohms
    • Bias Voltage:  12 V DC, 150 mA (300 mA maximum)
  • Cascade Output:
    • Connector Type:  BNC
    • Configuration:  Unbalanced, active
    • Impedance:  50 Ohms
    • Insertion Loss:  < 5 dB
  • Monitor Audio Output:
    • Audio Frequency Response:  40 Hz - 18 kHz, +/- 3 dB
    • Configuration:  Unbalanced mono, 1/4" (will drive stereo phones)
    • Impedance:  50 Ohms
    • Maximum Signal Level (45 kHz max. deviation):  1 W @ 63 Ohms
  • Pin Assignments:
    • Tip:  Audio +
    • Ring:  Audio -
    • Sleeve:  Ground
  • Networking:
    • Power Over Ethernet (PoE):  50 V DC, Class 1
    • Network Interface:  Dual Port Ethernet 10/100
    • Network Addressing Capability:  DHCP or Manual IP Address

Shure AXT600
Axient Wide-Band Spectrum Manager

OUR PART #  AXT600US

Product Information:

The Shure AXT600 Axient Spectrum Manager delivers wide-band UHF spectrum scanning, spectrum analysis and compatible frequency coordination — all in a single rack unit. By scanning and displaying the RF environment, calculating compatible frequencies and deploying them to Axient receivers easily and efficiently, the Axient Spectrum Manager offers a sophisticated interface and precise information for allocating the best available frequencies to any number of wireless channels. For added flexibility in complex RF environments, the AXT600 also monitors and ranks a live list of backup frequencies — and can deploy them instantly and automatically when an Axient Receiver detects interference. Together with Shure Wireless Workbench 6 software, Axient Spectrum Management tools offer a rich graphical interface for viewing the RF world and choosing the optimal frequencies for all of an event’s wireless channels.

Shure AXT600 Features:

  • Coordination:
    • Wideband Scanning:
      • Scans the global UHF spectrum (470-952) MHz in less than 1 minute
      • Scan data is directly matched to Axient receiver parameters and performance; the scan results are stored for later analysis
    • On board frequency calculator generates compatible frequencies for all networked Shure wireless devices
    • Frequency lists can be exported to the Spectrum Manager from Wireless Workbench 6
    • Networked hardware programming simplifies and streamlines setup of multi-channel Axient and UHF-R systems
  • Advanced User Controls:
    • Adjustable threshold excludes frequencies above a selected noise level
    • Known TV channels or frequency ranges to avoid can be input quickly and easily
    • Viewable and editable frequency list
    • Analysis of a modified frequency list to verify compatibility
  • Analysis:
    • Backup frequency monitoring continuously evaluates backup frequencies in real time
    • Backup frequency ranking evaluates the quality of backup frequencies and determines which are most viable for use
    • Frequency list management maintains knowledge of all devices on the network
    • On-demand frequency server delivers a clean, compatible frequency when a change is required
  • Visibility:
    • Spectrum display provides a front-panel spectrum plot with Cursor, Zoom and Peak Find
    • Backup frequency display quantifies backup frequencies ready for use by Axient channels
    • “Listen” feature demodulates FM signals for headphone monitoring and displays real-time signal strength
  • Connectivity:
    • RF signal cascade connects up to 5 receivers using 1 RF signal source
    • 2 Ethernet ports allow convenient computer and ShowLink® Access Point connection
    • IEC in/out power ports enable daisy-chaining of AC power

Shure AXT600 Specifications:

  • RF Tuning Frequency Range:  470 - 865, 925 - 952 MHz
  • RF Tuning Step Size:  25, 200, 1000 kHz
  • Scan Time:  The spectrum manager scans the entire RF tuning frequency range in 64 seconds using 8 scanning modules in parallel. Scan time per 60 MHz may be less for specified ranges that allow scanning modules to work in parallel.
    • Step Sizes/Scan Times:
      • 25 kHz, 48 seconds maximum scan time per 60 MHz
      • 200 kHz*, 7 seconds maximum scan time per 60 MHz
      • 1000 kHz*, 1 second  maximum scan time per 60 MHz
      • *NOTE:  Available only with WWB6 control
  • Noise Floor:
    • 25 kHz:  -110 dBm
    • 200 kHz:  -100 dBm
    • 1000 kHz:  -90 dBm
  • Image Rejection:  > 110 dB, typical
  • Spurious Response:  < -100 dBm, typical
  • Ultimate Quieting:  > 90 dB, A-weighted
  • Dimensions (HxWxD):  1.7" x 19.0" x 14.4" (44mm x 483mm x 366mm)
  • Weight:  12.0 lbs (5.5 kg)
  • Housing:  Steel; Extruded aluminum
  • Power Requirements:  100 to 240 V AC, 50 - 60 Hz
  • Current Drain:  0.8 A RMS (reference at 120 V AC)
  • Operating Temperature Range:  0°F to 145°F (-18°C to 63°C)
  • RF Input:
    • Connector Type:  BNC
    • Configuration:  Unbalanced, active
    • Maximum Input Level:  -20 dBm
    • Impedance:  50 Ohms
    • Bias Voltage:  12 V DC, 150 mA (300 mA maximum)
  • Cascade Output:
    • Connector Type:  BNC
    • Configuration:  Unbalanced, active
    • Impedance:  50 Ohms
    • Insertion Loss:  < 5 dB
  • Monitor Audio Output:
    • Audio Frequency Response:  40 Hz - 18 kHz, +/- 3 dB
    • Configuration:  Unbalanced mono, 1/4" (will drive stereo phones)
    • Impedance:  50 Ohms
    • Maximum Signal Level (45 kHz max. deviation):  1 W @ 63 Ohms
  • Pin Assignments:
    • Tip:  Audio +
    • Ring:  Audio -
    • Sleeve:  Ground
  • Networking:
    • Power Over Ethernet (PoE):  50 V DC, Class 1
    • Network Interface:  Dual Port Ethernet 10/100
    • Network Addressing Capability:  DHCP or Manual IP Address
