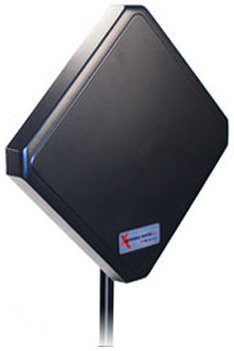

Kaltman Creations IWxCPA
Circular Polarized Antenna

OUR PART #:  IWXCPA1

The new IWxCPA antenna uses advanced circular polarization technology which produces a ‘drop-out free’ transmitter and receiver combination that is never out of phase.
Learn More
Our Price: $285.45
List Price: $290.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kaltman Creations IWxCPA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The new IWxCPA antenna uses advanced circular polarization technology which produces a ‘drop-out free’ transmitter and receiver combination that is never out of phase. This technology, along with the antenna’s directional attributes, helps to guarantee as reliable of an RF signal link as possible.

Traditional paddle and rod antennas used for wireless microphones are either horizontally or vertically polarized (usually vertically, as a mic is usually vertically oriented). When a microphone transmitting antenna changes its orientation in reference to the receiving antenna – as wireless mic’s and belt pack transmitters always do – the phase relationship changes.  The new IWxCPA antenna uses advanced circular polarization technology which produces a ‘drop-out free’ transmitter and receiver combination that is never out of phase.  The antenna incorporates directional, Circular Polarization (CP) technology for both receiving and transmitting pro-audio wireless applications. This antenna will reduce interference, reduce drop outs, help eliminate ‘swishing’ noise artifacts, improve RF signal to to noise, and enhance reception of signals propagated through and around objects.

The antenna design is unique in many ways, the most obvious being its low-visibility flat panel sign. Unlike paddle and helical antennas that point into the performance area and, therefore, expose their large sides to the audience, the theatre black IWxCPA panel faces the performance area leaving only a 1.3 inch edge visible to the audience.

New drop-out free technology (left) and old technology subject to drop-outs (right):

Specifications:

  • Frequency Range: 470MHz – 960MHz
  • Gain: 6.5 dBic
  • Maxium VSWR: 1:4:1
  • 3 dB Beamwidth – Azimuth: 65°
  • Front to Back Ratio: 20 dB
  • Polarization: Circular right-hand or circular left-hand
  • Maxium Input Power: 3 Watts
  • Input Impedence: 50 Ohms
  • Axial Ratio: 1 dB
  • Weight: 2.5 lbs.  (1.134 kg)
  • Mechanical Size: 10.2” x 10.2” x 1.32” (259 x 259 x 34 mm)
  • Color: Theatre Black
  • Antenna Connection: Coax Pigtail BNC(F)
  • Radome: High Strength PC
  • Mount Style: Mic Stand Swivel/Threaded Stud
  • Temperature Operational: -25°C to 70°C

Click to download
