Allen & Heath ME-U 10 Port PoE Monitor HUB with Onboard Network

OUR PART #: ME-U MFR #: AH-ME-U

Copied to clipboard

The ME-U from Allen & Heath is a touring grade, 10 port PoE hub providing power and audio to multiple ME-1 and/or ME-500 personal mixers. ...Read more

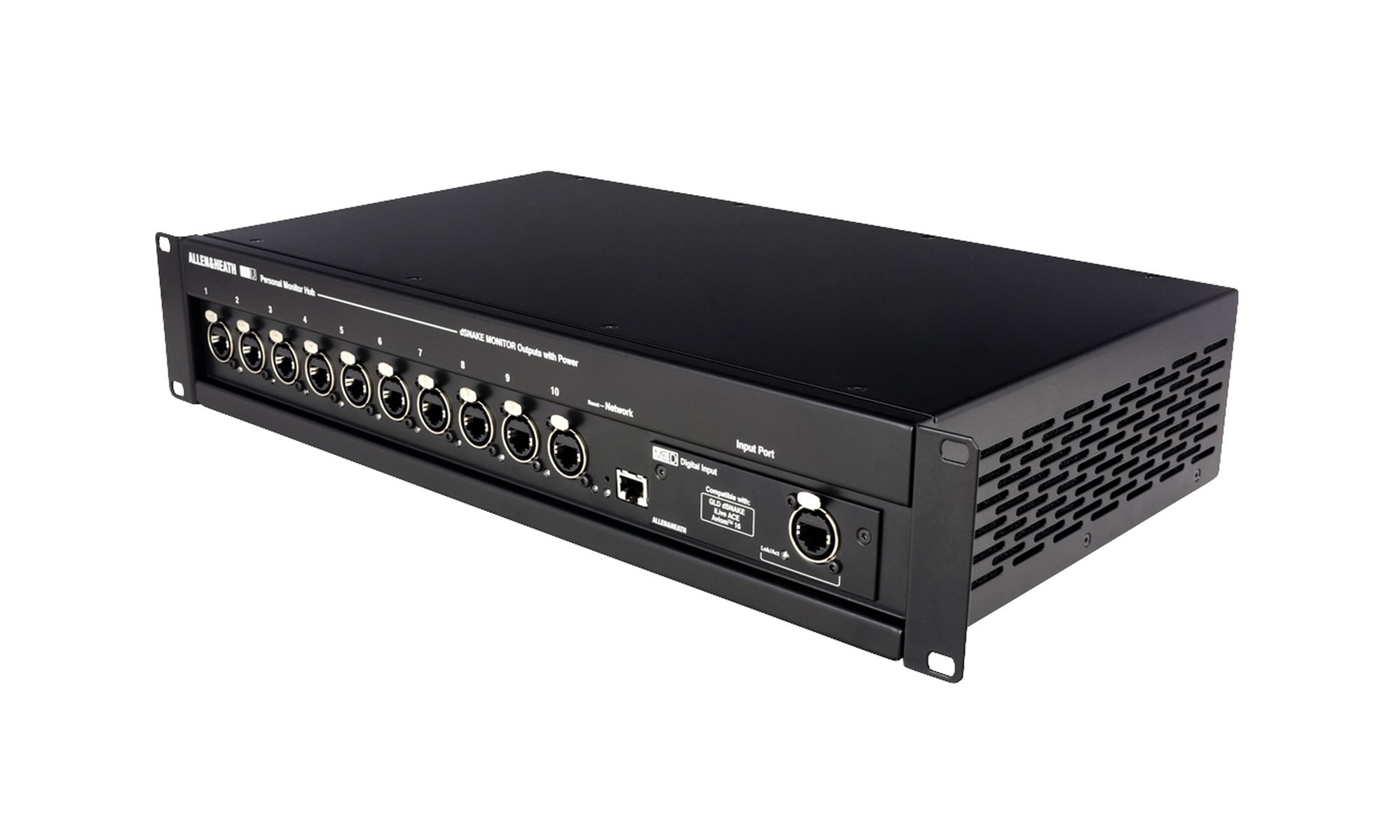

Allen & Heath ME-U 10 Port PoE Monitor HUB With Onboard Network Image 1
Allen & Heath ME-U 10 Port PoE Monitor HUB With Onboard Network Image 2
Allen & Heath ME-U 10 Port PoE Monitor HUB With Onboard Network Image 3
Allen & Heath ME-U 10 Port PoE Monitor HUB With Onboard Network
Our Price: $1,999.99
List Price: $2,499.99
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
More on Order! Item usually available to ship in 5-9 Business days. Place your order now to reserve your place in line. Call our Sales Pros at 800-356-5844.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The ME-U from Allen & Heath is a touring grade, 10 port PoE hub providing power and audio to multiple ME-1 and/or ME-500 personal mixers. ME-U’s default input card allows seamless integration with Allen & Heath's dLive, SQ and Qu mixers (sold separately). Fitting a Dante® or MADI option card (sold separately) to the unit allows users of other pro digital mixer brands to feed up to 40 sources to ME-1s, or up to 16 sources to ME-500s.

When to use ME-U

If you’re working with Allen & Heath digital consoles, the ME-U offers you the option to take your ME system on up to the next level of professionalism, eliminating the clutter of separate power supplies for each directly-connected ME-1 or ME-500 unit and providing a high-quality, road-proven alternative to standard PoE hubs. If you’re using other console brands, ME-U is your gateway to the ME eco-system, with MADI, Dante and Waves SG option cards (all sold separately) allowing a digital feed of up to 40 sources from third-party systems.

Features

  • 10 ports with locking Ethercon connectors
  • Each port provides power + audio to a ME-1 or ME-500
  • Link 2 hubs for more ports
  • Touring grade build quality
  • 2U rack or desk mounting
  • Connected ME-1s automatically pick up channel names from SQ or dLive mixers
  • Browser-based setup of unit name and IP address, and manual entry of channel names

Specifications

  • Inputs: 40 inputs (Cat5), Stereo Aux, Ambient Mic
  • Outputs: 2x Stereo (Line or Headphones), Mono Line Out
  • Input Control: Level, Mute, Pan, Solo, Trim All
  • Master Control: Level, Mute, 3-band EQ, Limiter
  • Group Control: Level, Mute, Level/Pan for sources within Group
  • Groups: 16, Up to 40 sources assignable
  • Presets: 16, Store input Levels, Mutes, Pans, Key assign, Names, Group sources
  • Config: Stores Setup and all Presets
  • Names: Channels, Keys, Unit, Presets, Config
  • USB Data Port: Individual Presets or Config transfer, Firmware update
  • Cat5 Audio and PoE: Link In and Link Out, locking etherCON connectors
  • Stereo Out:
    • Stereo ¼" and 3.5mm Jacks
    • Headphones 300 mW + 300 mW into 100 Ω load
    • Max +21 dBu
  • Mono Output:
    • Balanced TRS Jack
    • Nominal 0 dBu, Max +18 dBu
  • Aux Input:
    • Stereo 3.5mm Jack
    • Nominal -8 dBu, Max +10 dBu
    • Input Impedance > 10 kΩ
  • AD/DA Conversion: 24-bit Delta/Sigma, 48 kHz
  • Residual Output Noise: -95 dBu (Level down, 20 Hz - 20 kHz)
  • Frequency response (+0/-1 dB): 10 Hz - 20 kHz
  • Mains Power Unit (included): 100-240 VAC, 50/60 Hz in, 12 VDC 1.25 A out
  • Power over Cat5 cable (PoE): 10 W (Requires 13 W from PoE hub)
  • Dimensions and Weights:
    • Width x Depth x Height x Weight: 19” x 10” x 3.6” (483 x 253 x 92 mm) x 10.1lbs (4.6kg)
  • NOTE: further information can be found within the items located under the "Documentation" tab above.
