OUR PART # AO4S-192-AIO
Works with: HDSPe AIO, HDSP 9632

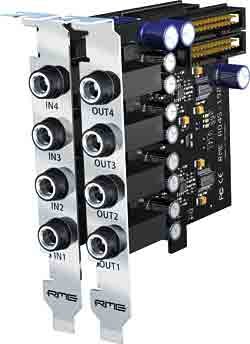

*Includes output card only, input card is also pictured above.
This option for the HDSP 9632 and HDSPe AIO is an analog expansion board, designed as bracket with 4 stereo TRS jacks each. it provides four servo-balanced outputs. With this a maximum of 6 (including the stereo I/O of the card) outputs can be achieved.
The converters offer the same performance as the on-board stereo analog I/O of the HDSPe AIO: up to 192 kHz, balanced connection and the choice of three different reference levels, selected in the Settings dialog.
This module can be used single or in combination. The display of the channels in TotalMix changes accordingly.
Note: AI4S-192 and AO4S-192 (without the suffix AIO) do work only with the HDSP 9632. The current Expansion Boards with the suffix AIO work with both cards.
