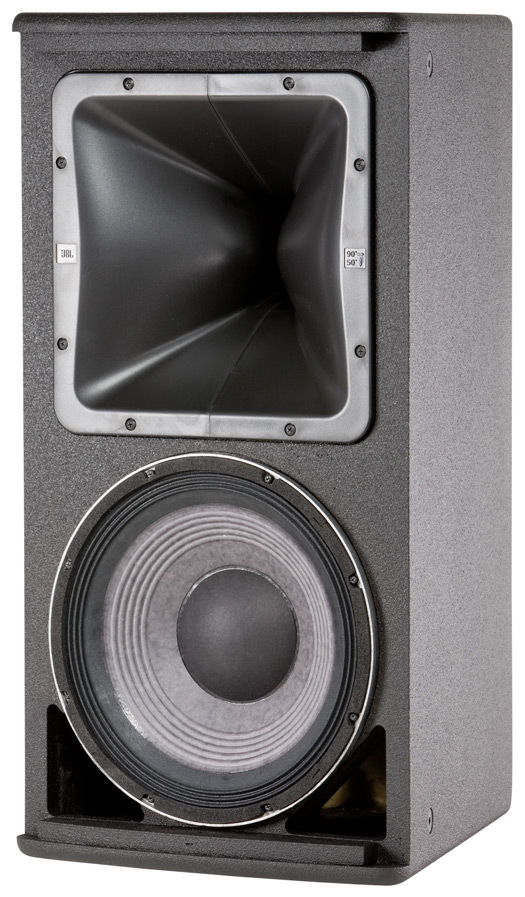

JBL AM7212/95 [USED ITEM]
12" High Power 2-Way Loudspeaker with Rotatable Horn

OUR PART #:  AM7212/95-BLA-RST-01

The   JBL AM7212/95 is a high power, lightweight, 2-way...
Learn More
Sale Price: $388.48
List Price: $2,399.00
You save 84%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL AM7212/95 [USED ITEM]
Qty:
In Stock
Similar Products

The  JBL AM7212/95 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5") exit, 75 mm (3") voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

NOTE: This is a USED item. It is used and may have minor cosmetic damage, but is guaranteed to be in proper working order.

JBL AM7212/95 Features:

  • 90° x 50° Coverage
  • 2262H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable wave guide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable

JBL AM7212/95 Specifications:

  • Frequency Range ( –10 dB): 36 Hz - 20 kHz
  • Frequency Response ( ± 3 dB): 42 Hz - 18 kHz
  • Coverage: 90° x 50° horn
  • LF Driver: 2262H
  • HF Driver: 2432H
  • System Type: 12" Two - Way, High Power, Full - Range
  • Dimensions: 28" H x 14.5" W x 18" D (711 x 369 x 458 mm)
  • Weight: 23.1 kg (51 lbs)
  • Directivity Factor (Q): 11.1
  • Directivity Index (DI): 10.4 dB
  • Crossover Modes: Bi-amp/Passive switchable
  • Passive Crossover Frequency: 1.4 kHz
  • Transducer Power Rating (AES):
    • LF: 1000 W (4000 W peak), 2 hr
    • 700 W (2800 W peak), 100 hrs
    • HF: 100 W (400 W peak), 2 hrs
  • Long-Term System Power Rating (IEC): Passive mode: 600 W (2400 W peak), 100 hrs
  • Maximum SPL (dB-SPL, 1W @ 1m)
    • Bi-amp mode:
      • LF: 126 dB-SPL cont avg (132 dB peak)
      • HF: 133 dB-SPL cont avg (139 dB peak)
    • Passive mode: 123 dB-SPL cont avg (129 dB peak)
  • System Sensitivity (1W @ 1m): Passive mode: 95 dB SPL
  • Nominal Impedance: 8 ohms
