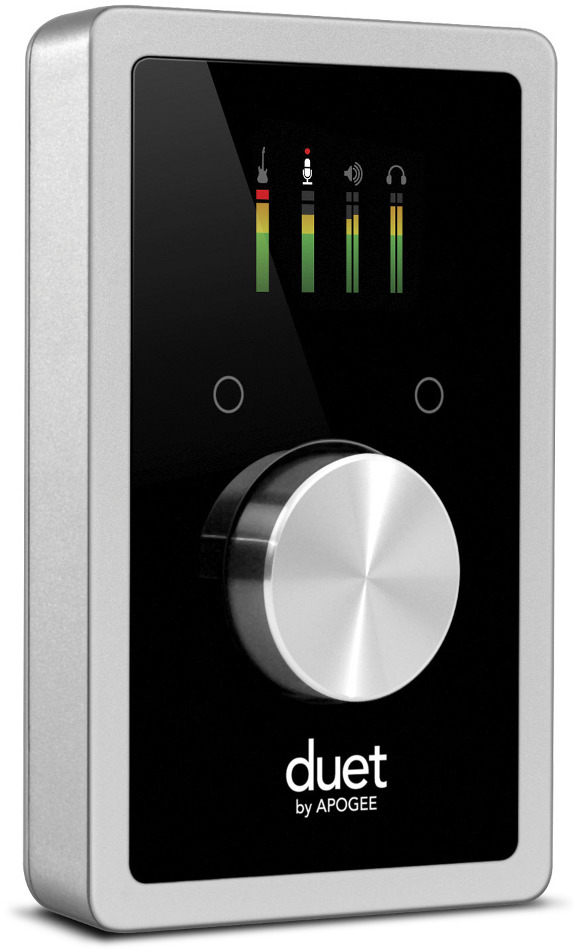

Apogee Duet
2x4 USB Audio/MIDI Interface for iOS & Mac with I/O Breakout Cable


The Apogee Duet is an audio interface, headphone amplifier, and MIDI interface designed to help you create professional recordings on your iPod touch, iPhone, iPad, or Mac.
Learn More
Our Price: $595.00
Write the first review.
Apogee Duet
In Stock

The Apogee Duet is an audio interface, headphone amplifier, and MIDI interface designed to help you create professional recordings on your iPod touch, iPhone, iPad, or Mac. With Apogee's renowned digital audio conversion and mic preamps, Duet is a great way to capture your music with incredible dimension and detail.

The Duet for iPad and Mac features special circuitry designed to deliver professional performance for iPad use along with low-latency USB 2.0 performance for Mac. And with the addition of MIDI I/O, you can connect and power a Core MIDI-compatible keyboard/controller while using Duet with your iPad or iOS device.

Now compatible with Windows
Apogee ONE, Duet, & Quarter USB Audio Interfaces are now compatible with Windows as well.

Apogee Duet Includes:

  • Duet Interface
  • Breakout Cable with
    • 2x Combination XLR / 1/4" Mic/Instrument Inputs
    • 2x Balanced 1/4" Line Outputs
  • USB Cable
  • Universal Power Adapter for US, UK and EU
  • Quick Start Guide
  • Software download and installation instructions

Apogee Duet Features:

  • First professional stereo audio interface for iPad
  • Direct digital connection to iPod touch, iPhone, iPad
  • Works with iPhone 5, iPad (4th generation), iPad mini
  • Works with GarageBand, Auria, MultiTrack; Any Core Audio compatible app on iOS
  • Works with GarageBand, Logic, Pro Tools, Ableton; Any Core Audio compatible app on Mac
  • Low latency monitoring, complete input/output control with Apogee's Maestro software (iOS & Mac)
  • MIDI input/output (USB-A type connector)
  • DC power supplies charge to iPod touch, iPhone or iPad
  • USB 2.0 audio with 24-bit/192kHz A/D and D/A conversion
  • 2 Analog inputs with world-class mic preamps and selectable 48v phantom power
  • 2 Balanced analog line outputs
  • 1 Independent 1/4” stereo headphone output
  • Legendary Apogee sound quality
  • Designed in California - Made in the U.S.A.

Apogee Duet Specifications:

  • System Requirements:
    • Mac OS:
      • Computer:  Intel Mac 1.5GHz or faster
      • Memory:  2 GB RAM minimum, 4 GB recommended
      • OS:  10.6.8, 10.7.5 or greater
      • Connection and power:  Any available USB port on a Mac
      • USB bus powered; DC power optional (DC power supply included)
    • iOS:
      • iOS version:  6 or greater
      • Connection:  30-pin or Lightning connector (sold separately)
      • DC power required (DC power supply included)
      • iOS device compatibility (Lightning connector):
        • iPod Touch (5th gen), iPod Touch (4th gen)
        • iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5
        • iPhone 4s, iPhone 4
        • iPad Air 2, iPad Air, iPad (4th gen), iPad (3rd gen), iPad 2
        • iPad Mini 3, iPad Mini 2, iPad Mini
  • Compatible Software:
    • Mac:
      • Any Mac Core Audio compatible application
      • Recommended apps: Logic, GarageBand, MainStage, Final Cut, Pro Tools, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo
    • iOS:
      • Any iOS Core Audio compatible app. Recommended apps: GarageBand, Auria
  • General:
    • USB 2.0 Mac audio interface
    • 2 analog inputs: Combination Line (balanced +20dBu max)
    • Mic/Instrument (+14dBu max)
    • 4 analog outputs:
      • Balanced line outputs, +20 dBu maximum output level
      • 1 Independent 1/4" stereo headphone output
    • 2 Microphone preamps with up to 75dB of gain
    • A/D and D/A conversion at 24-bit/192kHz
    • Top panel high resolution OLED display
    • Multi-function controller knob
    • Two assignable top panel touchpads:
      • Mute speakers, headphones or all outputs
      • Assign headphones to outputs 1-2, 3-4 or low latency mixer
      • Dim speakers, headphones or all outputs
      • Sum to mono speakers, headphones or all outputs
      • Selectable 48v phantom power, Soft Limit and phase invert
  • Mic Pre:
    • EIN:  128dB (un-weighted) @ 60dB, 150 Ohm input
    • Max input level:  +20dBu
    • Input impedance:  3 kOhm
  • Hi-Z:
    • Max input level:  14 dBu
    • Input impedance:  >2MOhm
  • A/D conversion:
    • Max input level (+4dBu ref):  +20dBu
    • Max input level (-10dBV ref):  +6dBV
    • Input impedance:  5 kOhm
    • Frequency response:  20 Hz -20 kHz: > +/-0.2dB (@ 44.1 kHz)
    • Relative THD + N:  -106dB (@ 96 kHz)
    • Dynamic Range:  114dB (A-weighted)
  • D/A Conversion:
    • Max output level (+4dBu ref):  +20dBu
    • Max output level (-10dBV ref):  +6dBV
    • Line output impedance:  90 Ohm
    • Max output level headphones:  19dBu
    • HPH output impedance:  30 Ohm.
    • Frequency response:  20 Hz -20 kHz: > ±0.05dB (@ 44.1 kHz)
    • Relative THD+N:  -113dB (@ 96 kHz)
    • Dynamic Range:  123dB (A-weighted)
