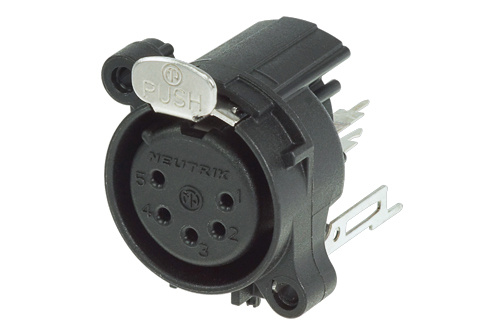

Neutrik NC5FAV
A-Series 5-Pin XLR-F Receptacle

OUR PART #:  NC5FAV

Neutrik's NC5FAV is a round plastic body XLR PCB mount panel connector.  These have the smallest size and highest packing density (23 mm between centers).
Learn More
Our Price: $3.47
List Price: $6.07
Save up to 52% when you order by quantity!
  • Buy 25: $3.14 each.
  • Buy 50: $3.02 each.
  • Buy 100: $2.91 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC5FAV
Qty:
Similar Products

Neutrik's NC5FAV is a round plastic body XLR PCB mount panel connector.  These have the smallest size and highest packing density (23 mm between centers).  Features fork-type contacts with gold plating in the contact area and tin plating in the PCB termination area.  UL recognized component.

Features:

  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel latch lock
  • Tulip type female contact
  • Polished contact areas and hard gold plating
  • Housing flammability UL94 V-0

Electrical Specifications:

  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 6 mO (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GO (initial)
  • Rated current per contact: 3 A
  • Rated voltage: 50 V
  • Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1

Mechanical Specifications:

  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: vertical PCB mount
  • Locking device: Latch lock
  • Mounting direction: rear
  • Chassis shape: A
  • Mounting: A-Screw

Material Specifications:

  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Stahl Ck67
  • Flange: Black Plastic

Environmental Specifications:

  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
