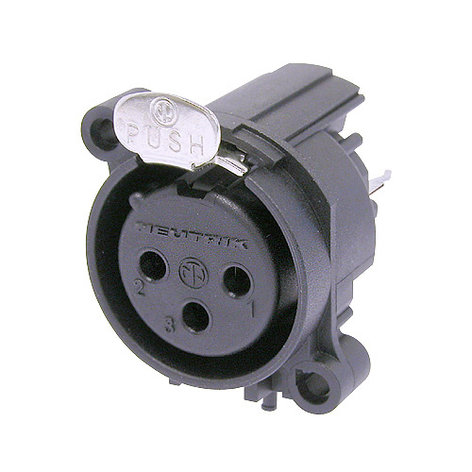

Neutrik NC3FAV A-Series 3-Pin XLR-F Receptacle

Neutrik's NC3FAV is a round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centers). Features hard gold plating and polished contact areas. UL recognized component.

Features:

• Smallest XLR receptacles, highest packing density
• Plastic housing, steel latch lock
• Tulip type female contact
• Polished contact areas and hard gold plating
• Housing flammability UL94 V-0

Specifications:

• Electrical Specifications:
  • Capacitance between contacts: = 4 pF
  • Contact resistance: = 6 mO (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GO (initial)
  • Rated current per contact: 6 A
  • Rated voltage: 50 V
  • Grounding Options: no grounding
• Mechanical Specifications:
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: vertical PCB mount
  • Locking device: Latch lock
  • Mounting direction: rear
  • Chassis shape: A
  • Mounting: A-Screw
• Material Specifications:
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6.6 25 % GR)
  • Locking element: Stahl Ck67
  • Flange: Black Plastic
• Environmental Specifications:
  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
