Lex DB20PC-SBPC 20A Powercon Quad Box to (2) NEMA 5-20 Duplex Receptacles

OUR PART #: DB20PC-SBPC MFR #: DB20PC-SBPC

Copied to clipboard

This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed. ...Read more

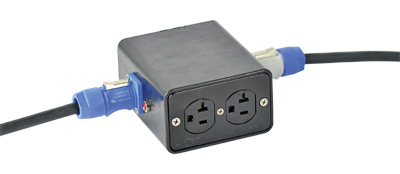

Lex DB20PC-SBPC 20A Powercon Quad Box To (2) NEMA 5-20 Duplex Receptacles Image 1
Lex DB20PC-SBPC 20A Powercon Quad Box To (2) NEMA 5-20 Duplex Receptacles
Our Price: $266.89
List Price: $298.85
You save 11%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$8/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed. The box enables the user to create receptacle stringers using extensions of various lengths.

20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, Quad Box Enclosure, PowerCON inlet to (2) NEMA 5-20, 20 Amp duplex receptacles. Feed Thru. NEMA 1 Indoor.

Features

  • Heavy-duty molded rubber enclosure is fully insulatedand resistant to shock, impact, corrosion
  • Compact and convenient way to place 20 Amp duplexreceptacles where they are needed
  • Feed thru option allows multiple boxes to be placed along the samefeed

Specifications

  • Rating: 20 Amp, Single Phase (H,N,G), 2Pole, 3 Wire, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 20 Amp, 2 Pole, 3 Wire, 120VAC, PowerCON inlet
  • Output: (2) NEMA 5-20, 20 Amp, 2 Pole, 3Wire, 120 VAC duplex receptacles
  • Feed Thru: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC,PowerCON outlet
  • Dimensions (LxWxH): 4.7” x 2.5” x4.2” (119 x 64 x 17 mm)
  • Approximate Weight: 1.5 lbs (0.7 kg)
