Lex Products Corp BNB2-3B
30 Amp Bento Box with Tail Input to NEMA Receptacles

OUR PART #:  BNB2-3B

Fed from 30 Amp power, this box provides NEMA 5-20, 20 Amp duplex receptacles for lights, audio equipment and tools for a wide range of applications.
Learn More
Our Price: $587.93
List Price: $717.85
You save 18%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp BNB2-3B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Fed from 30 Amp power, this box provides NEMA 5-20, 20 Amp duplex receptacles for lights, audio equipment and tools for a wide range of applications.

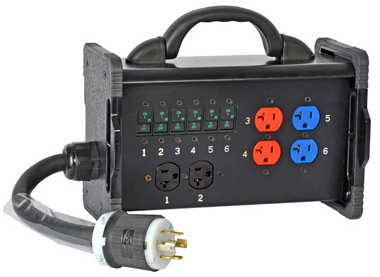

Bento Box®: 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Bento Enclosure, NEMA L21-30, 30 Amp inlet to (3) NEMA 5-20, 20 Amp color-coded duplex receptacles split wired for (6) 20 Amp circuits, Feed Thru, NEMA 1 Indoor.

Lex Products Corp BNB2-3B Edison Bento Box Features:

  • Hydraulic magnetic circuit breakeres help prevent nuisance tripping at higher temperatures
  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted flush for easy access and circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces

Lex Products Corp BNB2-3B Edison Bento Box Specifications:

  • Rating: 30 Amp, 3 Phase (H, H, H, N, G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) NEMA 21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking plug on 12 inch 10/5 SOW-A tail
  • Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3Wire, 120 VAC color-coded duplex receptacles split wired for (6) 20 Amp circuits
  • Feed Thru: (1) NEMA L21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire 120/208 VAC receptacle
  • Overcurrent Protection: (6) 20 Amp hydraulic magnetic branch-rated circuit breakers
  • Dimensions (LxWxH): 11.5" x 5.9" x 7.6" (292 x 150 x 193 mm)
  • Approximate Weight: 6.5 lbs (2.95 kg)
