Radio Design Labs D/S-CIJ3D
Stainless Steel Stere Audio Input Connector Plate


Our Price: $89.29
List Price: $119.43
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Radio Design Labs' D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

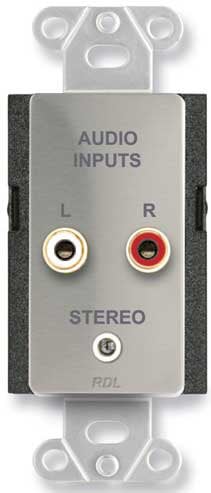

The D/S-CIJ3D is a complete unbalanced line-level audio input module.  The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources.  An input signal may be connected to either the phono jacks or to the mini-jack.  The inputs are balanced through audio transformers configured to reject induced hum.  A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kO or higher input impedance line-level module or equipment inputs.


  • Stereo Inputs to Stereo Outputs
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10 kO Equipment Input
  • Output Connections on Detachable Terminal Block


  • Input connectors (3): Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
  • Frequency response (line level): 50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
  • THD: <0.2% (1 kHz)
  • Output connector: Detachable terminal block
  • Dimensions:
    Height: 4.13 in. 10.49 cm
    Width: 1.7 in. 4.32 cm
    Depth: 2.15 in. 5.47 cm
  • Mounting Box Minimum Dimensions:
    Width: 1.80 in. 4.57 cm
    Depth: 1.75 in. 4.45 cm
  • Crosstalk: < -80 dB (1 kHz); < -60 dB (10 Hz to 20 kHz)
  • Ambient Operating Environment: 0° C to 55° C
