Soundcraft Si Expression 3 32-Channel Digital Live Sound Mixing Console

OUR PART #: SI-EXPRESSION-3 MFR #: 5035679

Copied to clipboard

Drawing on more than a decade of experience in the field of digital audio mixing, the Soundcraft® Si Expression exploits some of the newest DSP... ...Read more

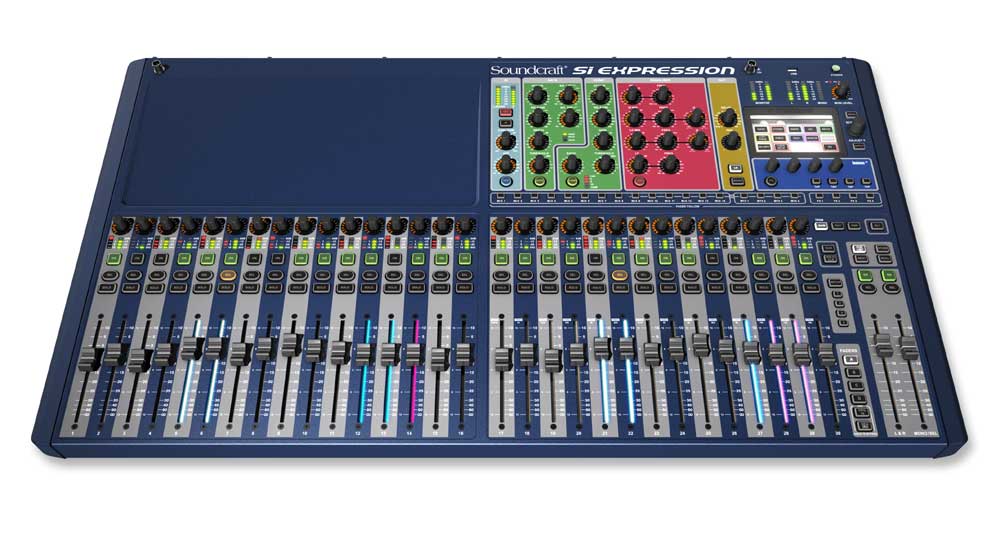

Soundcraft Si Expression 3 32-Channel Digital Live Sound Mixing Console Image 1
Soundcraft Si Expression 3 32-Channel Digital Live Sound Mixing Console Image 2
aaZIN-yohp0?rel=0
1 Video
Soundcraft Si Expression 3 32-Channel Digital Live Sound Mixing Console
Our Price: $4,389.00
List Price: $5,474.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$122/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Drawing on more than a decade of experience in the field of digital audio mixing, the Soundcraft® Si Expression exploits some of the newest DSP, component technology and manufacturing techniques. Each console in the range is identical in its feature set so your only choice is how many faders and local mic amps you want. With a range covering the super portable 19" rack mount Expression 1 to the Si Expression 3 with its 30+2 faders and 32 mic/line inputs there is a model to meet all needs.

All Si Expression consoles have busses, output processing and connectivity to match the versatility of the inputs; the 14 aux/group mixes can be configured as 14 mono mixes, 8 mono plus 6 stereo mixes or almost anything in between, whilst the 4 matrix mixes can be mono or stereo as needed. The bus and matrix mixes are complemented with four more mix busses dedicated to the internal Lexicon FX processors all in addition to the left, right and centre busses. Each bus mix features a compressor, 4 band EQ, BSS graphic EQ and delay always available all of the time. Output connectivity is comprehensive with all models featuring 16 balanced line outputs, headphone monitor out, AES out and of course the 64x64 option slot.

To complement the channel and bus processing all Si Expression consoles integrate four stereo Lexicon FX processors based on the MX400 providing a wealth of sounds, user adjustable parameters and dedicated tap-tempo keys. As the FX are hardware based, use of all the effects, even on the most demanding programmes does not affect other processing in any way and all dynamics, EQs, filters, delays, and GEQs remain available regardless what you are doing.

Flexible onboard and expansion I/O options ensure your Si Expression integrates effortlessly with other system components utilising any of the Si series option cards including AES, Firewire/USB/ADAT, AVIOM™, CobraNet™, BSS Digital Audio Bus (BLU Link), Dante™ CAT5 or optical MADI. The MADI card, as well as being an interface to multi-track recording systems or plug-in systems like Waves, enables linking the Si Performer to any of the Soundcraft or Studer stageboxes to extend the I/O power and flexibility. Adding a stagebox to an Si Expression actually increases the number of channels you can mix at once not just how many inputs you have available to choose from!

As you would expect from any Soundcraft digital mixer the facilities are extensive and include legendary audio quality courtesy of the latest generation EMMA™ DSP processor, the same DSP platform that has helped propel previous Soundcraft Si series consoles to fame. All this power united with reliability, flexibility and usability puts the Si Expression in a class of its own.

Soundcraft Si Expression 3 Features:

  • 32 mono mic inputs
  • 4 line inputs
  • Colour touch screen interface
  • 66 channels to mix possible
  • Pre/Post selection per input per bus
  • AES in and out
  • Global mode encoders
  • Soundcraft FaderGlow™
  • GEQ on every bus
  • 20 sub-group / aux busses
  • 4 FX busses
  • 8 Matrix busses
  • LR and C Mix busses
  • 4 Stereo Lexicon Effects engines
  • Delay on inputs and outputs
  • 4 Mute Groups
  • AES in and out
  • Freely assignable insert loops
  • Harman HiQnet integration
  • 64x64 channel option card slot

Soundcraft Si Expression 3 Specifications:

  • Frequency Response:
    • Mic Input to Line Output: +0/-1dB, 20Hz – 20kHz
    • Stereo Input to Master Output: +0.5/-0.5dB, 20Hz – 20kHz
  • T.H.D. & Noise (10Hz - 22kHz):
    • Mic In (min gain) to Bus Output: 0.006% @ 1kHz
    • Mic In (max gain) to Bus Output: 0.008% @ 1kHz
    • Stereo Input to Master Output: 0.005% @ 1kHz
  • Mic Input E.I.N.: 22Hz-22kHz bandwidth, unweighted: < -126dBu (150 Ohm source)
  • Residual Noise: Master output; no inputs routed, Mix fader @ 0dB: < -88dBu
  • CMRR: 80dB @ 1kHz Mic input
  • Sampling Frequency: 48kHz
  • Convertor Resolution: 24 bit
  • Latency: Mic Input to Bus output: < 1ms @48kHz
  • DSP Resolution: 40-bit floating point
  • Internal Clock:
    • Accuracy: < +/- 50ppm
    • Jitter: < +/- 5ns
  • Input & Output Levels:
    • Mic Inputs: +26dBu max
    • Stereo Inputs / Returns: +22dBu max
    • Bus Outputs: +22dBu max
  • Nominal Operating Level: 0dBu (-22dBFS)
  • Input & Output Impedances:
    • Mic Inputs: 6.8 kOhms
    • All other analogue Inputs: >10 kOhms
    • Line Outputs: < 75 Ohms
  • Oscillator: 20Hz to 20kHz Sine/Pink Noise, variable level
  • Filters: High Pass Filters: 22 Hz - 1 kHz
  • EQ (Inputs and Bus Outputs):
    • HF 800Hz-20kHz, +/-15dB shelving
    • Hi-Mid 22Hz-20kHz, +/-15dB,Q=0.3-6.0
    • Lo-Mid 22Hz-20kHz, +/-15dB, Q=0.3-6.0
    • LF 22Hz-500Hz, +/-15dB shelving
  • Metering:
    • 7x 8 segment meters for selected channel/bus, masters & monitors
    • Each fader strip offers 4 segment level plus gain reduction & Gate Closed status
  • Mains Voltage Operating Range: 90-264V, 47-63Hz, auto ranging
  • Mains Power Consumption: 200W
  • Temperature/Humidity Range:
    • Operating Temperature Range: 0°C – 45°C (32°F – 113°F)
    • Relative Humidity: 0% – 90%, non-condensing Ta=40°C (104°F)
    • Storage Temperature Range: -20°C – 60°C (-4°F – 140°F)
  • Dimensions: 36.5" W x 20.5" D x 6.7" H"
  • Weight: 46.2 lbs

NOTE:

The Si Expression 3 can work in conjunction with the DBX TR1616 digital network device and the DBX PMC16 16-channel personal monitors WITH the purchase of the BSS BLU-SI card. Please contact your Sales Representative for more information on this and other products.
